Reference Number: 133096

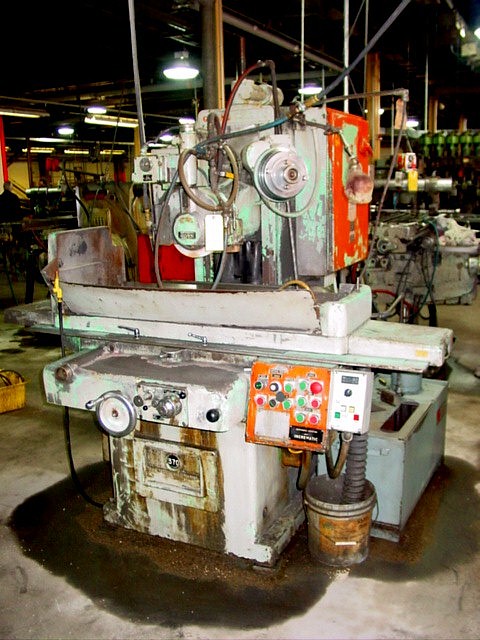

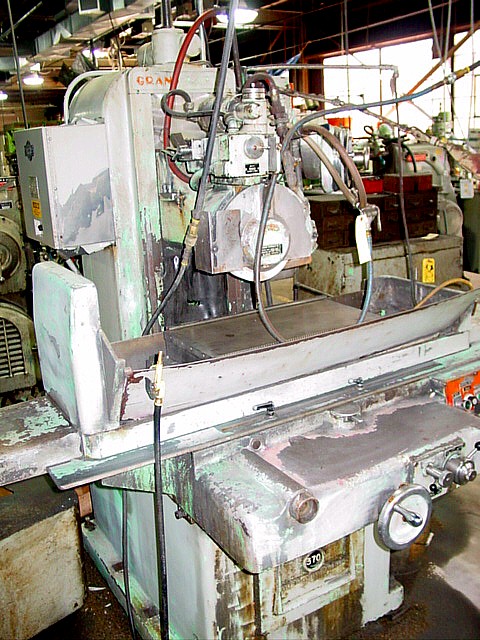

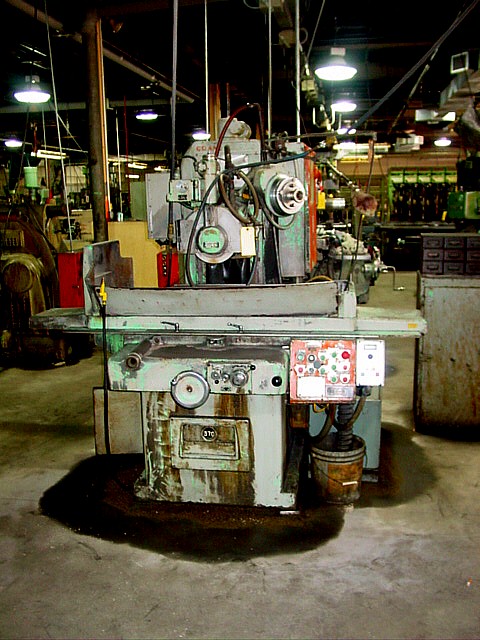

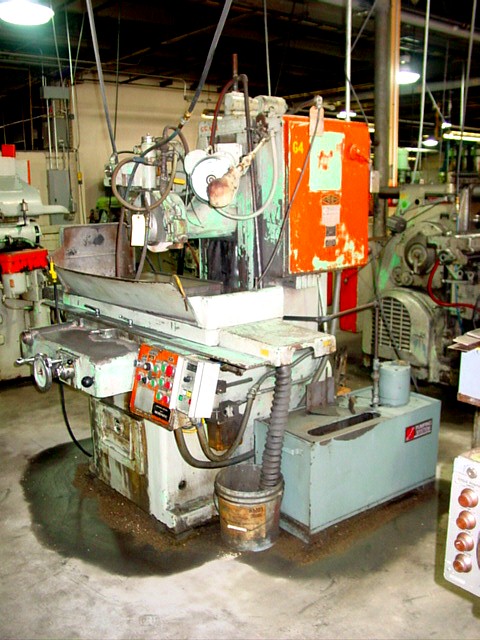

Price: On Request12" X 24" GALLMEYER & LIVINGSTON "GRAND RAPIDS"
PRECISION HYDRAULIC SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: 370 S/N: 370308 NEW: 1975
HYDRAULIC TABLE TRAVEL, LONGITUDINAL ............ 29-1/2"
HYDRAULIC TABLE TRAVEL, CROSS .................... 13-1/4"
WORKING SURFACE OF TABLE ....................... 12" X 24"
WHEEL SIZE ................................. 12" X 1" X 5"
GRINDING WHEEL SPEEDS (2) ................ 2000 & 2400 RPM
LONGITUDINAL TABLE SPEEDS .................. 3" - 150" IPM
AUTO CROSS FEED TO TABLE PER STROKE ........ 0.01" TO 1/2"
CONTINUOUS CROSS SPEED .......................... 120" IPM
AUTO INCREMENTAL DOWNFEED INCREMENTS .... 0.001" TO .0001"
MAX. TOTAL DOWNFEED FEED AMOUNT ................... 0.050"
VERTICAL MOVEMENT OF WHEELHEAD ....................... 16"
MAXIMUM DISTANCE FROM WHEEL TO TABLE (12" WHEEL) ..... 15"
APPROXIMATE FLOOR SPACE ..................... 109"W X 73"D
APPROXIMATE WEIGHT ............................. 5,700 LBS
EQUIPPED WITH:
AUTOMATIC "INCREMATIC" INCREMENTAL DOWNFEED
(SURFACE & PLUNGE)
AUTO WHEEL RETRACTION @ COMPLETION OF GRIND CYCLE
AUTO TABLE LOAD POSITION
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC LONGITUDINAL AND CROSS FEEDS
POWER RAPID CROSS POSITIONING
SADDLE LOCK
POWER "OVER-THE-WHEEL" WHEEL DRESSING W/AUTOMATIC
COMPENSATION FOR WHEEL WEAR
12" X 24" "ELECTRO-MATIC" FINE-DIVISION LONGITUDINAL
BAR POLE ELECTRO-MAGNETIC CHUCK
"ELECTRO-MATIC "NEUTROFIER II" VARIABLE HOLD NEUTROFIER
CONTROL, 300 WATT POWER SUPPLY (MODEL CEV3-6)
COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS
HYDRAULIC OVER-THE-WHEEL DRESSER W/AUTO WHEEL COMPENSATION
SELF-CONTAINED HYDRAULIC SYSTEM MOTOR
3 HP 3/60/230-460 VOLT SPINDLE DRIVE
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
