Reference Number: 133238

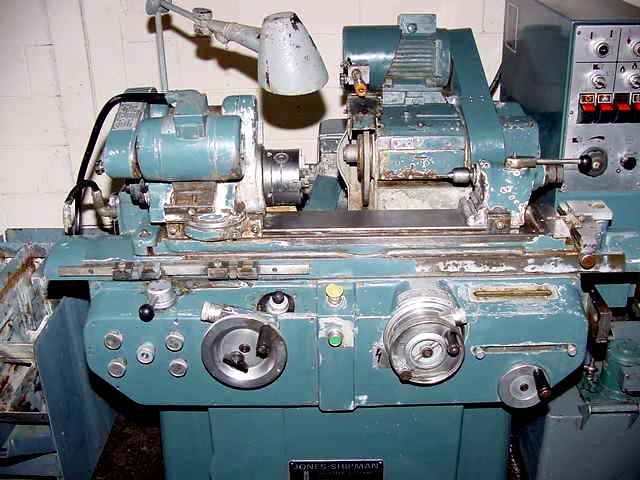

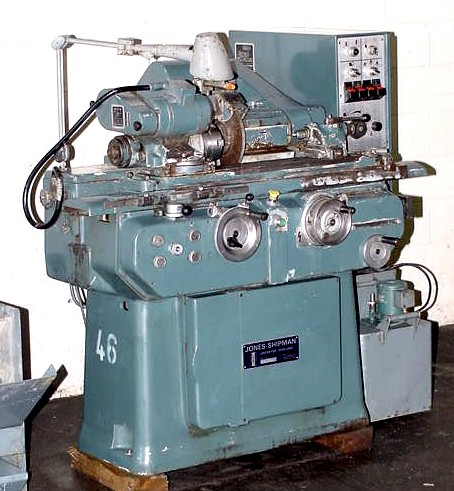

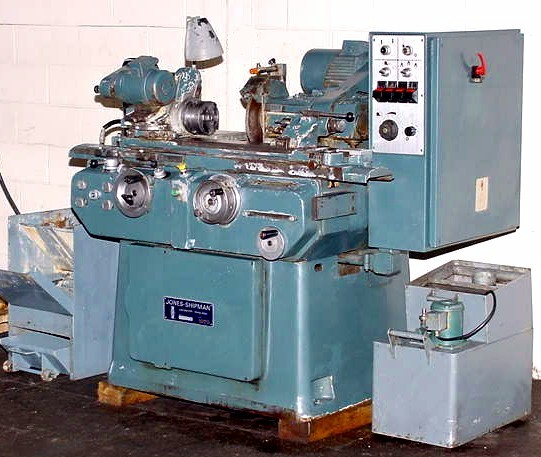

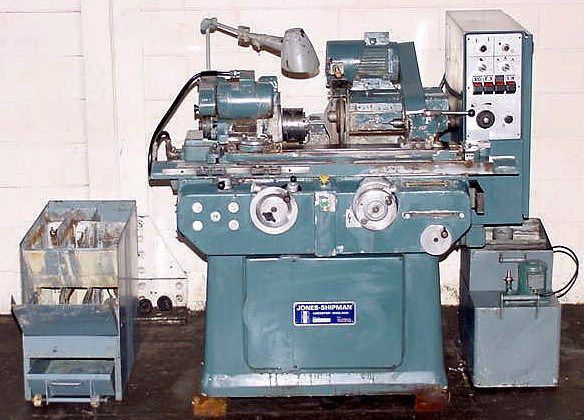

         6" X 12" JONES & SHIPMAN (MADE IN U.K.)
       "SUPER-PRECISION" PLAIN CYLINDRICAL GRINDER

        ****** METRIC HANDWHEEL GRADUATIONS ******

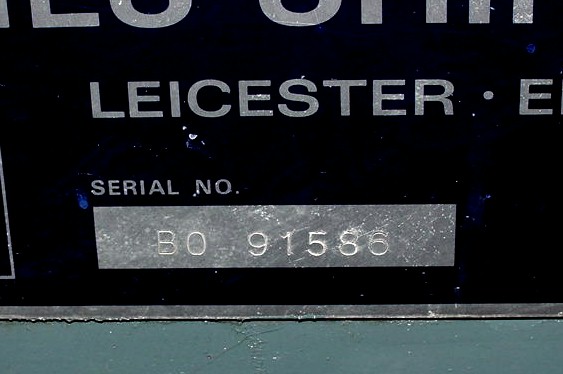

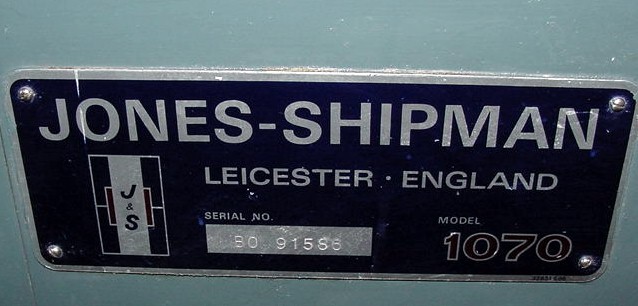

    MODEL: 1070      S/N: BO91586      NEW: 1976

 MAXIMUM SWING ..................................... 6"
 DISTANCE BETWEEN CENTERS .......................... 12"
 TABLE SWIVEL INCLUDED ANGLE:
   CLOCKWISE ................................ 20 DEGREES
   COUNTERCLOCKWISE ......................... 20 DEGREES
 LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 3" TO 240" IPM
 ONE REVOLUTION OF HANDWHEEL ...................... 3/4"
 FINE FEED KNOB GRADUATIONS .................... 0.0005"

 WHEELHEAD:
 TRAVERSE ON SCREW (MAX.) ........................... 3"
 POWER RAPID ADVANCE/RETRACTION STROKE .............. 1"
 CROSS FEED HANDWHEEL GRAD. .................... 0.0002"
 ONE DEPRESSION OF FINE FEED LEVER KNOB ........ 0.0001"
 AUTO INFEED @ TABLE REVERSALS ...... 0.0001" TO 0.0006"
 FEED @ REVERSAL OF TABLE,
  REDUCTION IN DIAMETER .............. 0.000002" TO .002"
 CONTINUOUS (PLUNGE) INFEED RATE ..... 0.0001" TO .0006"
 (PLUNGE) REDUCTION IN DIA. FROM ... 0.004" TO .072" IPM
 MAX. RANGE OF PLUNGE INFEED ... 0.8 REV. OF THE HANDWHEEL
 WHEELHEAD SLIDE ADJUSTMENT ....................... 7"
 SWIVEL OF WHEELHEAD ............. 8 DEGREES (CLOCKWISE)
 WHEEL SIZE .............................. 10" X 1" X 3"

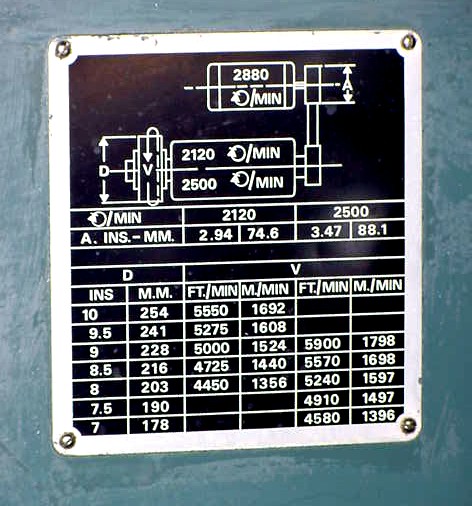

 WHEEL SPEEDS (2) .................... 2,120 & 2,500 RPM
 WHEELHEAD MOTOR ................................ 2.0 HP

 WORKHEAD SPINDLE SPEEDS, INF. VARIABLE ... 75 TO 750 RPM
 WORKHEAD & TAILSTOCK SPINDLE TAPERS .............. #1MT

 APPROX. FLOOR SPACE REQUIRED ................ 66" X 40"
 APPROX. MACHINE WEIGHT ...................... 3,360 LBS

      EQUIPPED WITH:

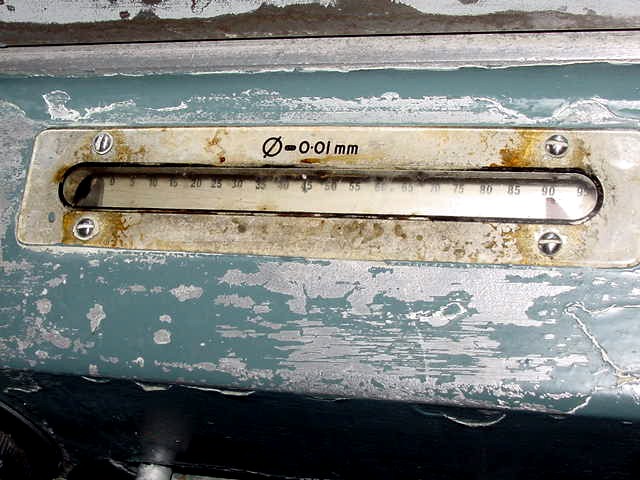

 ****** METRIC HANDWHEEL GRADUATIONS ******

      HYDRAULIC OPERATION FEATURING:
      - POWER TABLE TRAVERSE
      - AUTO INFEED
      - DUAL RATE (COARSE/FINE) PLUNGE (CONTINUOUS) INFEED
         W/DUAL RATE PLUNGE INDICATOR FEED SELECTOR
      - POWER RAPID WHEELHEAD ADVANCE & RETRACTION

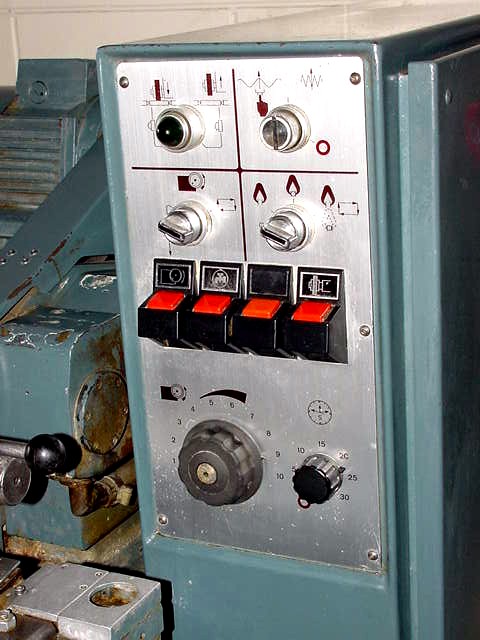

     SPARKOUT TIMER (0 TO 30 SECONDS)FOR AUTO INFEED
      & PLUNGE CYCLES
     FINE FEED MECHANISM FOR INFEED OF WHEELHEAD
     FINE FEED KNOB FOR TABLE TRAVERSE
     DUAL LIVE/DEAD WORKHEAD SPINDLE W/INFINITELY
      VARIABLE SPINDLE SPEEDS
     WORKHEAD SWIVELS
     COOLANT SYSTEM
     5" 3-JAW CHUCK

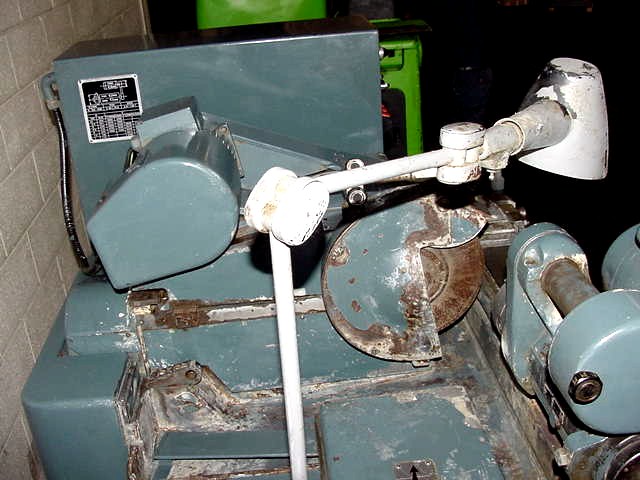

     WORK LIGHT
     3 H.P. WHEELHEAD MOTOR
     3/60/220-440 VOLT ELECTRICS

 **  ORIGINAL PAINT **
 ** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
 ** OFFERED "AS-IS" LOADED ON TRUCK
