Reference Number: 133537
Price: $8,950

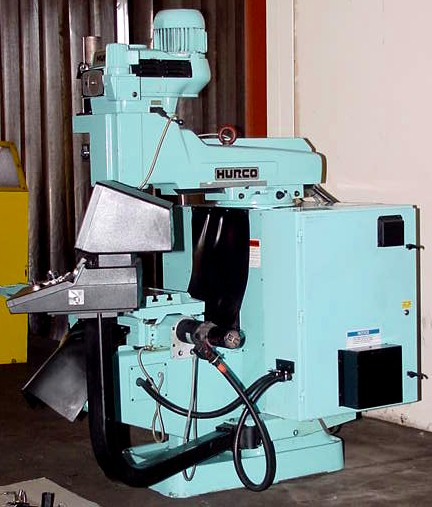

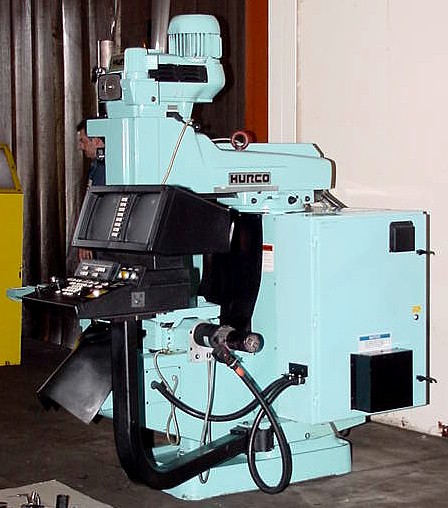

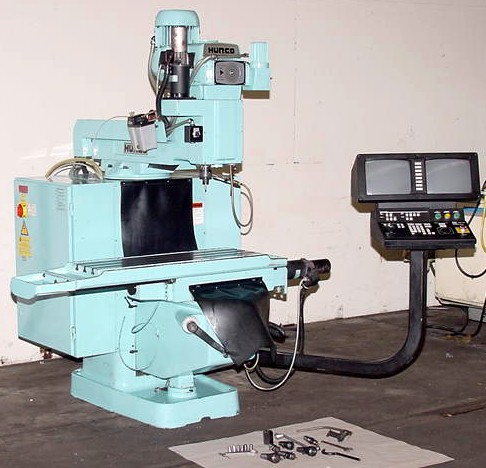

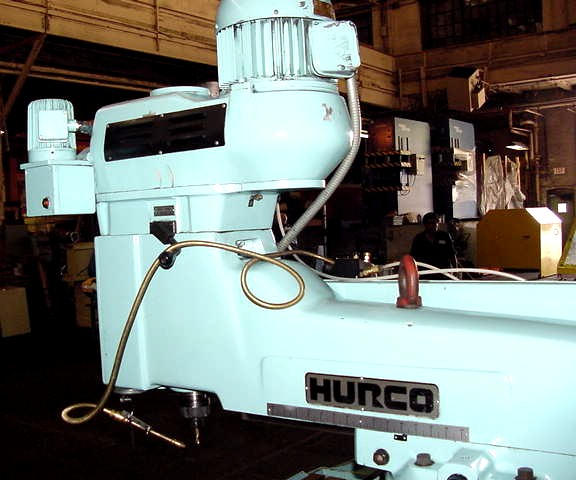

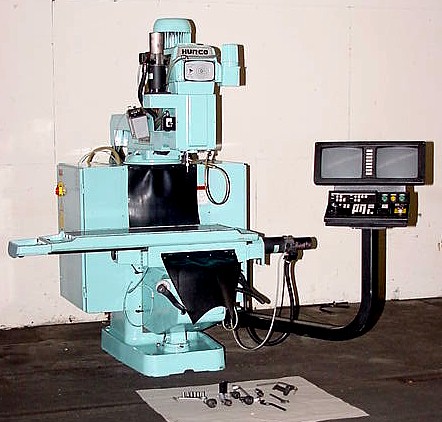

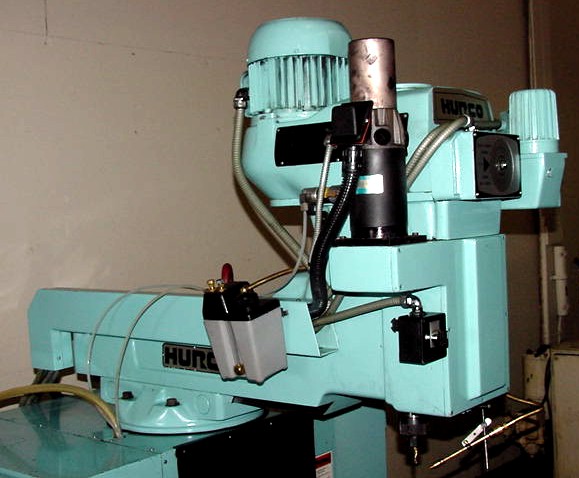

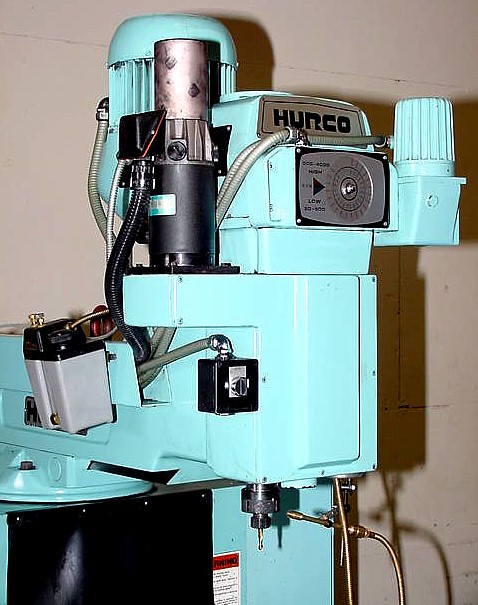

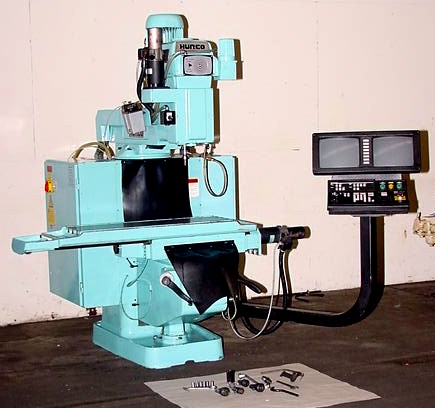

HURCO 3-AXIS CNC KNEE-TYPE VERTICAL MILL,

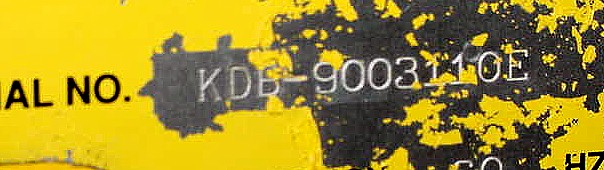

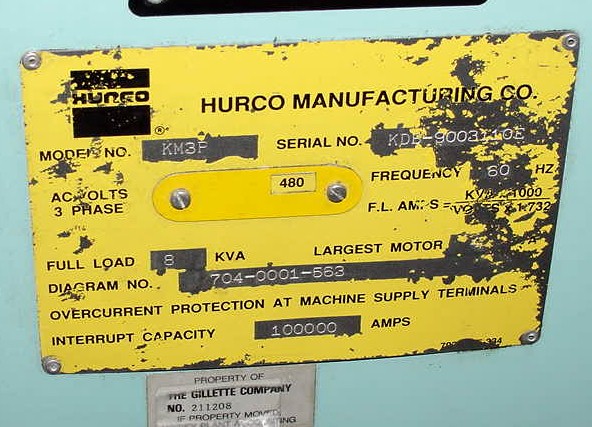

MODEL: #KM3P, S/N: KDB-9003110E, NEW 1991
SPECIFICATIONS:

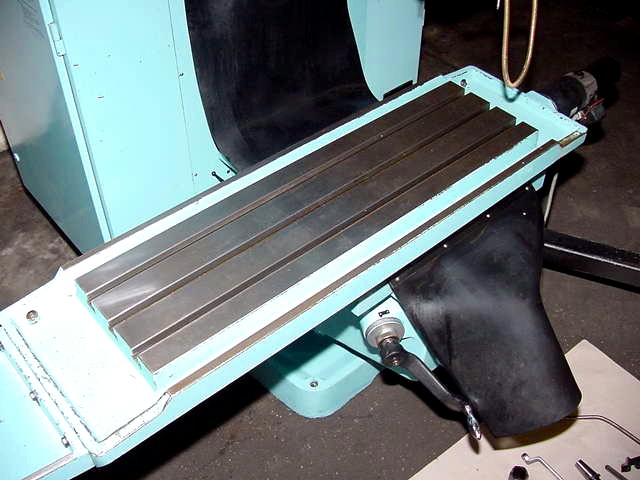

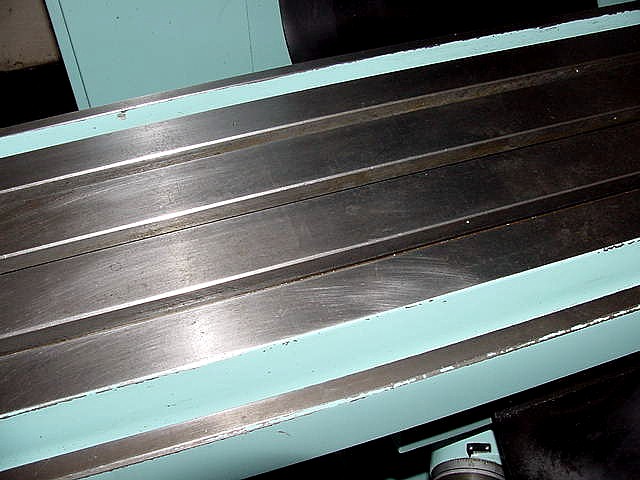

TABLE SIZE ...................... 14" X 49"
T-SLOTS ......................... 3 X 0.625"
ON ........................ 2.95" CENTERS
TABLE LOAD ...................... 750 LBS.
X-AXIS TRAVEL (LONGITUDINAL) .... 24"
Y-AXIS TRAVEL (CROSS TABLE) ..... 14"
Z-AXIS TRAVEL (QUILL) ........... 5"
KNEE TRAVEL (MANUAL) ............ 15.5"
RAM TRAVEL ...................... 14"
SPINDLE SPEEDS:
LOW ....................... 60-499 RPM
HIGH ...................... 500-4,000 RPM
TRANSMISSION 2-SPEED BACK GEAR WITH MANUAL CHANGE
SPINDLE NOSE TO TABLE DISTANCE .. 17.25" (MAXIMUM)
TAPPING CAPACITY ................ 7/8"
DRILLING CAPACITY (MILD STEEL) .. ¾"
MILLING CAPACITY (MILD STEEL) ... 2.5 CUBIC INCHES/MINUTE
MAXIMUM CUTTING FEDERATE ........ 150 IPM
RAPID FEDERATES ................. 0.1-250 IPM
APPROXIMATE MACHINE WEIGHT ...... 3,800 LBS.
APPROXIMATE DIMENSIONS .......... 101" X 111" X 83"
EQUIPPED WITH:

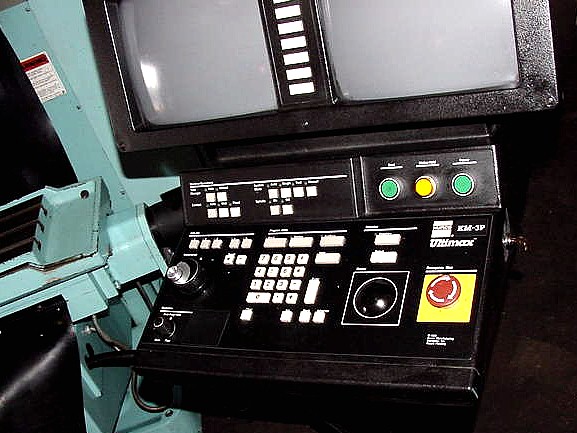

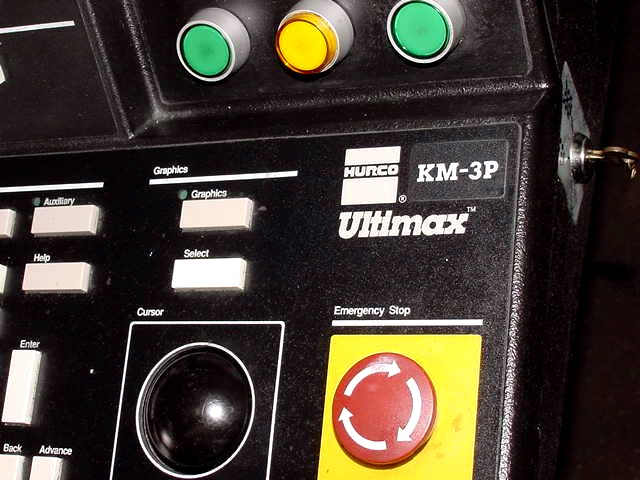

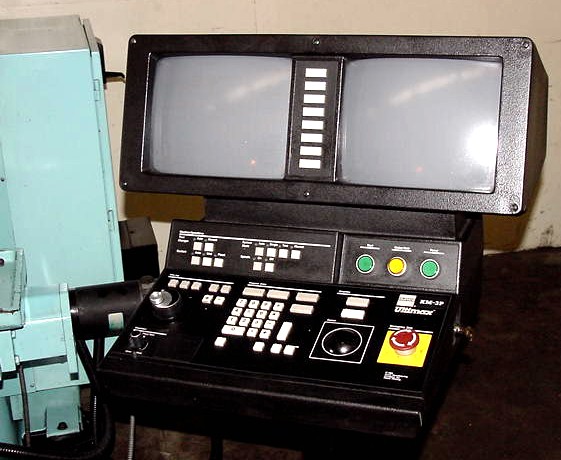

- ULTIMAX II SPLIT SCREEN CNC CONTROL (8.5 SOFTWARE VERSION)
- UNIVERSAL #200 KWIK-SWITCH SPINDLE

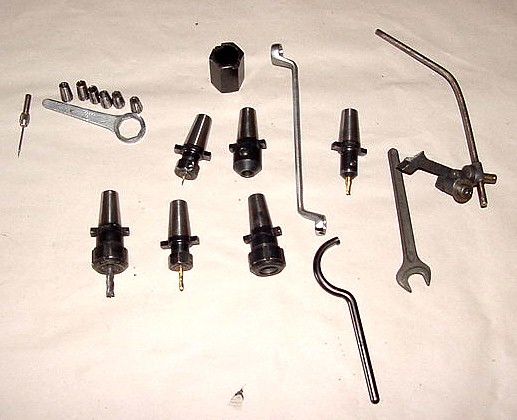

- INCLUDES 7 TOOLHOLDERS PLUS COLLETS SHOWN IN PHOTOS
- 3 HP MOTOR
