Reference Number: 133596

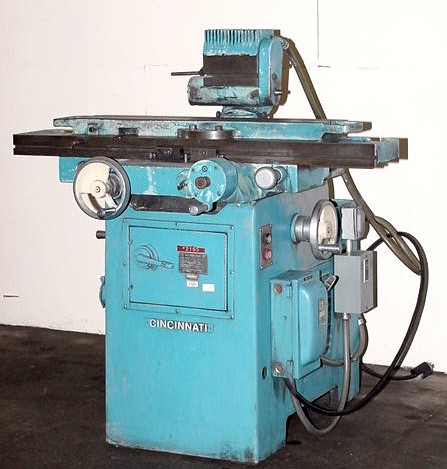

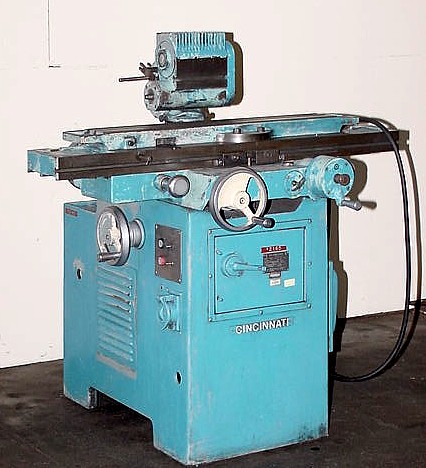

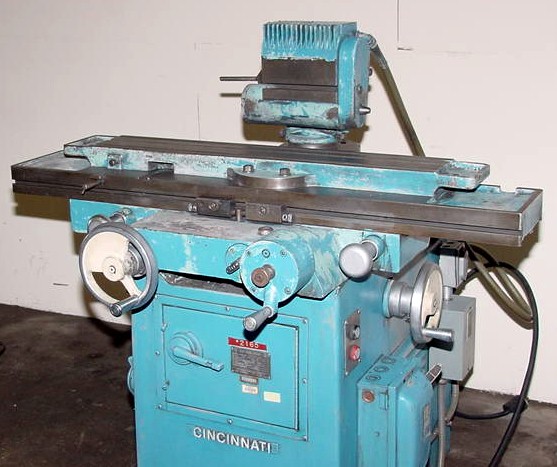

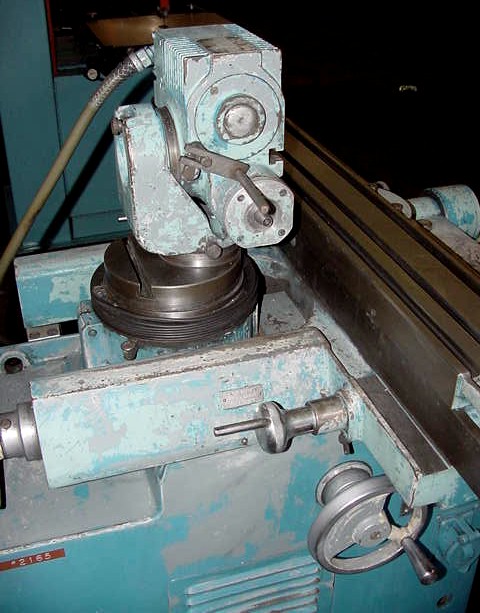

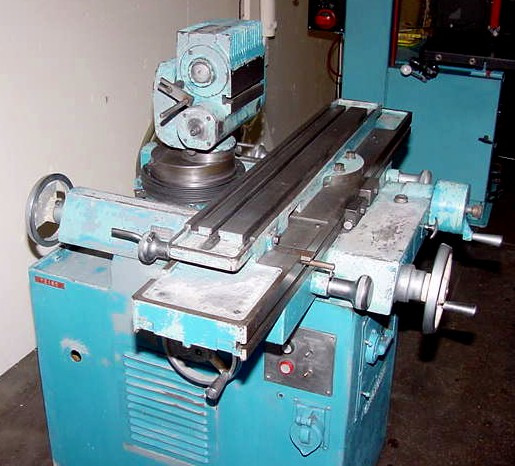

CINCINNATI UNIVERSAL TOOL & CUTTER GRINDER,

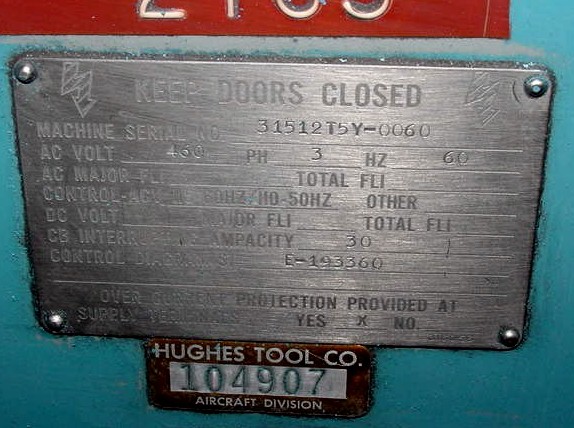

 MODEL #2,     S/N: 31512T5Y-0060,    NEW:  1971

 SWING OVER TABLE:                             10"
 LENGTH BETWEEN RIGHT & LEFT HAND TAILSTOCKS:  27"
 LENGTH BETWEEN TAILSTOCK & WORKHEAD:          21-1/2"
 RANGE: LONGITUDINAL                           16"
       CROSS:                                 10"
 TABLE WORKING SURFACE:                        6" X 36"
 TABLE SWIVELS:                                180 DEGREES
 TABLE GRADUATIONS ON END, FOR TAPER OF:       2" PER FOOT
 TABLE GRADUATIONS IN CENTER:                  90 DEGREES
 VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE:  10-1/2"
 GRINDING WHEELHEAD SWIVELS:                   360 DEGREES
 GRINDING WHEELHEAD TILTS ABOVE AND BELOW
  CENTER:                                     15 DEGREES
 MAXIMUM DISTANCE, CENTERLINE OF SPIDLE TO
  TABLE TOP:                                  13-5/8"

 APPROX. MACHINE WEIGHT                        2,250 LBS.

 EQUIPPED WITH:
 DIRECT DRIVE WHEELHEAD SPINDLE (1 H.P.)

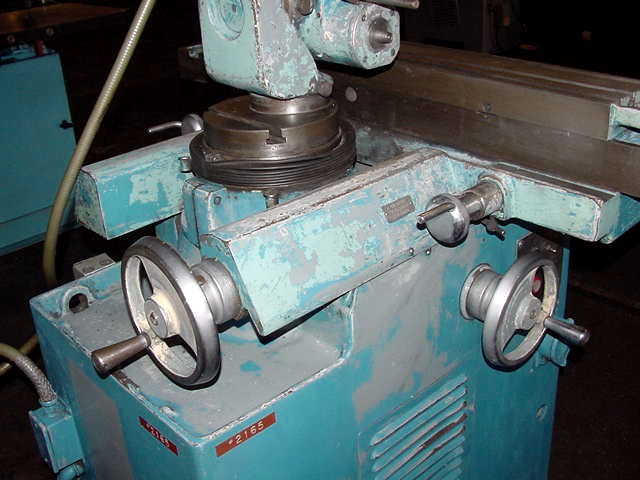

 SWIVELLING AND TILTING WHEELHEAD

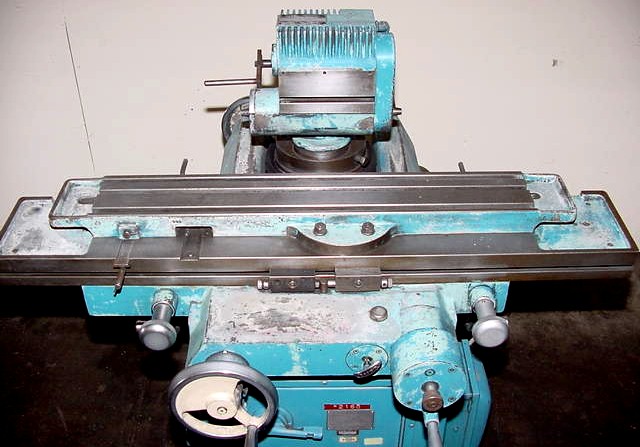

 SWIVEL TABLE
 SPRING CUSHIONED TABLE DOGS

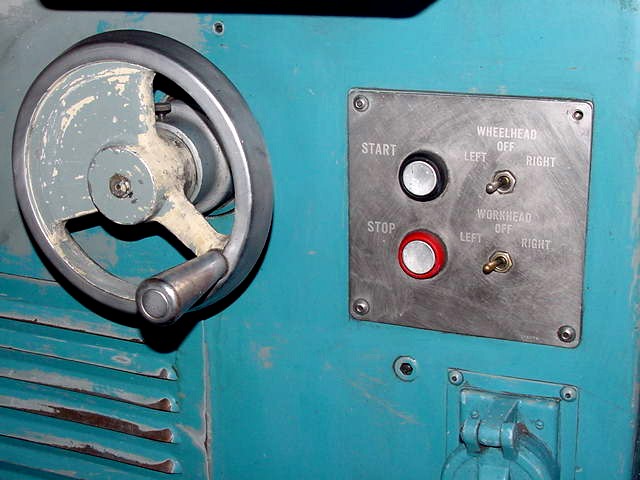

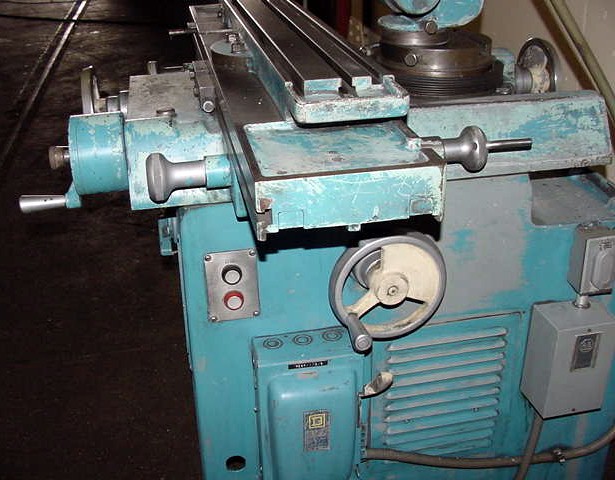

 DUPLICATE CONTROLS OPERATING THE MACHINE AT THE FRONT,
  RIGHT, OR LEFT-HAND END OF THE TABLE, OR AT THE REAR,
  RIGHT, OR LEFT-HAND SIDE OF THE COLUMN
 ANTI-FRICTION BALL BEARING TABLE ROLLING IN REPLACEABLE
  HARDENED STEEL V-WAYS

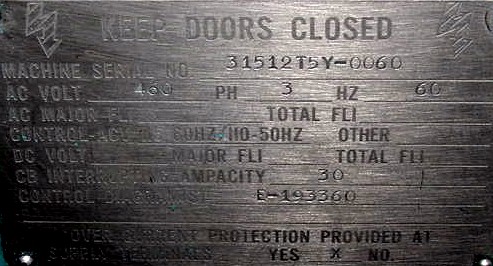

 PRESENTLY WIRED FOR 3/60/440 VOLTS


 ACCESSORIES AVAILABLE FOR PURCHASE:
 K.O. LEE #B982-5C AIR-BEARING FIXTURE FOR
  5C COLLETS ($1,750)
 CINCINNATI NON-MOTORIZED WORKHEAD ($750)
 SET OF CINCINNATI TAILSTOCKS ($499)
 CINCINNATI VISE w/SWIVEL BASE ($499)
 ** VERY GOOD CONDITION & APPEARANCE **
 INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE
