Reference Number: 134113

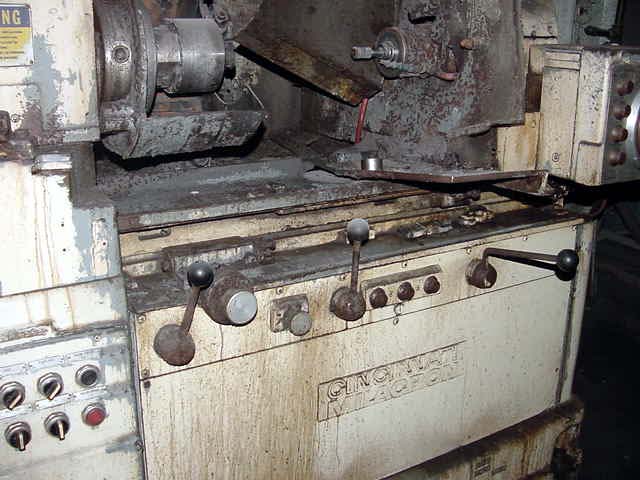

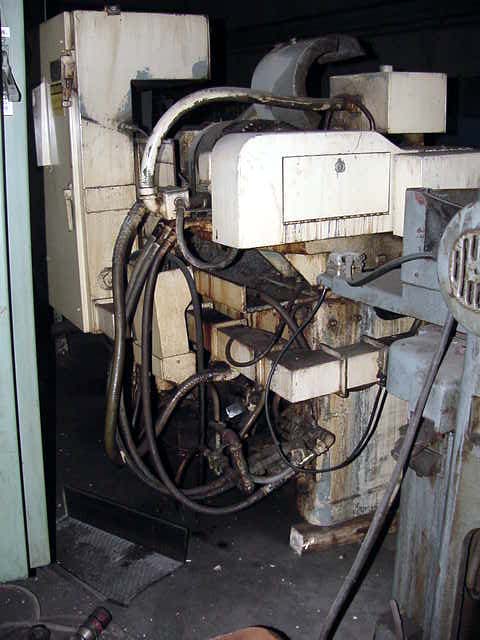

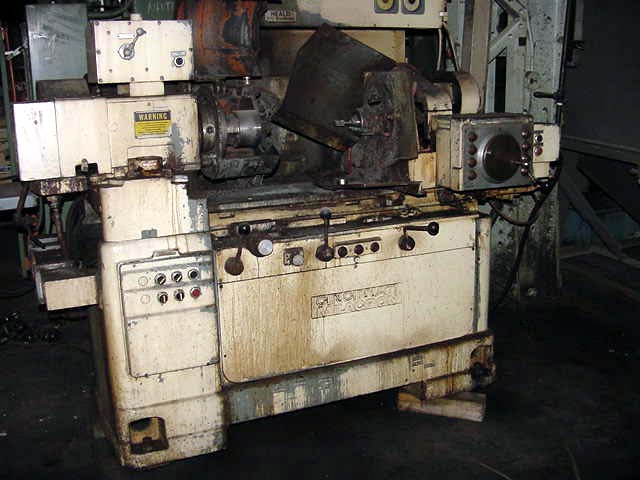

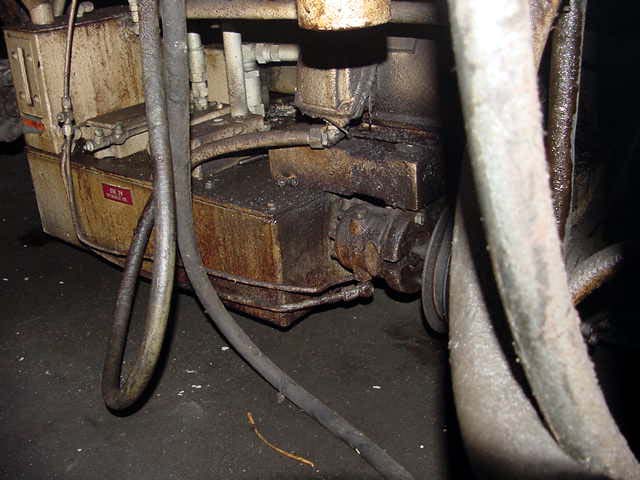

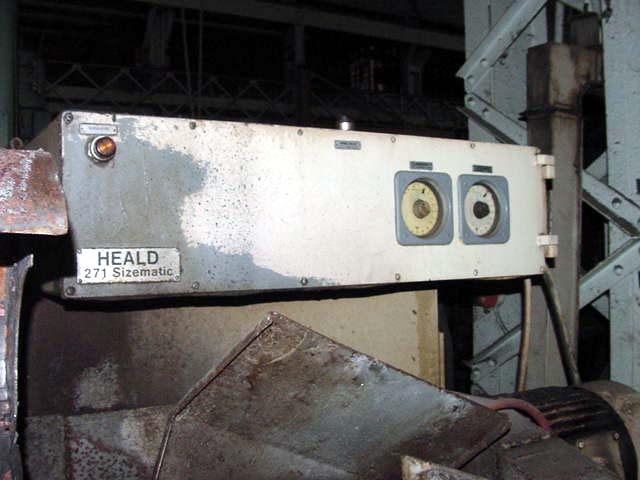

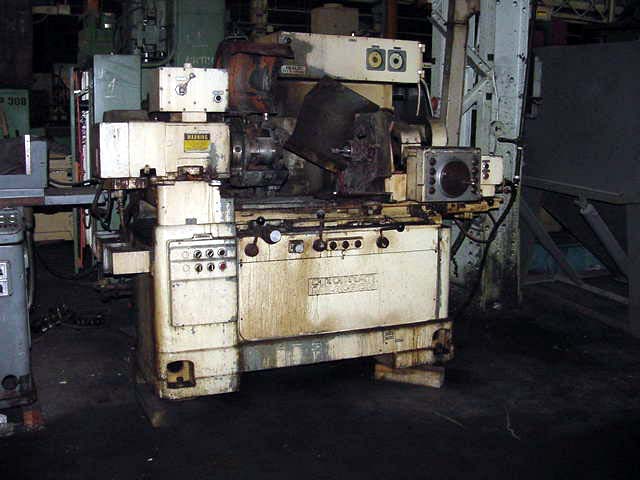

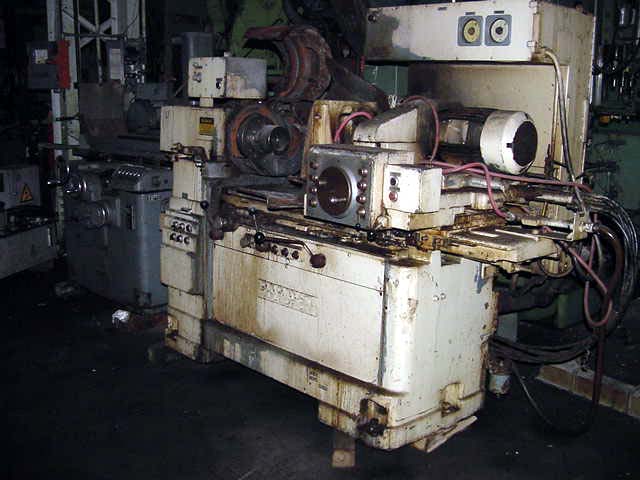

#271 CINCINNATI MILACRON "HEALD" "SIZEMATIC" INTERNAL GRINDING MACHINE w/FACTORY HIGHER SWINGPrice: On Request

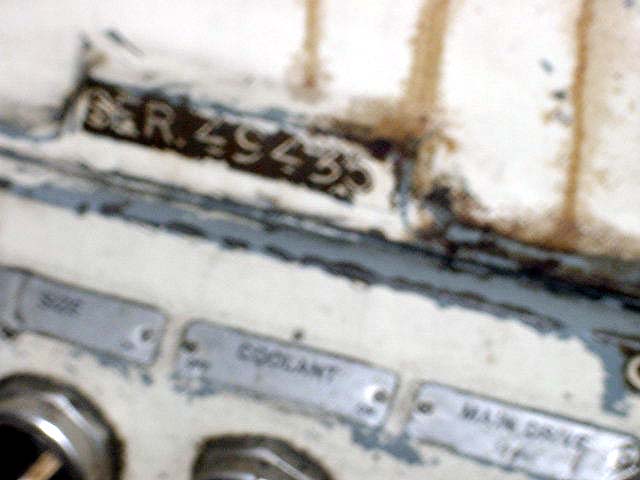

S/N: 49435 NEW: 1980
SWING OVER TABLE (STRAIGHT WORK) ............. 22"
SWING INSIDE STD. GUARD ...................... 12"
MAX. LENGTH OF HOLE .......................... 5"
MAX. DIA. OF HOLE ............................ 5- 1/2"
MIN. DIA. OF HOLE ............................ 1/8"
MAX. INCLUDED ANGLE OF TAPER ................. 60 DEG.
TABLE TRAVEL ................................. 16""
TABLE SPEEDS, RAPID TRAVERSE ............. 0 TO 35' FPM
TABLE SPEEDS FOR GRINDING ................ 0 TO 20' FPM
WORKHEAD SPEEDS (4) ........... 133, 200, 266 & 400 RPM
ONE TURN OF CROSS FEED HANDWHEEL ........ 0.060" ON DIA.
WHEEL WEAR COMPENSATION ..............0 TO .004" ON DIA.
MAX. POWER CROSS FEED ................... 0.042" ON DIA.
APPROXIMATE MACHINE WEIGHT .................. 7,400 LBS
APPROXIMATE FLOOR SPACE (MACHINE ONLY) ...... 74" X 38"
EQUIPPED WITH:
5 H.P./3/60/208-220-440 VOLT WHEELHEAD MOTOR

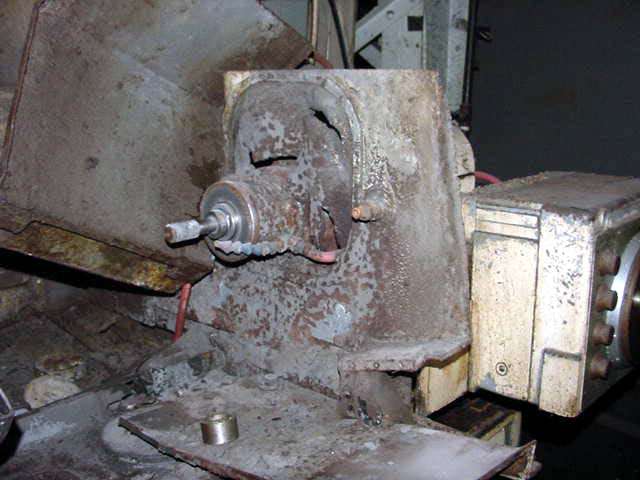

(1) RED HEAD "HEALD" SPINDLE
SET-UP ON WORKHEAD (ACCESSORY)

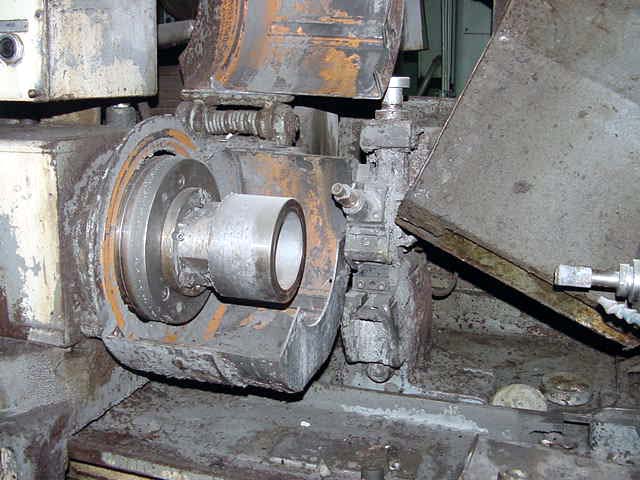

CAM-LOCK SPINDLE
FACING ATTACHMENT

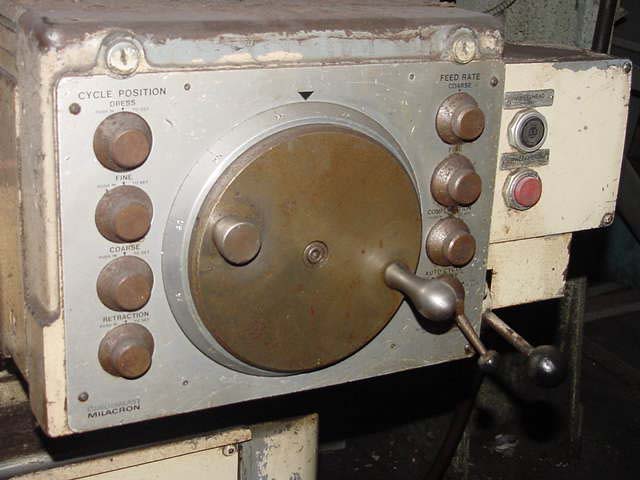

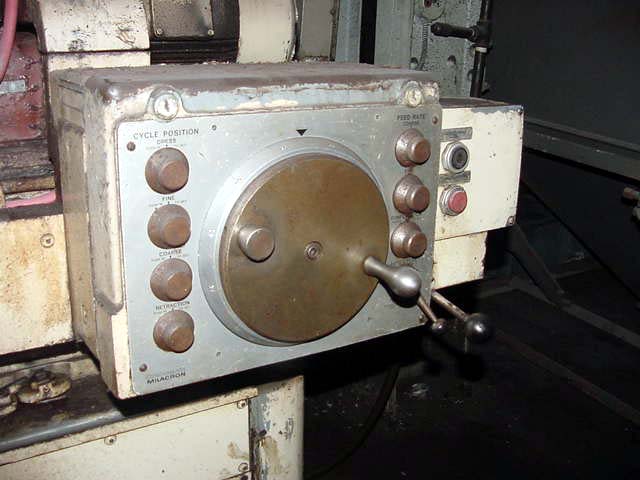

POWER AUTOMATIC FEEDS w/COARSE, FINE, COMPENSATION
& AUTO CYCLE OPTIONS
AUTO WHEEL DRESSER w/COARSE, FINE & RETRACT OPTIONS
** COMPLETE MACHINE **
** F.O.B. HARRISON, N.J. WAREHOUSE **
