Reference Number: 134230
Price: On Request

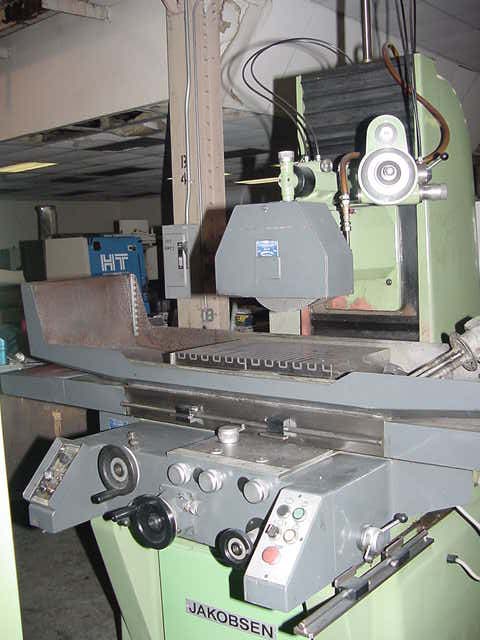

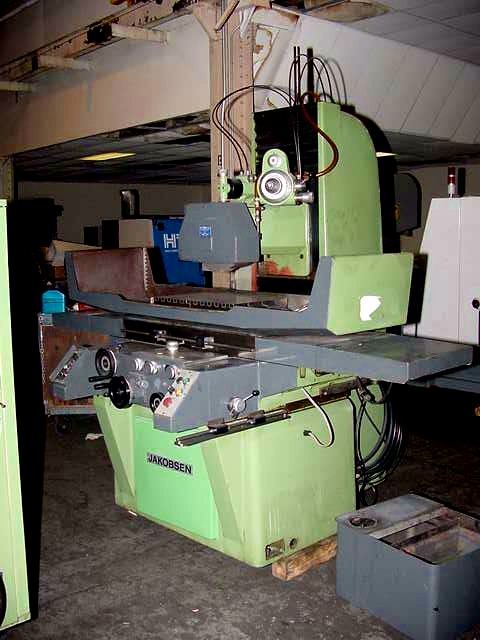

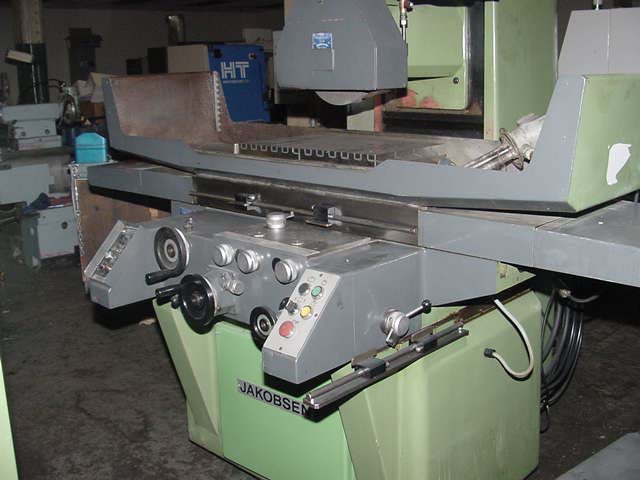

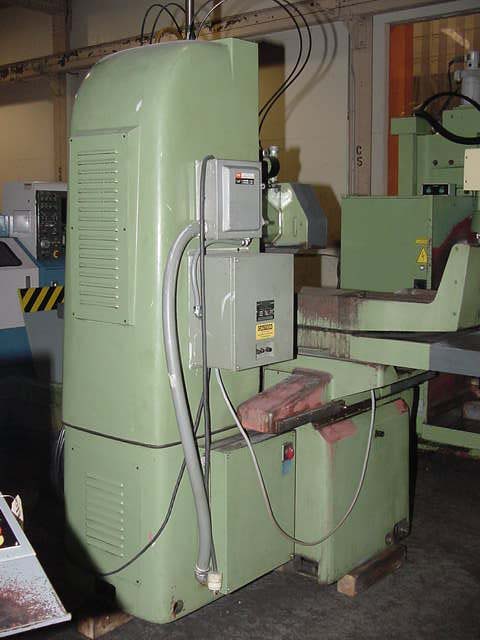

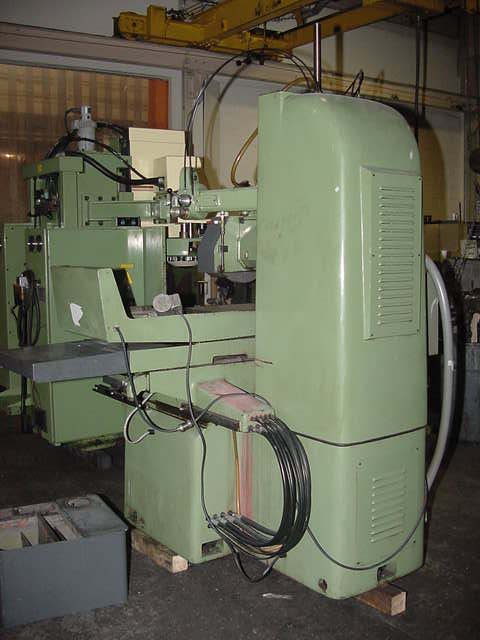

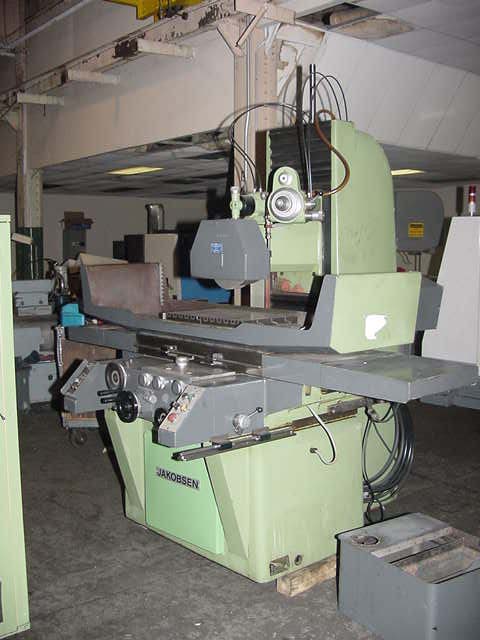

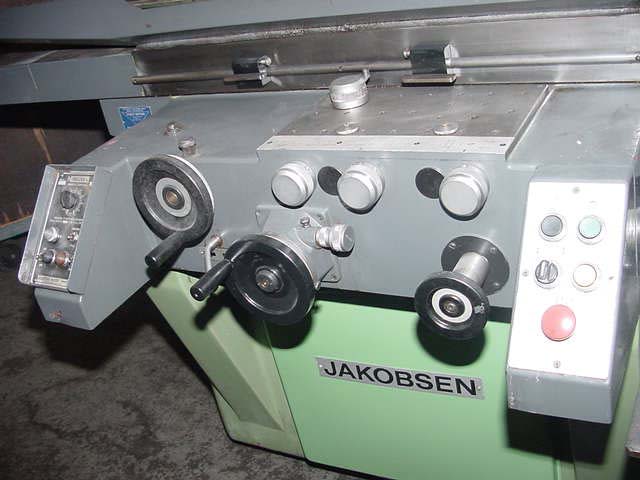

14" x 24" JAKOBSEN (MADE IN DENMARK) SURFACE GRINDER
WITH AUTOMATIC INCREMENTAL DOWNFEED

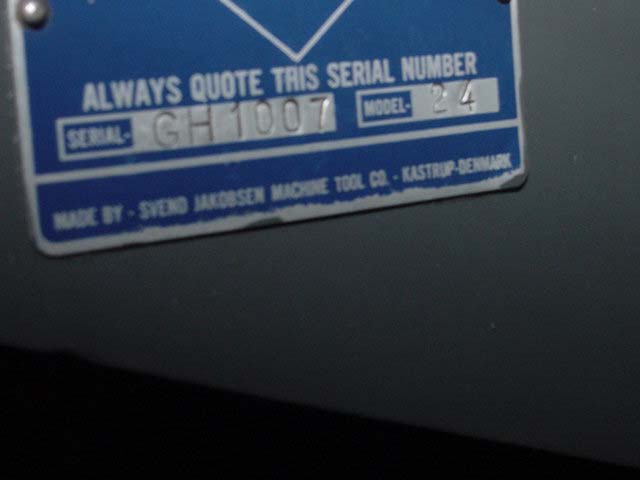

MODEL: SJ24 S/N: GH1007 NEW: 1983
SPECIFICATIONS:
WORKING SURFACE OF TABLE.................... 14" X 24"
LONGITUDINAL TABLE TRAVEL................... 28"
CROSS TABLE TRAVEL.......................... 16"
MAX. DISTANCE S/L SPINDLE TO TABLE SURFACE.. 20"
X-LONGITUDINAL.............................. 20"
WHEEL SIZE (5" ARBOR HOLE).................. 14" X 2" X 5"
SPINDLE SPEED............................... 1700 RPM
TABLE SPEEDS (VARIABLE)..................... 6-99 FPM
VARIABLE CROSS FEED......................... 0.080"-1.600"
FINE HAND CROSS FEED GRADUATIONS............ 0.0001"
AUTOMATIC VERTICAL DOWNFEED PER STROKE
(VARIABLE)................................. 0.0001"-.0012"
APPROX. MACHINE DIMS. FOR OPERATION....... 126" X 76" X 97"H
APPROX. WEIGHT ............................. 6,500 LBS.
EQUIPPED WITH:

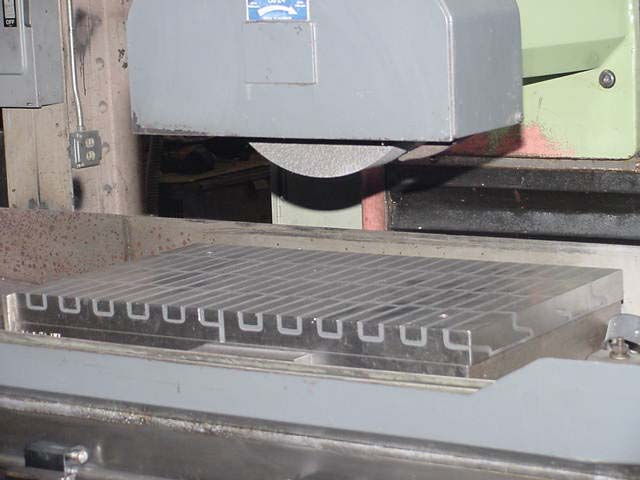

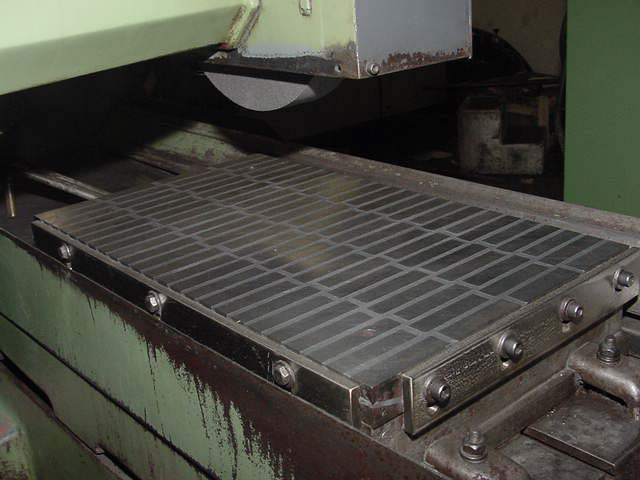

-14" X 24" O.S. WALKER "INTERLOC" "COOL" ELECTRO-MAGNETIC
CHUCK ... CHUCK HAS A VERY LOW HEAT SIGNATURE PERMITTING
HIGHER TOLERANCE WORK. THIS CHUCK ALSO ALLOWS AN OPERATOR
TO SET-UP THE GRIND, LET THE PART SIT FOR A WHILE, & COME
BACK TO MACHINE WITHOUT THE PART DISTORTING DUE TO HEAT.

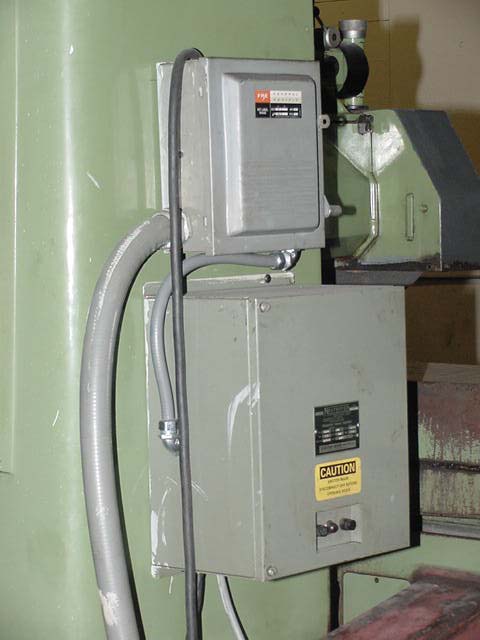

-VARIABLE HOLD NEUTROFIER W/AUTO DEMAGNITIZING (MADE BY
ELECTRO-MATIC)
-HYDRAULICALLY AUTOMATIC INCREMENTAL DOWNFEED
(SURFACE & PLUNGE)
-POWER RAPID CROSSFEED FOR QUICK POSITIONING OR FOR WHEEL
TRUING
-POWER ELEVATION TO WHEEL HEAD

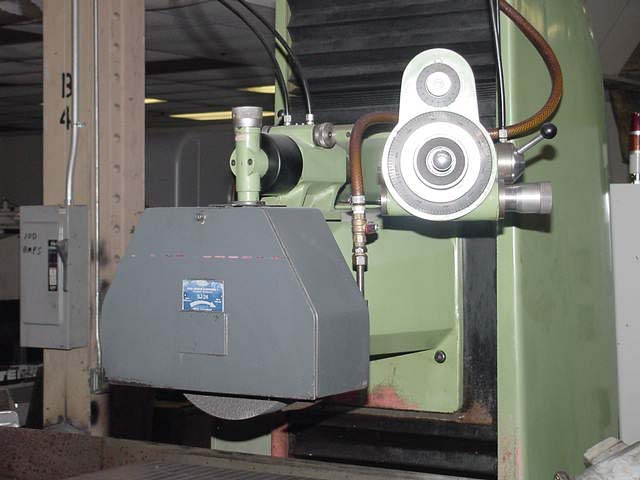

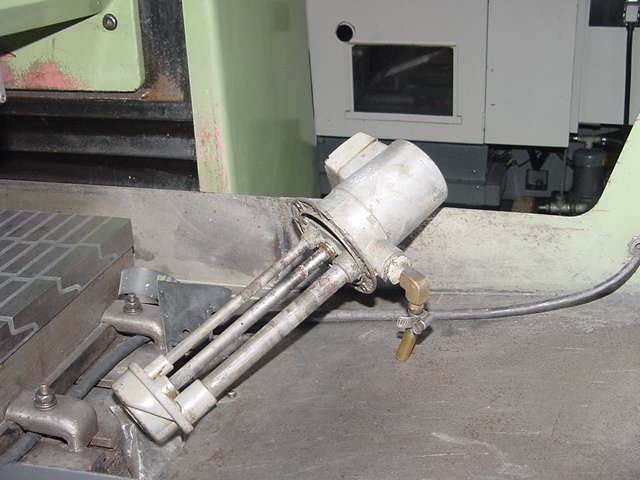

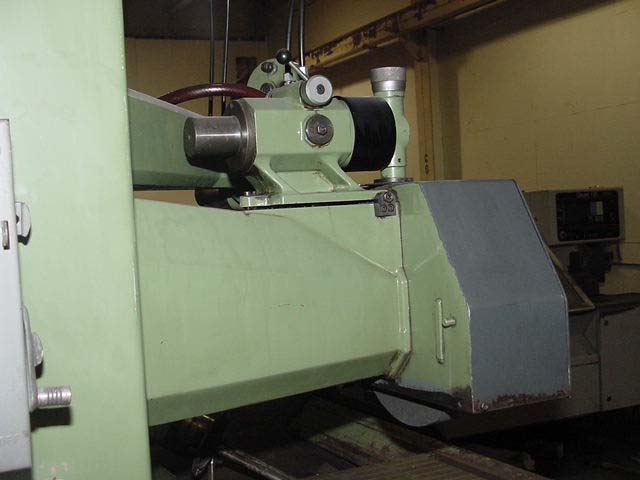

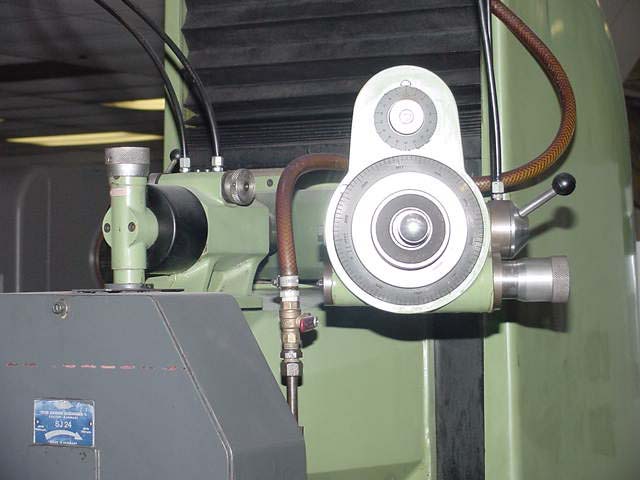

-HYDRAULIC "OVER-THE-WHEEL" DRESSER
-(2) WHEEL HUBS

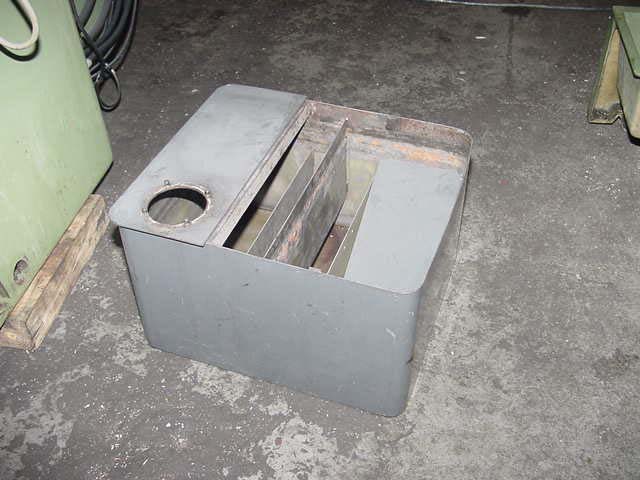

-COOLANT SYSTEM
-5.5 H.P./3/60/220-440 VOLT DIRECT DRIVE SPINDLE
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
