Reference Number: 134441

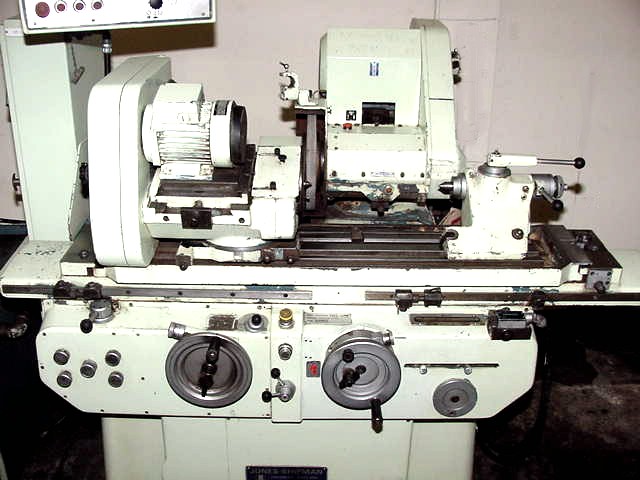

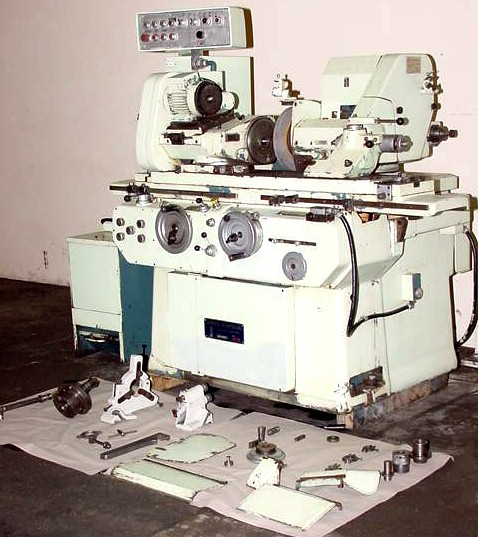

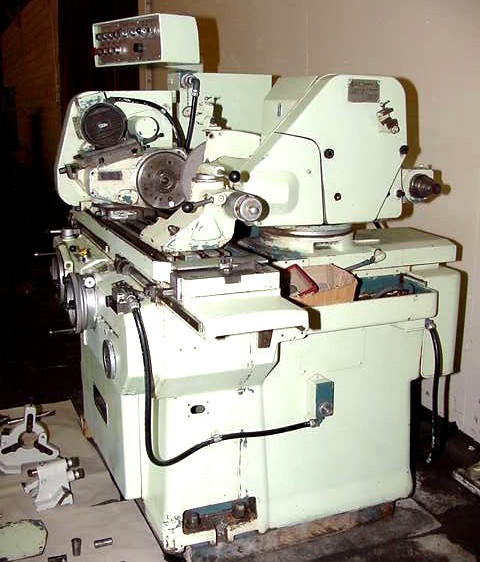

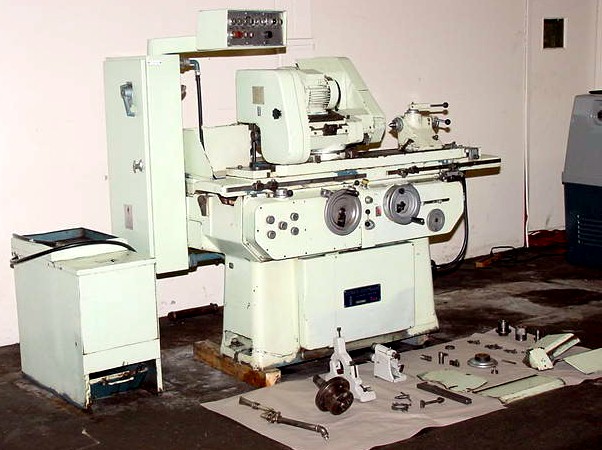

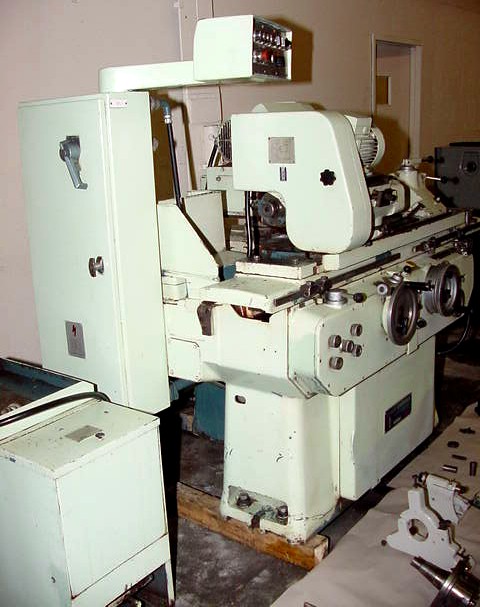

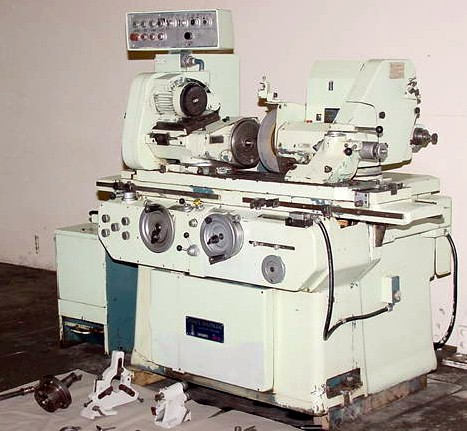

 10" X 18" JONES & SHIPMAN SUPER-PRECISION UNIVERSAL
          I.D./O.D. CYLINDRICAL GRINDER

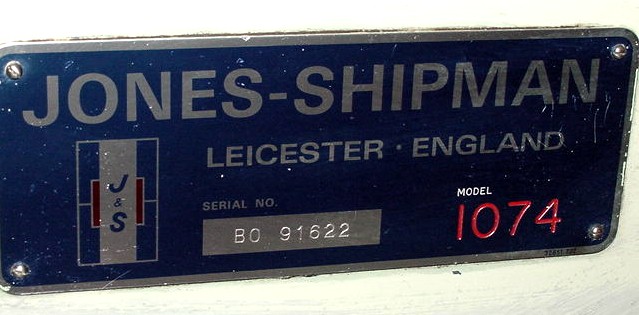

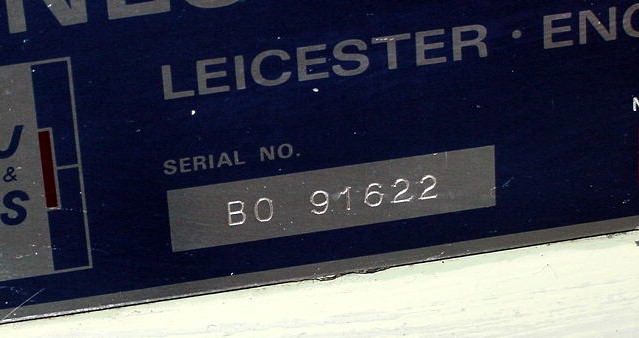

  MODEL: 1074        S/N: BO91622        NEW: 1977

  MAXIMUM SWING .................................. 10"
 DISTANCE BETWEEN CENTERS ........................ 18"
 TABLE SWIVEL INCLUDED ANGLE ..................... 20 DEG.
 LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 3" TO 180" IPM
 MANUAL TRAVERSE, HANDWHEEL PER REV. ............. 0.50"
 FINE HAND TRAVERSE KNOB GRAD. ................... 0.0005"
 FINE HAND TRAVERSE KNOB PER REV. ................ 0.01"
 TABLE SWIVELS, CLOCKWISE ........................ 19 DEG.
 TABLE SWIVELS, COUNTER-CLOCKWISE ................ 20 DEG.

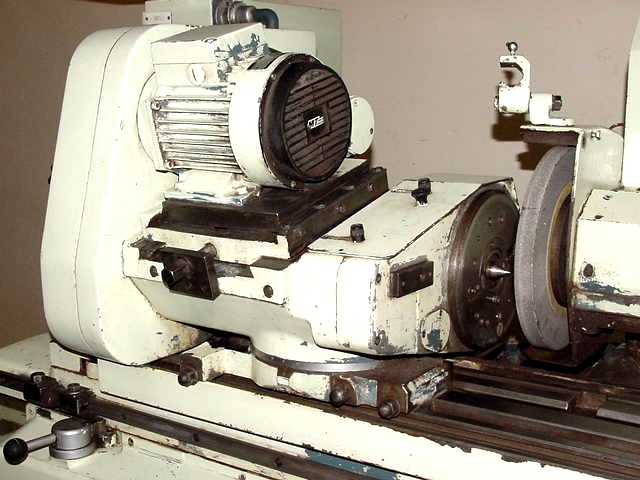

  WHEELHEAD:
 TRAVERSE AMOUNT ON SCREW ........................ 7"
 POWER WHEELHEAD RAPID STROKE .................... 1- 1/4"
 CROSS FEED HANDWHEEL GRAD. ...................... 0.0002"
 FINE FEED LEVER GRAD. ........................... 0.00005"
 AUTO INFEED INCREMENT ..................0.00002" TO 0.0020"
 PLUNGE INFEED RATE ........................ 0.00005" TO 1"
 WHEELHEAD SWIVELS .............................. 360 DEG.
 WHEEL SIZE ............................. 12" x 1- 1/2" x 5"
 WHEEL SPEEDS (2) ........................ 1,550 & 1,990 RPM
 WHEELHEAD MOTOR ................................. 5.5 HP

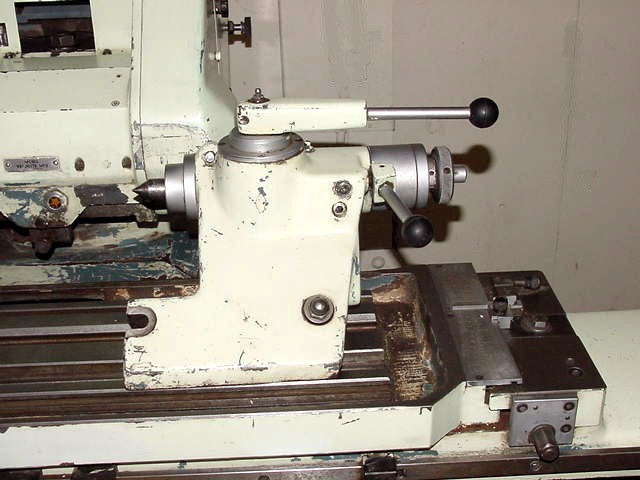

  WORKHEAD:
 WORKHEAD SPINDLE SPEEDS (6) ................. 40 TO 320 RPM
 WORKHEAD SPINDLE TAPER ........................... #3MT

  APPROX. FLOOR SPACE REQUIRED ................. 100" X 54"
 APPROX. MACHINE WEIGHT ........................ 5,500 LBS

 MACHINE FEATURES:
 HYDRAULIC OPERATION FEATURING:
 - POWER TABLE TRAVERSE
 - AUTO INFEED OF WHEELHEAD @ TABLE REVERSAL
 - PLUNGE INFEED (CONINUOUS FEED) W/DUAL COARSE & FINE INFEED
   CYCLES
 - POWER RAPID WHEELHEAD ADVANCE & RETRACTION
 SPARKOUT TIMER (0 TO 30 SECONDS)

 WHEELHEAD MOVES ON ROLLER BEARINGS
 WHEEL CAN BE MOUNTED ON LEFT OR RIGHT SIDE OF WHEELHEAD
 FINE FEED MECHANISM FOR INFEED OF WHEELHEAD (.00005")
 FINE FEED KNOB FOR TABLE TRAVERSE
 DUAL LIVE/DEAD WORKHEAD SPINDLE

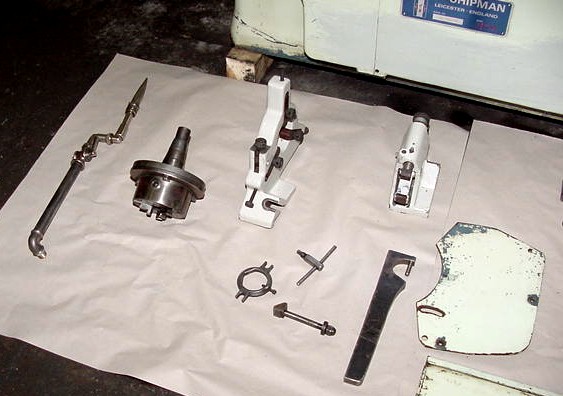

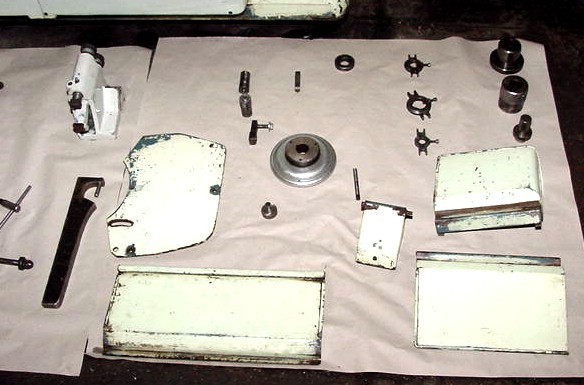

 EQUIPPED WITH:
 SWING AROUND INTERNAL GRINDING ATTACHMENT W/SPINDLE
 3-JAW CHUCK WITH ADAPTOR PLATE

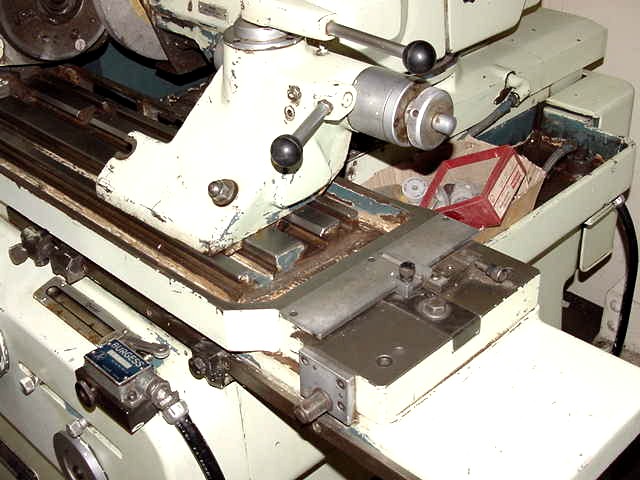

 TABLE MOUNTED DRESSER
 2-POINT STEADY REST SUPPORT
 3-POINT STEADY REST SUPPORT
 COOLANT SYSTEM
 WIRED PRESENTLY FOR 3/60/440 VOLT OPERATION


  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
 ** EXCELLENT CONDITION & APPEARANCE **
