Reference Number: 134522

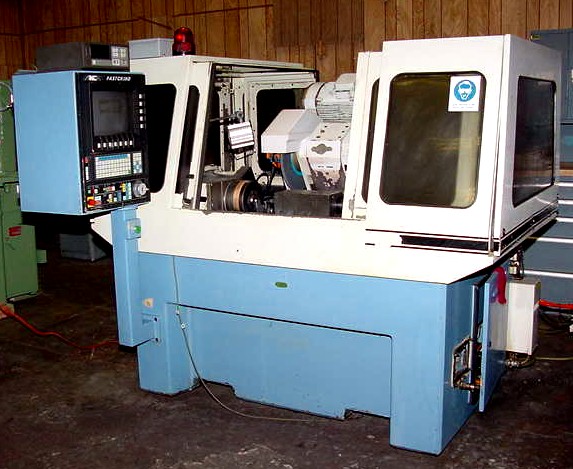

 ANCA CNC CYLINDRICAL GRINDER

 MODEL: FASTGRIND EG3

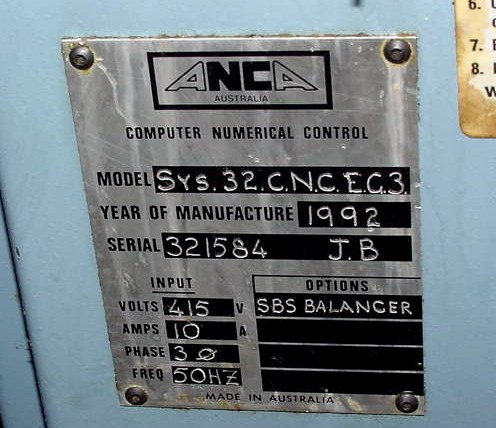

 S/N: 321584
 NEW: 1992

 SPECIFICATIONS:
 POLYMER CONCRETE CASTING

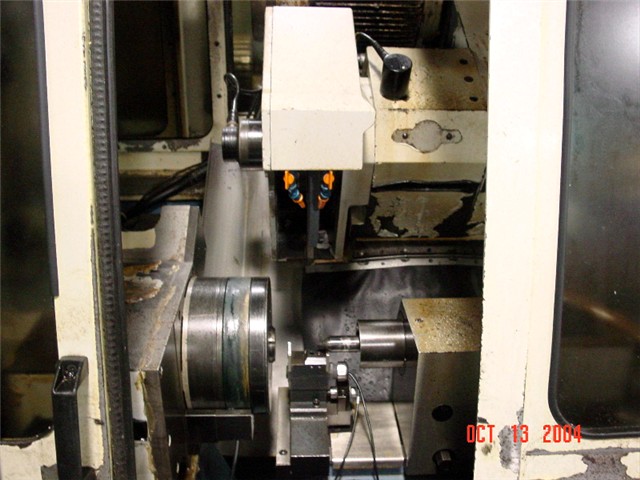

 WHEELHEAD MOVES IN TWO AXES (X & Z)
 GRINDING SPINDLE- 10 HP AC
 INF. VARIABLE WHEELHEAD SPINDLE SPEEDS (0 TO 2,500 RPM)
 12" TO 16" GRINDING WHEEL DIAMETER x 3.2" WIDE.
  WHEEL BORE IS 5".
 X-AXIS TRAVEL (WHEELHEAD IN & OUT) IS 8.25", MAX. SPEED IS
  300" IPM, ENCODER RESOLUTION IS .000004".
 PRELOADED LINEAR RALES , BALLSCREW (40mm DIA.) DRIVEN
  BY DC SERVO MOTOR
 Z-AXIS MAX. TRAVEL (WHEELHEAD MOVING LEFT & RIGHT) IS 10",
  ENCODER RESOLUTION IS .000004"
 SLIDING STEEL GUARDS FOR PROTECTING WAY SURFACES

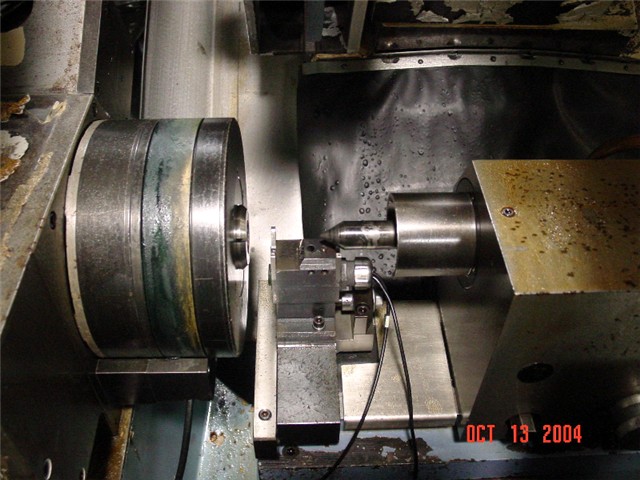

 WORKHEAD HAS INFINITELY VARIABLE SPINDLE SPEEDS FROM
  0 TO 820 RPM
 AS AN AXIS, THE WORKHEAD IS CAPABLE OF MOVING AT A SPEED
  OF UP TO 8,000 DEGREES/MIN.  THE RESOLUTION OF THE AXIS
  IS 0.015 DEGREES.
 WORKHEAD SPINDLE TAPER IS #4MT, WORKHEAD SPINDLE IS DUAL
  LIVE/DEAD,
 WORKHEAD IS CAPABLE OF OPERATING BOTH AS A SPINDLE
 (IDENTIFIED AS "SPINDLE 3) AND AS AN AXIS (C-AXIS).
  THIS PROVIDES OPERATIONS FOR BOTH CYLINDRICAL GRINDING
  & CREEPFEED GRINDING.
 WORKHEAD HAS A PNEUMATICALLY POWERED COLLET CHUCK.
 TAILSTOCK SPINDLE TAPER IS #3MT WITH 1.5" QUILL TRAVEL.
  WEIGHT CAPACITY IS 110 LBS., TAPER ADJUSTMENT IS
  +/- .002", & THE TAILSTOCK HAS A HYDRAULIC ACTUATOR.
 AUTOMATIC DYNAMIC WHEEL BALANCING SYSTEM
 DIAMOND PLATED ROTARY DRESSING DEVICE.  THIS DEVICE IS
  POWER DRIVEN.  DRESSER SHAFT IS 1.4" DIAMETER.
  TOTAL LENGTH OF THE DRESSING ROLL IS 5".

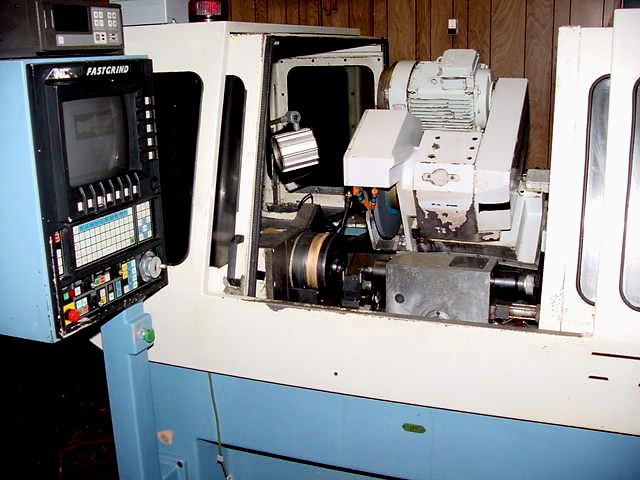

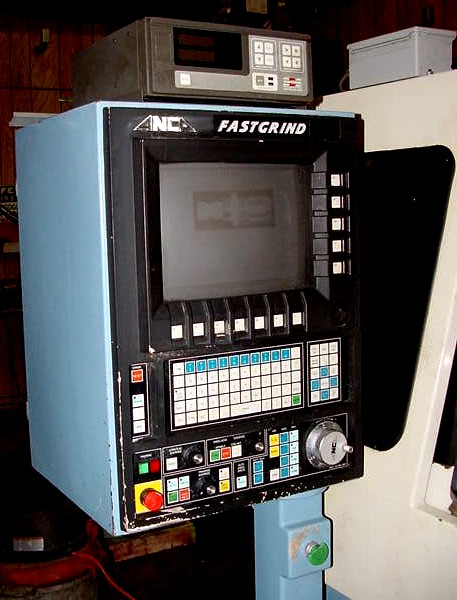

 ANCA FASTGRIND SYSTEM 32 CNC CONTROL
 CONVERSATIONAL "G_CAM" PART PROGRAMMING - SIMPLE PART
  PROGRAM WHICH SETS THE PARAMETERS, AND THEN CALLS
  THE APPROPRIATE CYCLE FOR EACH PARTICULAR SECTION
  OF THE WORKPICE.  THE PARAMETERS, AND THE CYCLES CALLED,
  ARE ULTIMATELY SPECIFIED BY THE OPERATOR, WITH AN
  ASSISTANCE FROM THE CONTROL THROUGH "G_CAM".
 FLOPPY DISC DRIVE & RS-232 INTERFACE
 EDGE DETECTION SENSING

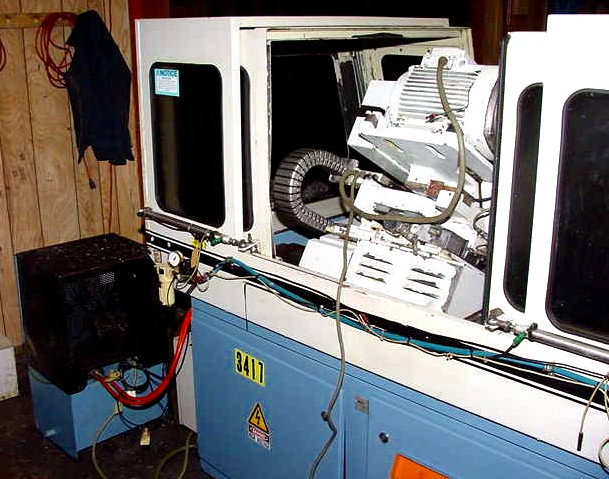

 MACHINE ENCLOSURE
 COOLANT SYSTEM WITH FILTRATION

 ** MACHINE BOOKS/DOCUMENTATION **
 ** EXCELLENT CONDITION & APPEARANCE **
