Reference Number: 134533

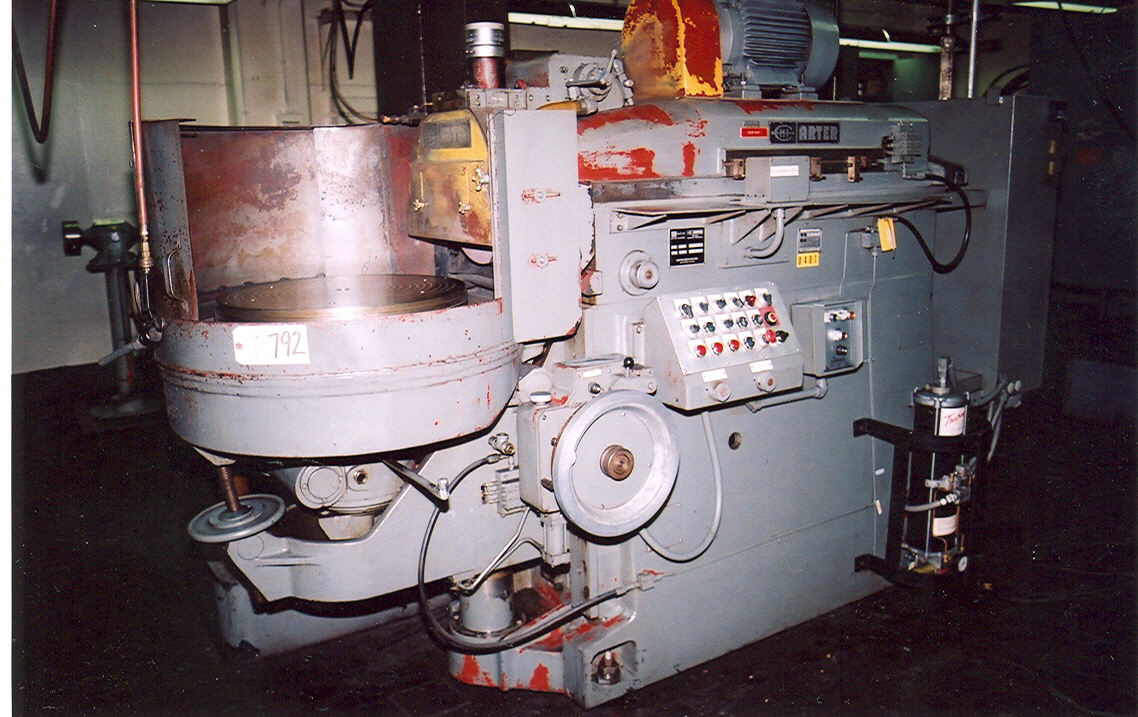

24" CENTRO-METALCUT (ARTER) Saddle Type Horizontal Rotary
  Surface Grinder, Model E-16, New 1988

 Magnetic chuck-nominal diameter 24"
 Magnetic chuck-actual face diameter 26"
 Swing, maximum in water pan 34"
 Maximum work height with new wheel 10"
 Wheel collet flange diameter 10 ½"
 Standard wheel size 16" x 2" x 8"
 Maximum wheelhead stroke 13"
 Knee maximum vertical travel 12"
 Angular tilt-convex 10°
 Angular tilt-concave 10°
 Wheelhead spindle speed 1400 RPM
 Wheelhead traverse (infinitely adjustable) 0-10 FPM
 Table speed (adjustable 37-155 RPM
 Feed handwheel-one revolution .020"
 Feed handwheel-finest division .0001"-.0015"
 Table slide power positioning, variable 5-225 IPM
 Rapid table traverse 300 IPM
 Wheelhead power positioning 6 IPM

 EQUIPPED WITH:

 Saddle-type design with wheelhead mounted on a massive
 vertical slide which travels on wide spaced rectangular
 vertical ways

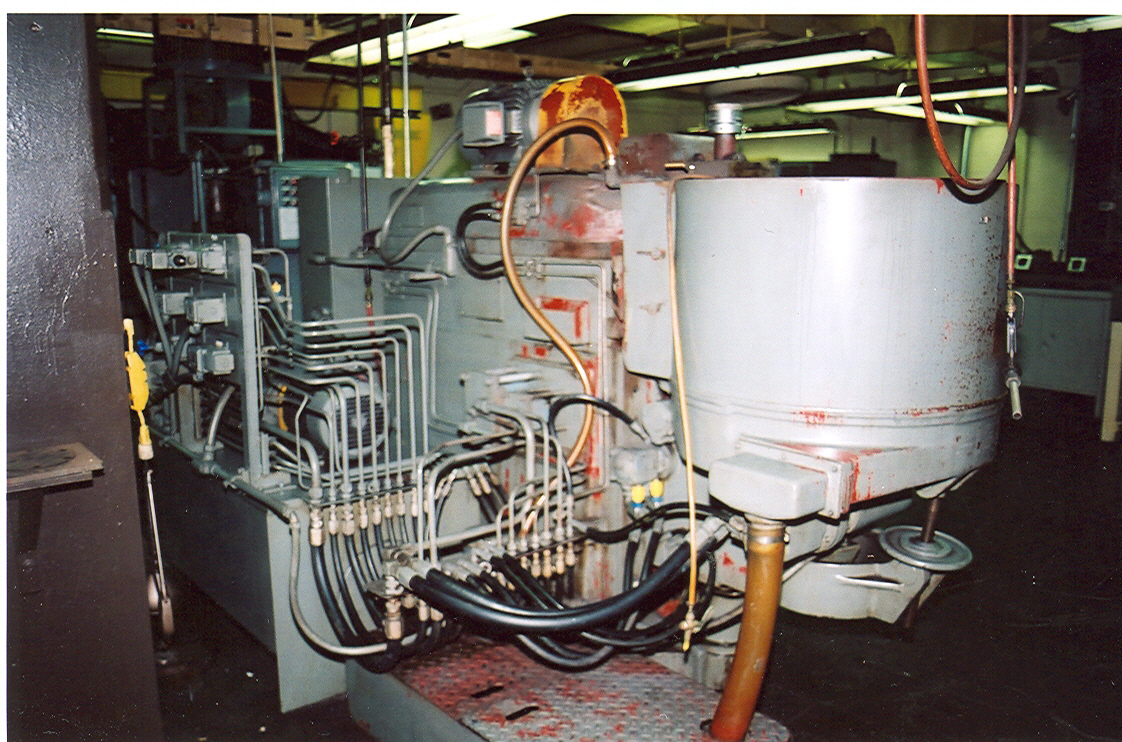

 Wheelhead arranged with dual hydraulic motor drives for
 rapid and feed vertical motion
 Hydraulically actuated table slide
 Hydraulically driven and manually controlled rotary table
 drive
 Hydraulically actuated "over the wheel" dresser with coarse
 and precise micrometer adjustment for fast uniform truing
 Variable chuck speed control
 Variable ram speed control with incremental feed
 Shoulder grinding feed control
 Automatic feed unit for vertical movement of knee
 Manual or multiple automatic cycle options
 Operator's push button station
 24" diameter electromagnetic chuck with Flux Master IV
  chuck control with variable magnetic holding control
 Trabon automatic pressurized lubrication system
 Large capacity external coolant pump and tank
 Way covers for ram ways
 10 H.P. 3/60/575 volt external hydraulic pump motor and tank
 20 H.P. 3/60/575 volt spindle drive motor
 Transformer for 3/60/230 or 460 volt input

 Approximate weight: 12,200 lbs.

 Dimensions: 88"LR x 122"FB x 79 ½"High (including coolant and hydraulics

 Condition: excellent
