Reference Number: 134584

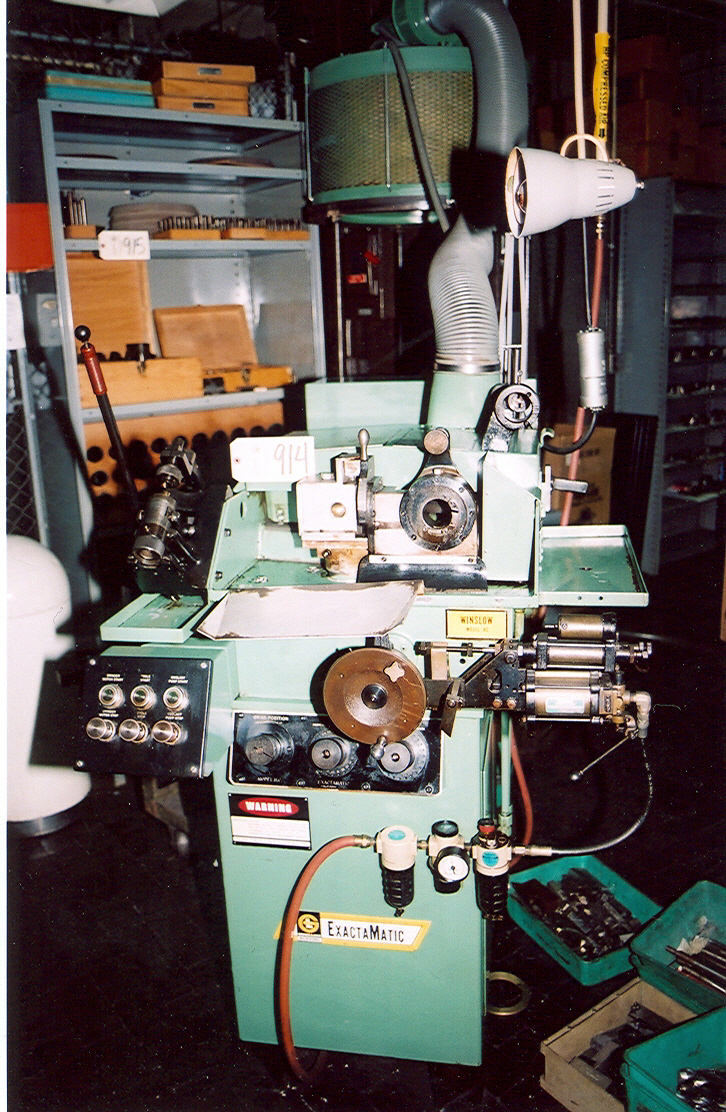

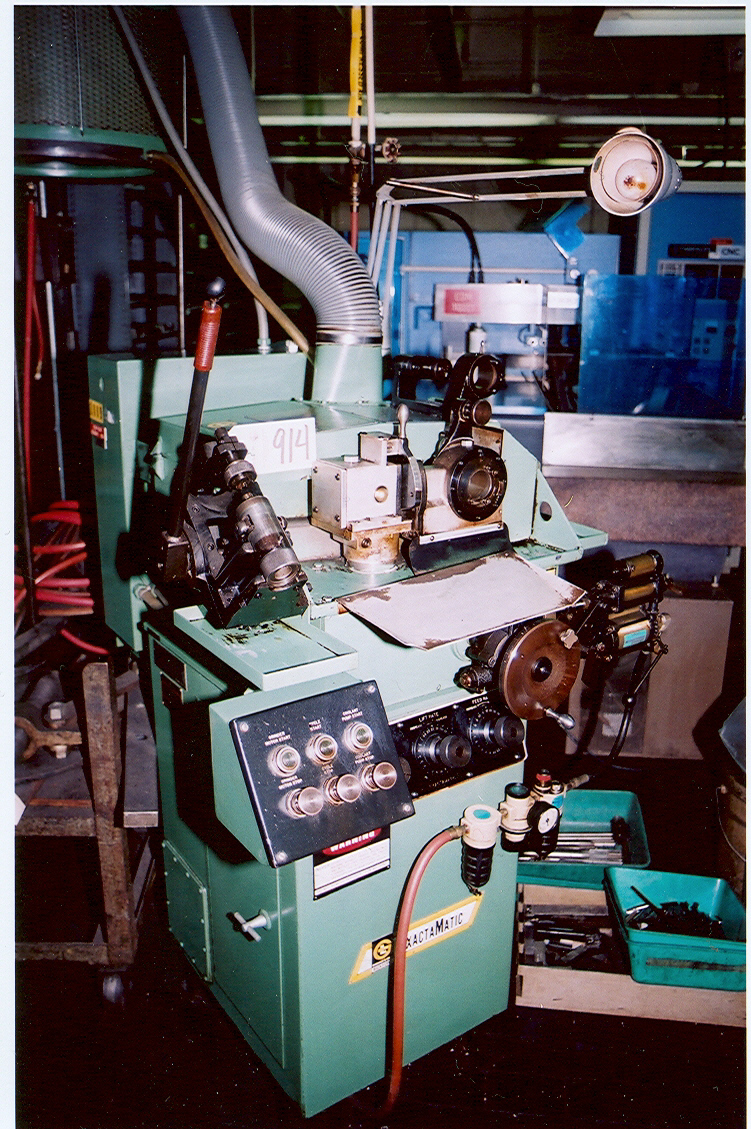

1) Preowned GIDDINGS & LEWIS (BICKFORD) Semi-automatic drill point Grinder
  Model HC Exactamatic, New 1978
 Drill point type and capacities:
 conventional point 1/16" to 1 ½" diameter
 helical point 1/16" to 1" diameter
 racon point 1/16" to 1" diameter
 split point 1/16" to ½" diameter
 pyrcon (four facet) 1/16" to 1" diameter
 Grinding wheel size 12" diameter x 5" bore x ¾" face
 Drill point included angles from 90° to 140°

 EQUIPPED WITH:

 Capability to handle all types of 2-fluted, right hand drills
 Lip clearance angle adjusted from the operator's control console
 Point angle varied from by angular adjustment of workhead
 Cam action-generated rotary motion in all three axes set at the operator's control console
 Built-in cam-formed wheel dresser
 Bellows airfeed attachment

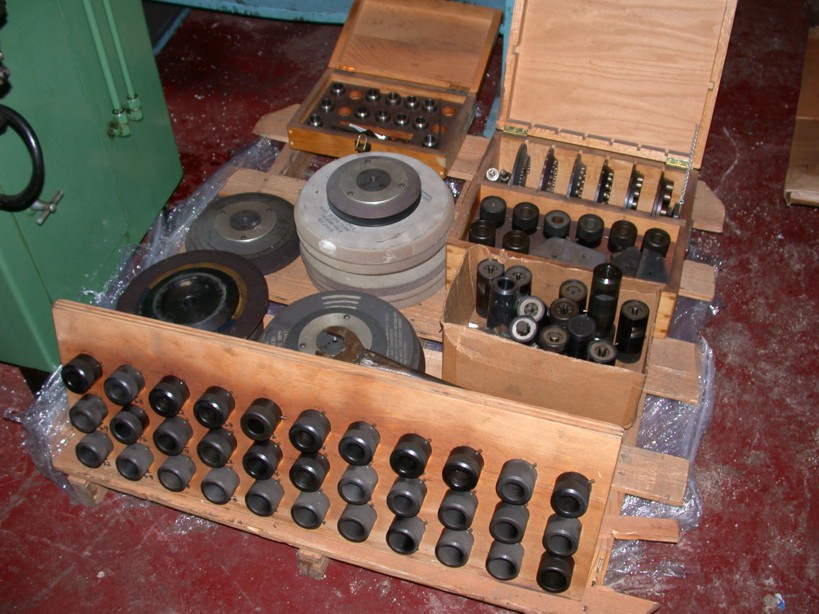

 (5) wheels mounts with (15) wheels
 (6) quick-change bushing index plates
 (20) rubber flex collet holders with (8) extra flex collets from 1 1/64" to 1 ½" diameter capacity
 (10) Cams
 (33) Quick-change drillholder sleeves from 1 1/64" to 1 ½" diameter capacity
 (12) expandable collets
 (2) wheel balancing arbors

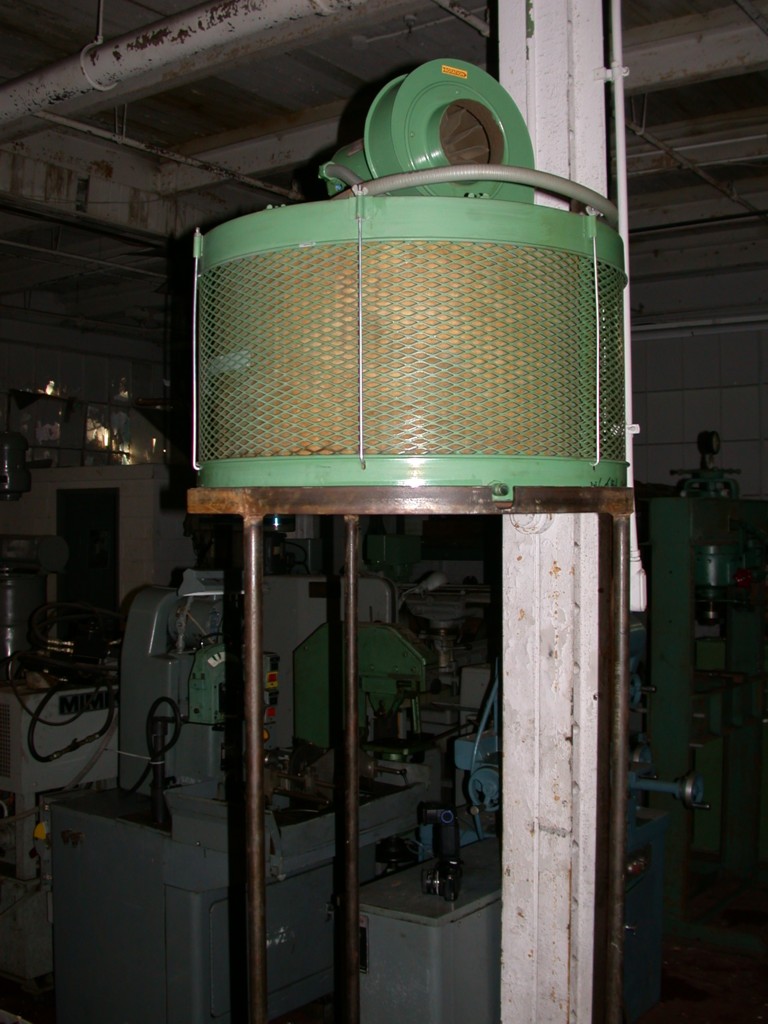

 Aget Mistkop oil mist collector with stand
 Work light
 H.P. coolant pump motor
 ¼ H.P. workhead motor
 1 H.P. grinding wheel drive motor and electrical controls
 3/60/575 volt controls with transformer for 3/60/230 or 460 volt input
 Approximate weight: 1,200 lbs.

 Condition: Excellent
