Reference Number: 134847
31.5" x 39.4" x 144"Price: On Request

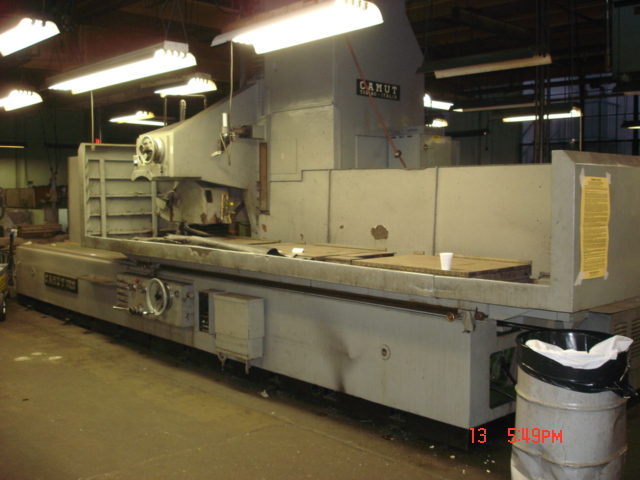

CAMUT (Made in Italy)
High Column
Hydraulic Surface Grinder
With Automatic DownFeed
Model: TR-2-3000M New: 1971
Specifications:
Table Working Surface:.............. 27.56" X 148"
Maximum Table Travel:...................... 145.7"
Maximum Height Table
to new 22" dia. Wheel:.................... 39.37"
Maximum Height Table
to new 15" dia. Wheel:.................... 42.91"
Wheel Cross Travel: ........................ 31.5"
Wheel Size: ......... 22" Diameter 6" W x 8" Hole
Variable Table Speeds: ............ 3.94 - 98 FPM
Automatic Crossfeed Rates:............ .12" to 3"
Auto Downfeed Rates (10 steps)...... .0002"-.002"
Wheel Speed: ........................... 1152 RPM
Approx. Weight:...................... 68,200 lbs.
Floor Space:........... 360"L x 150" W x 168" High
EQUIPPED WITH:
Automatic Incremental Downfeed of wheel (10 steps)
Full Hydraulic Operation
Automatic Vertical Downfeed may be programmed
with wheel cross reversal or table reversal
(single or double)

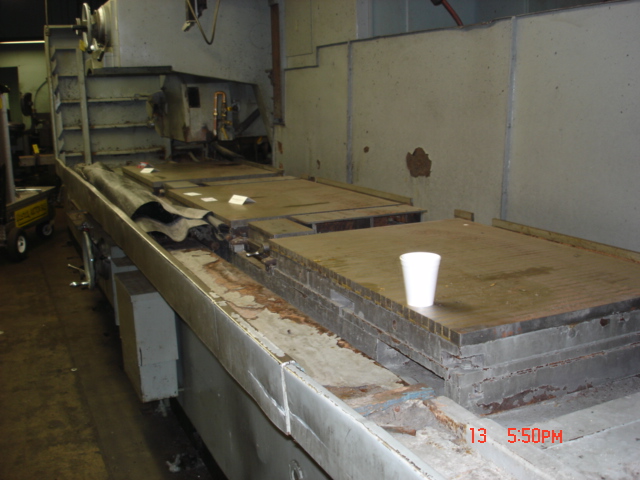

(3) 27-1/2" x 39-5/8" EMC Electromagnetic
Chucks with Variable Control
Wheel Dresser
(4) Wheel Mounts with Grinding Wheels
Way covers

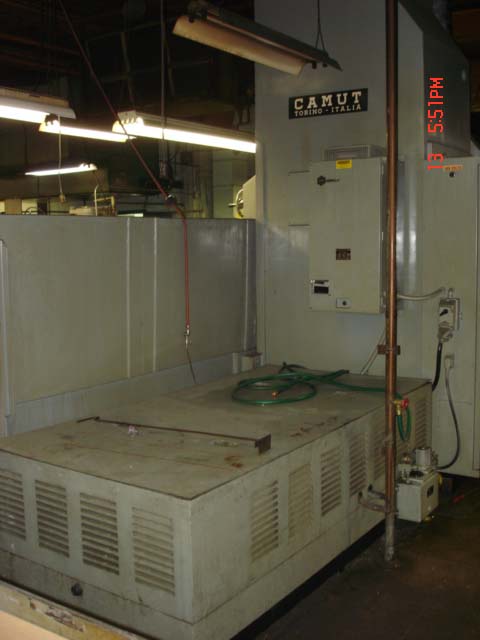

EXL200 Casven Coolant separator (1200 liter cap.)
15 H.P. Vichers Dual Delivery Pump System
50 H.P. Wheel Drive Motor
3/60/460 Volt Electrics
F.O.B. WILMINGTON, DE
