Reference Number: 134977

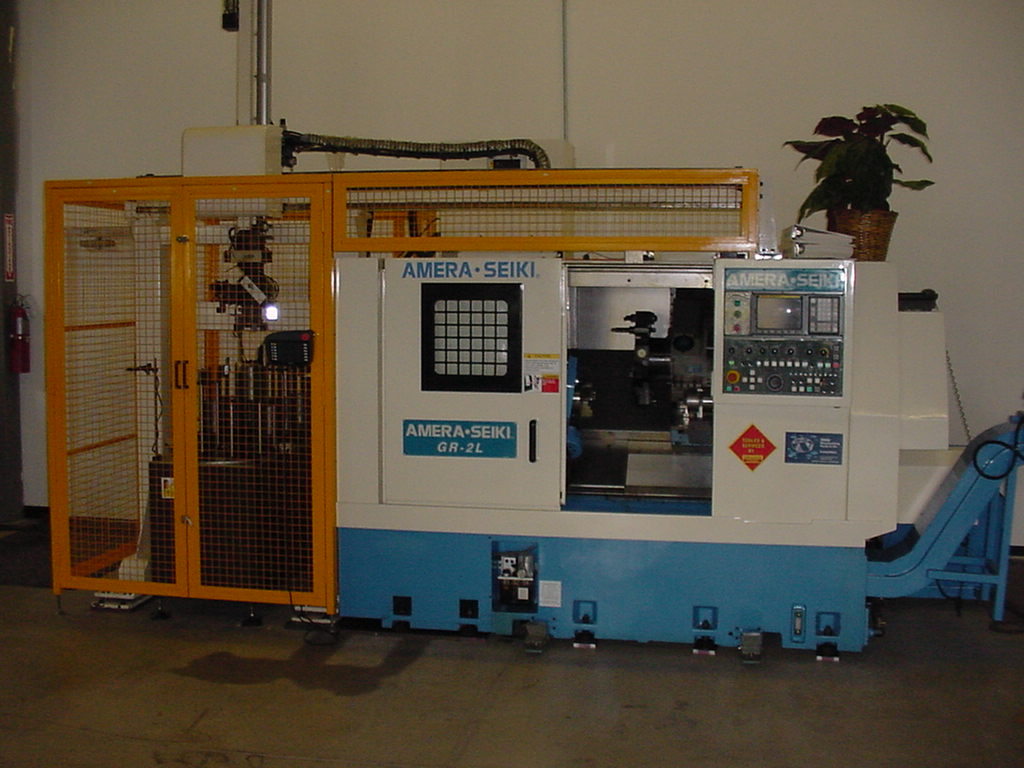

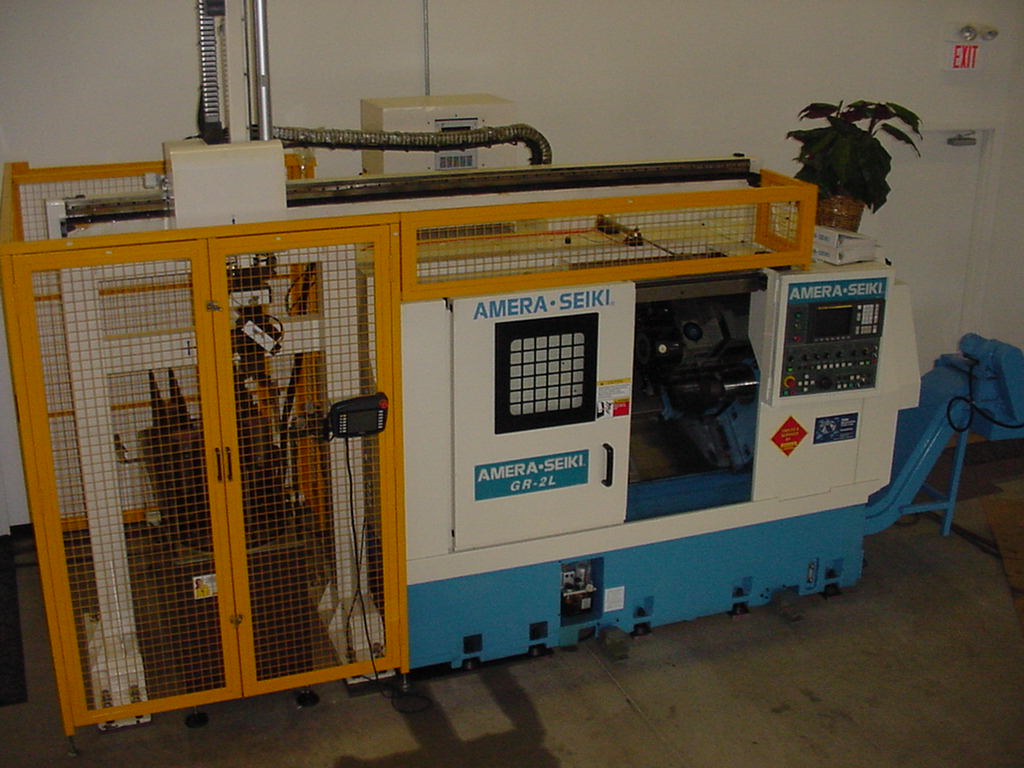

DEMO MFG 2003 AMERA.SEIKI GR-2L TURNING CENTERPrice: On Request
STANDARD EQUIPMENT

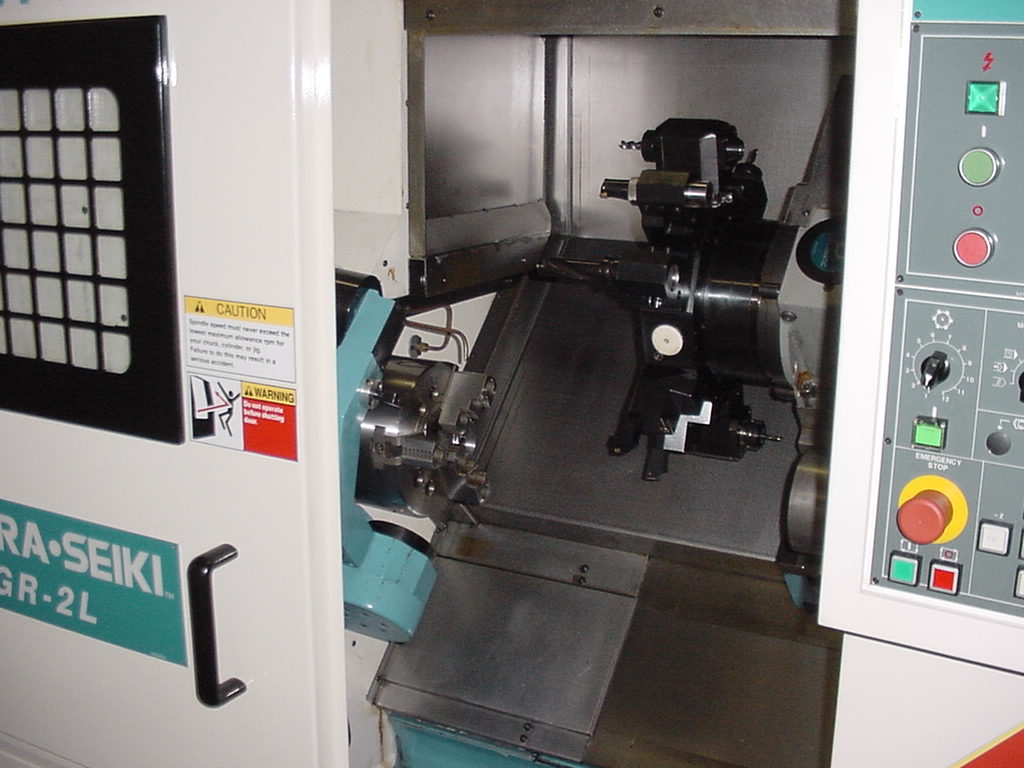

8" Kitagawa 3-Jaw Hydraulic Chuck (main spindle) Full C Axis
5" Kitagawa, Sub Spindle w/1 Degree Index Sub Spindle Control
2" Bar Capacity (2.54"spindle bore)
21.6" Turning Length (23.62")
9.25" Max turning Diameter
25 HP Main, 7.5 HP Sub, 5 HP Live tools

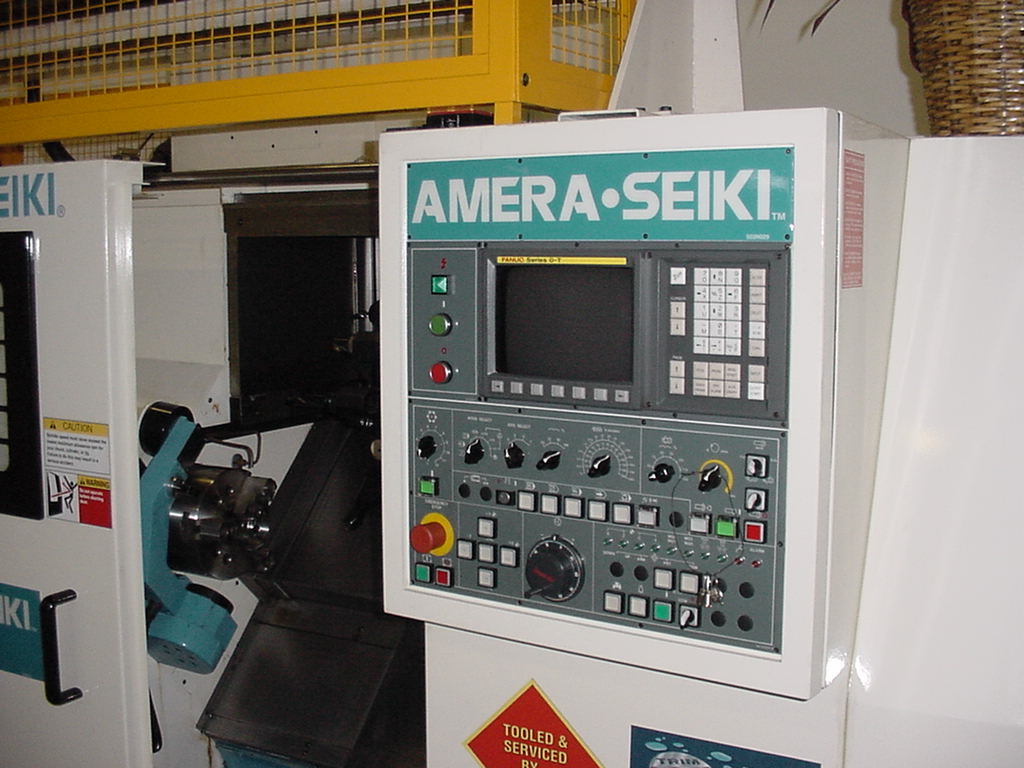

Fanuc OTC, 32-Bit Control
50 to 5000 RPM Spindle Speed (both)
25HP AC Spindle Motor (max rating)

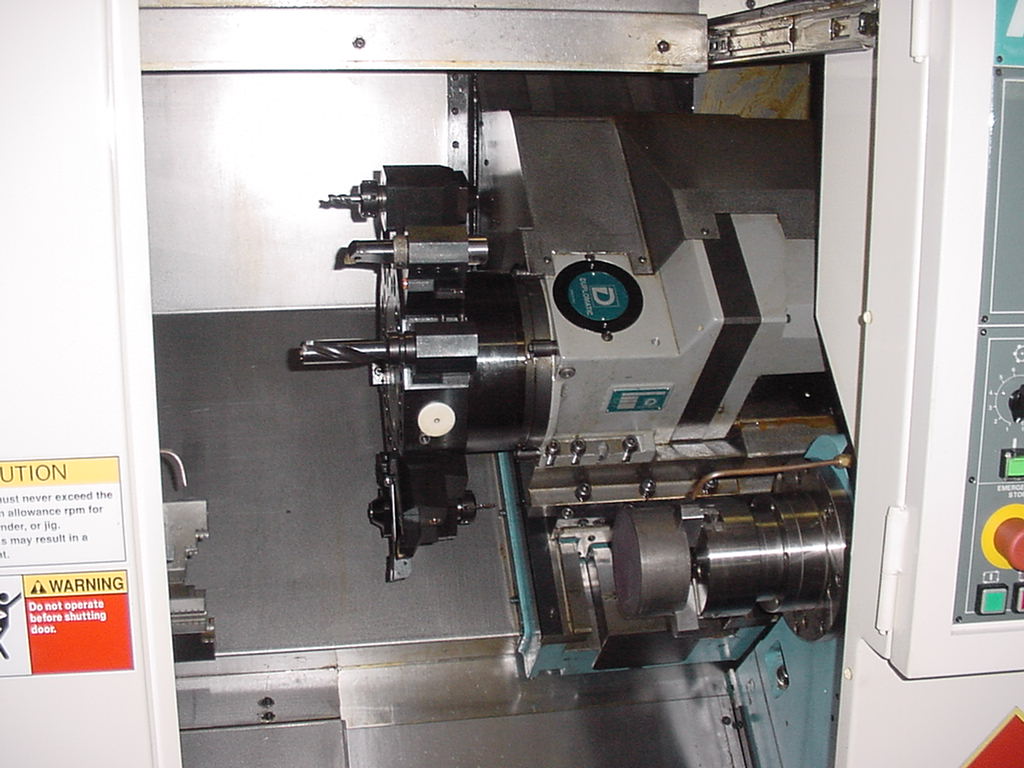

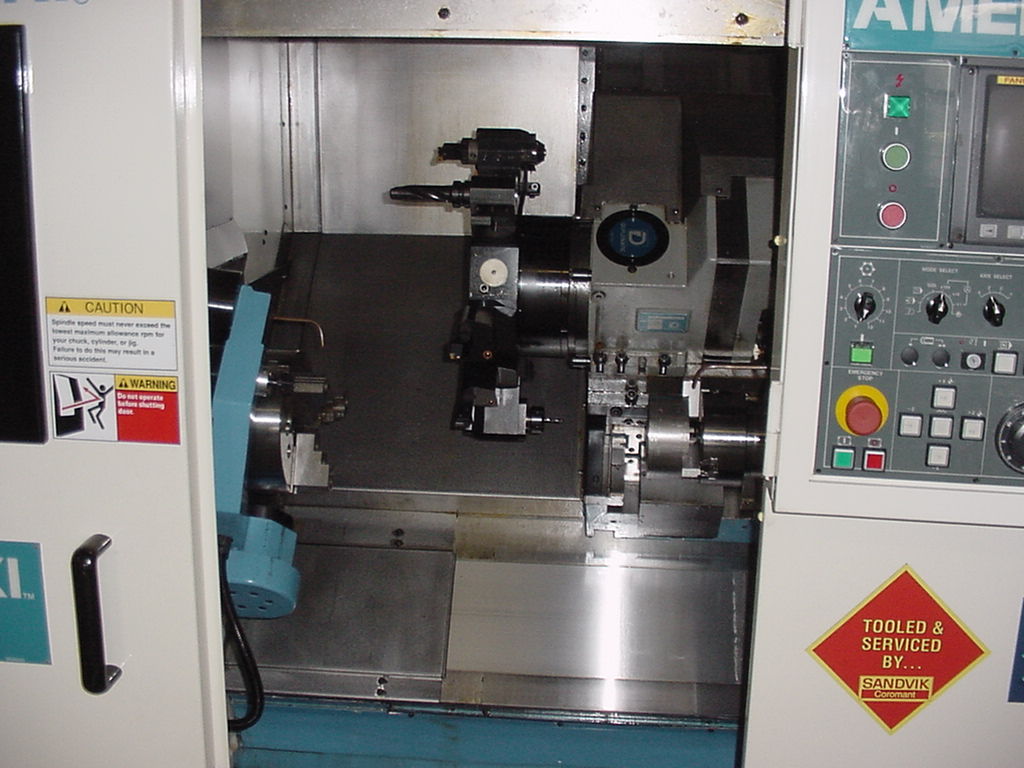

12 Station VDI Power Turret (6 live positions)
Tool Setter
0.3 Seconds/Station Turret Indexing
945 IPM Rapid Traverse
45 Degree Slant Bed
Chip Conveyor
Coolant System
High Intensity Work Light
Cycle Stop Alarm Light
Set of Amera-Seiki Tool Holders
X-Axis Rotary Tool Holder (O.D. mount w/sub spindle) X (3)
Z-Axis Rotary Tool Holder (O.D. mount w/sub spindle) X (3)
Gantry Loading System w/Stacker (10 station rotary work table)
Protective Fence Enclosure
Automatic Lube system
Chip Cart
MACHINE IS NEW, AIR CUT ONLY
Installed 90-Day Warranty on Parts / 2-Year Warranty on Control
List Price was $ 242,500.00
