Reference Number: 135003
Price: $2,950

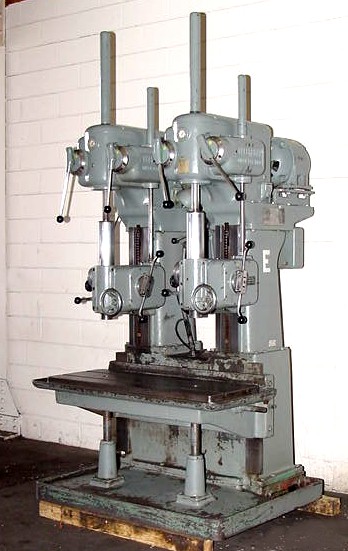

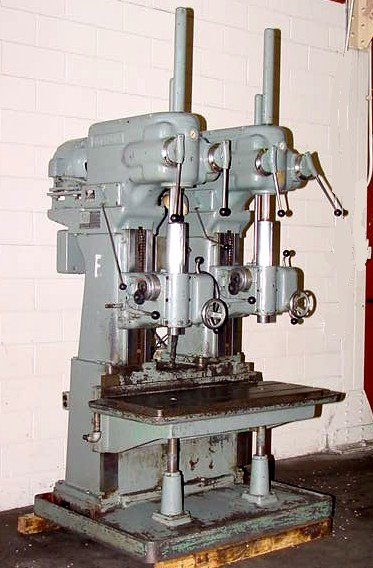

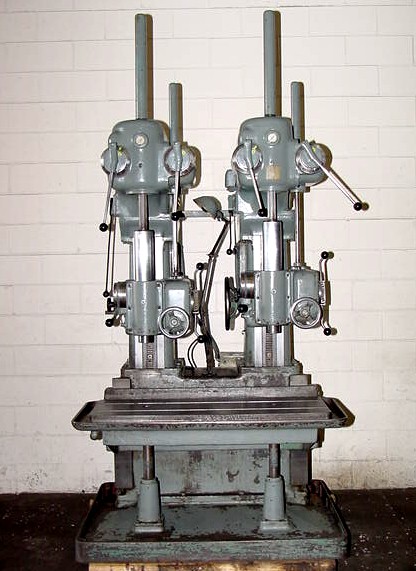

25" CLEEREMAN TWO SPINDLE DRILL PRESS SPECIFICATIONS:
MODEL: BOX COLUMN S/N: 12C1252, 12C1253 NEW:1953
CENTER OF CIRCLE ................... 25"
SPINDLE TAPER ...................... #4MT
QUILL TRAVEL POWER ................. 12"
QUILL TRAVEL BY HAND ............... 12-1/2"
ADJUSTMENT OF SLIDING HEAD ......... 18"
VERTICAL ADJUSTMENT OF TABLE ....... 12"

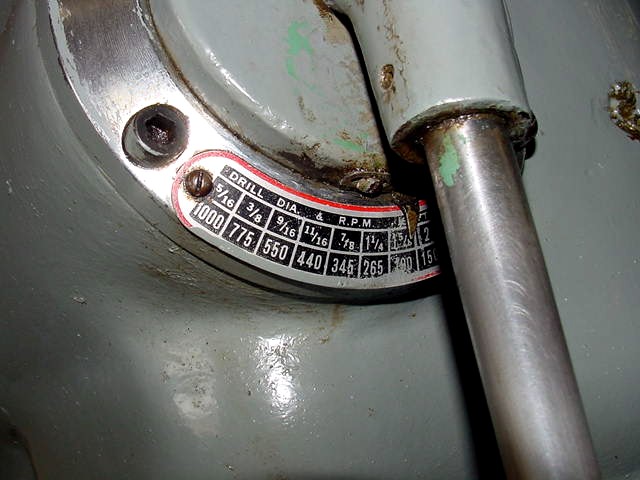

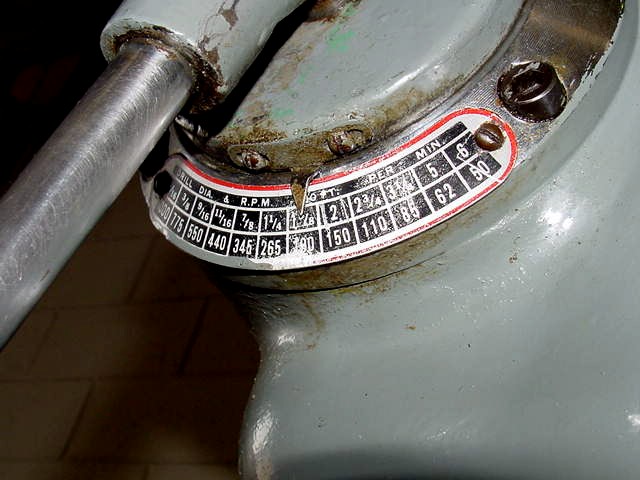

SPINDLE SPEEDS(12) ................. 50 - 1000 RPM

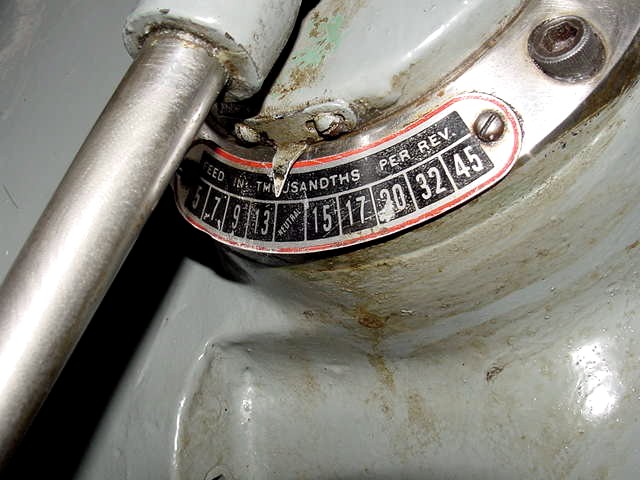

SPINDLE FEEDS(9) ................... 5,7,9,13,15,17,
20,32, &45 IPM

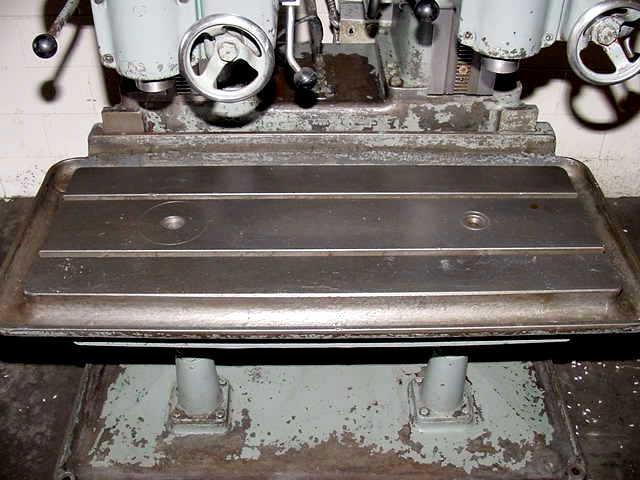

TABLE WORKING DIMENSION ............ 18" x 48"
TABLE SIZE WITH COOLANT TROUGH ..... 24" x 53-1/2"
APPROXIMATE MACHINE DIMENSIONS...... 54" W x 55"D x 110"H
EQUIPPED WITH:

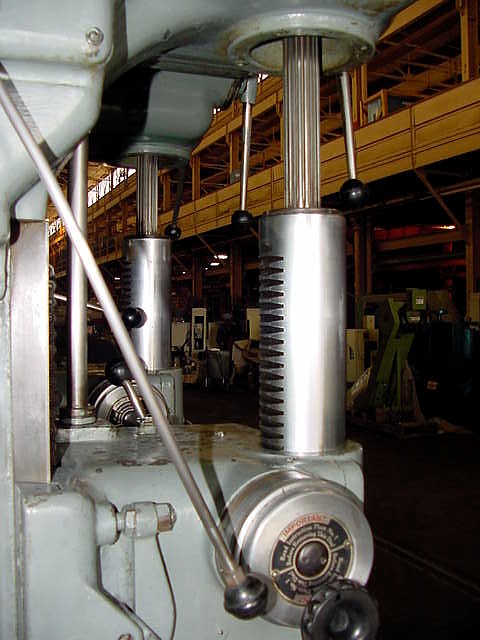

POWER DOWNFEED ON BOTH SPINDLES
COOLANT

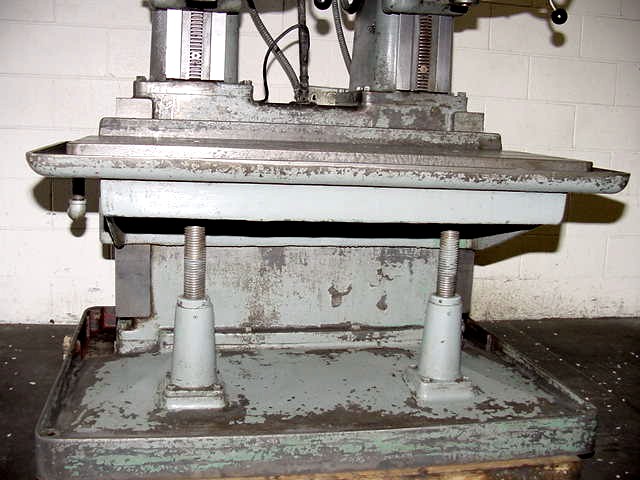

TABLE ELEVATION THRU HAND CRANK & TWIN ELEVATING SCREWS

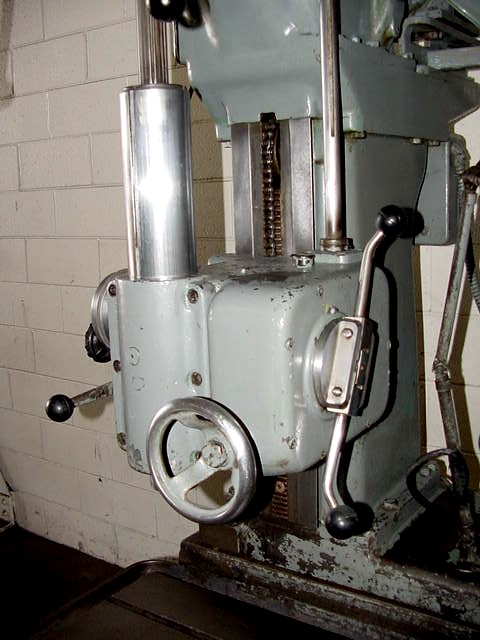

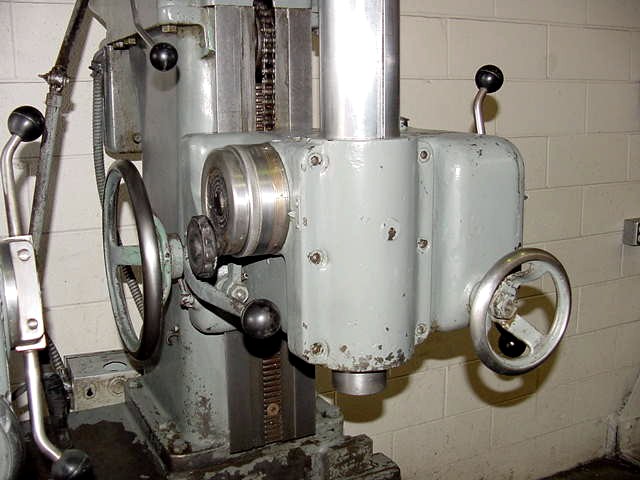

SLIDING HEAD

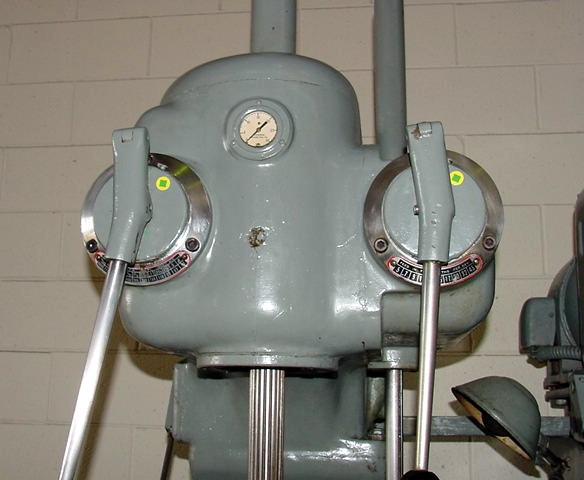

5 HORSE POWER SPINDLE HEADS
MACHINE IS WIRED FOR 3 PHASE 60 CYCLE 440 VOLT OPERATION
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
