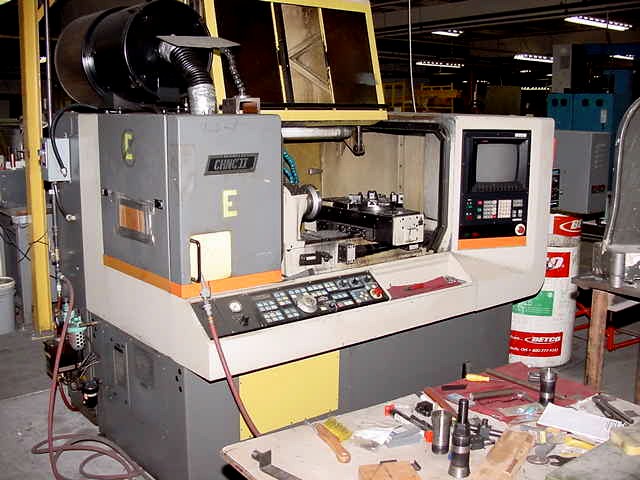

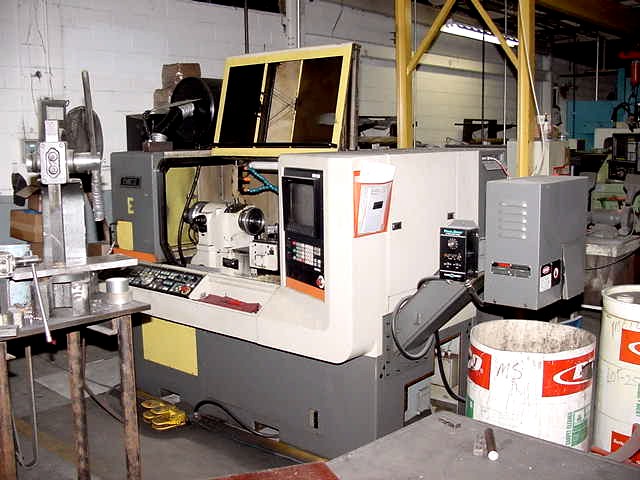

      1-5/8" HARDINGE SUPER PRECISION CNC LATHE
           MODEL: CHNCII       NEW: 1987

 SPECIFICATIONS:

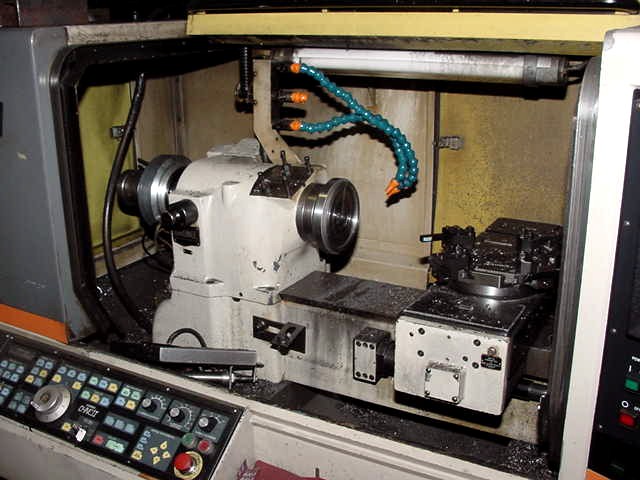

 SPINDLE -
 SPINDLE CONFIGURATION ................. ANSI A2-5"
 HOLE THROUGH SPINDLE .................. 1-7/8"
 16C COLLET CAP. ....................... 1-5/8"
 SPINDLE SPEED RANGE (1 RPM STEPS) ..... 50 TO 5,000 RPM
 AC SPINDLE DRIVE (100% POWER RATING) .. 7.4 HP
 AC SPINDLE DRIVE (135% POWER RATING) .. 10  HP
 AC SPINDLE DRIVE (162% POWER RATING) .. 12  HP

 CAPACITY -
 MAX. SWING OVER BED ................... 14"
 MAX. THREADING DIA. ................... 8"
 MAX. TURNING DIA. ..................... 8"
 MAX. FIXTURE DIA. ..................... 9"
 MAX. ALLOWABLE WEIGHT ON SPINDLE ...... 75 LBS.
   (INCLUDING WORKHOLDING DEVICE)

 TURRET -
 NO. OF STATIONS ....................... 8
 SQUARE TOOL SIZE (STANDARD) ........... 3/8"
 ROUND TOOL DIA. (STANDARD) ............ UP TO 5/8"
 MAX. X-AXIS TRAVEL .................... 4-1/2"
 MAX. Z-AXIS TRAVEL .................... 12"
 MAX. X AND Z AXIS FEEDRATE ............ 200 IPM
 MAX. DIST. FROM TURRET FACE TO SPINDLE  12-1/2"
 INDEXING TIME (STATION 1 TO 8) ........ 2 SECONDS
 INDEXING TIME (STATION TO STATION) .... 1 SECOND

 MISCELLANEOUS -
 MIN. PROGRAMMABLE RESOLUTION .......... .000010"
 MIN. TOOL OFFSET CAPABILITY ........... .000010"
 COMPRESSED AIR REQUIREMENT ............ 70 MI TO 90 MAX
                                        PSI
 COOLANT SUMP CAP. ..................... 30 US GAL.
 APPROX. SKIDDED WEIGHT ................ 5,000 LBS.
 MACHINE DIMENSIONS (LENGTH) ........... 91-1/2"
 DIMENSIONS w/CHIP REMOVAL SYSTEM 126.5"Lx61.5"x64.5"LxWxH
 HEIGHT WITH GUARD DOOR RAISED ......... 98-3/4"

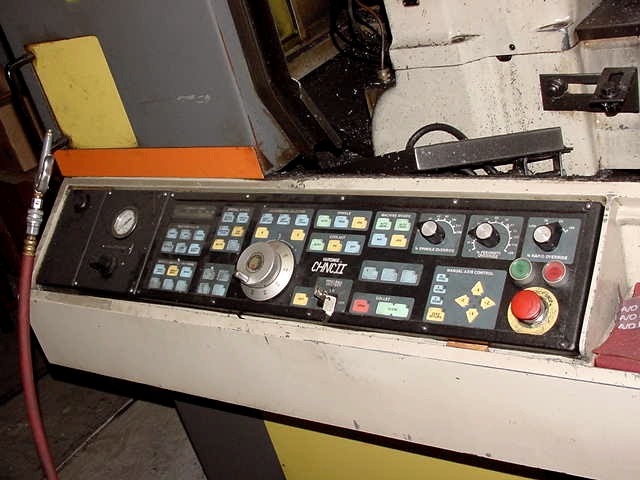

 GENERAL NUMERIC 10TF CNC CONTROL FEATURES -

 DATA INPUT / OUTPUT
 INCH/METRIC DATA SELECTION
 ALPHA-NUMERIC KEYBOARD FOR MDI (MANUAL DATA INPUT)
   TOOL DATA CHANGES AND PART PROGRAM EDITING
 RS-232-C SERIAL INTERFACE

 PROGRAMMING FUNCTIONS -
 SYMBOLIC FAPT TURN CONVERSATIONAL PROGRAMMING w/COLOR
   GRAPHIC DISPLAY
 CONSTANT SURFACE SPEED PROGRAMMING
 DIRECT RPM PROGRAMMING
 IPM / IPR (MMPM/MMPR) PROGRAMMING
 ABSOLUTE / INCREMENTAL PROGRAMMING
 DIA. PROGRAMMING
 DECIMAL POINT PROGRAMMING
 TOOL NOSE RADIUS COMPENSATION
 PROGRAM SEARCH / SEQUENCE NUMBER SEARCH
 HARDINGE CUSTOM MACRO CYCLES
 STANDARD LEAD THREADING
 WORK COORDINATE SYSTEM (PART POSITION OFFSET)

 OPERATION -
 SPINDLE SPEED RANGE (50 TO 5000 RPM)
 200 IPM (5 MPG) X AND Z AXIS TRAVERSE RATE
 MANUAL PULSE GENERATOR (MPG) HANDWHEEL

 TOOL DATA OFFSETS - 32 PAIR /AXIS
 TOOL POSITION OFFSETS - 32 PAIR / AXIS
 SPINDLE JOG

 MISCELLANSEOUS -
 STORED PITCH ERROR COMPENSATION
 DRY RUN
 MACHINE LOCK (PROGRAM TEST MODE)

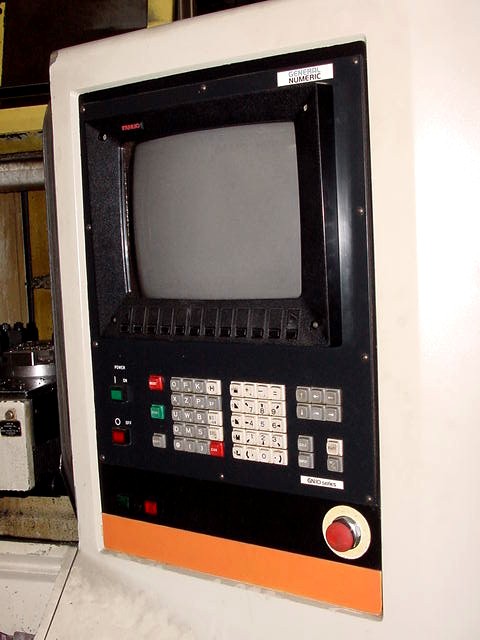

 14" COLOR CRT FOR GRAPHIC DISPLAY - GRAPHIC TOOL PATH
   SIMULATION WITH DATA DISPLAY IN ENGLISH TEXT
 SPINDLE LOAD METER
 REVERSAL ERROR COMPENSATION (X AND Z AXIS)
 HIGH ACCURACY ENCODER FEEDBACK SYSTEM
 SOFTWARE OVERTRAVEL LIMITS
 SYSTEM TEST AND DIAGNOSTICS
 OPERATOR MESSAGES

 EQUIPPED WITH:
  - FANUC 10TF CONTROL WITH FAPT PROGRAMMING
  - PARTS CHUTE

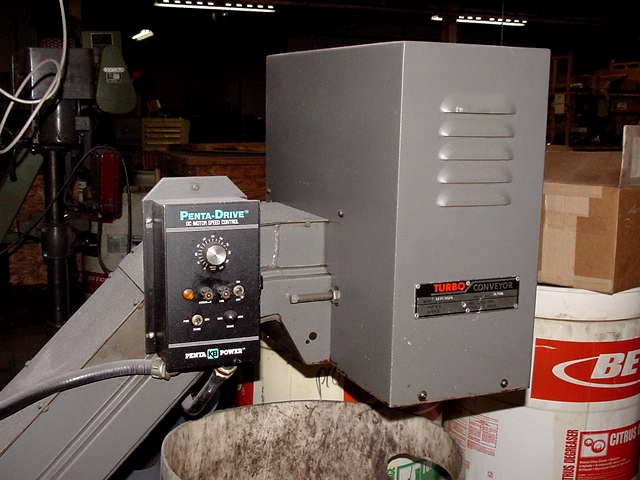

  - CHIP CONVEYOR
