Reference Number: 135049

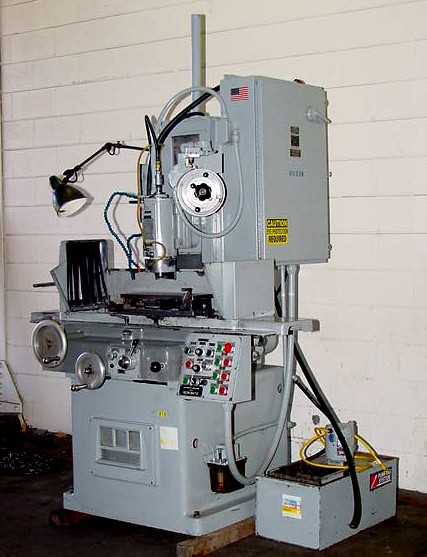

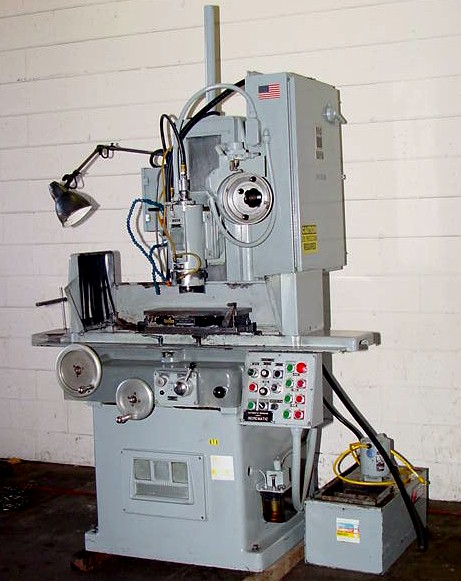

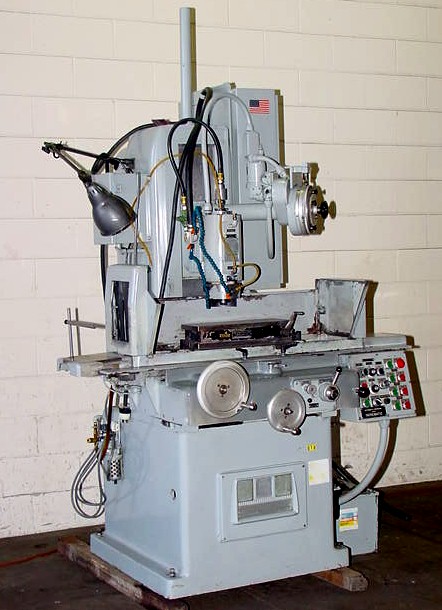

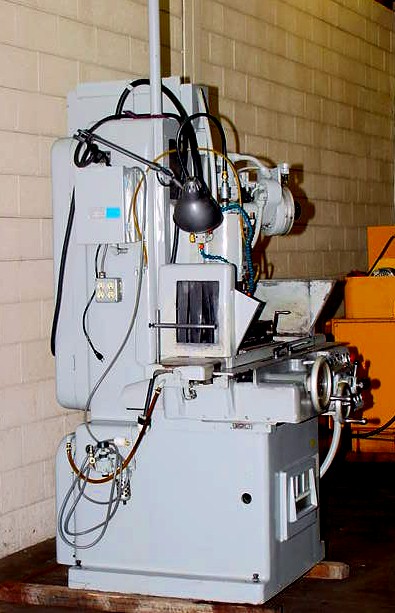

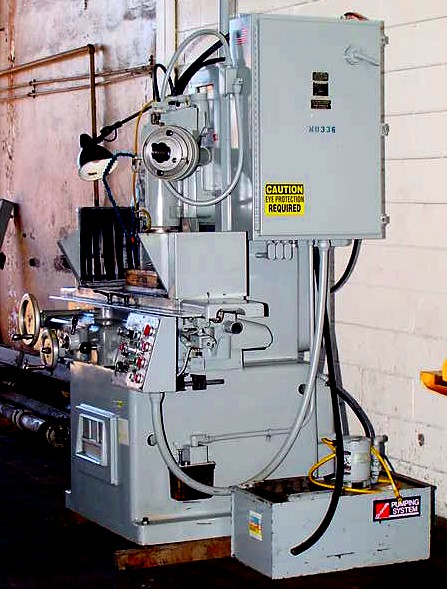

6" X 18" GALLMEYER & LIVINGSTON "VERTICAL SPINDLE"
 SURFACE GRINDER w/AUTO INCREMENTAL DOWNFEED

 ** BEAUTIFUL DESIGN - BUILT TO LAST!! **
 ** MADE IN USA - THIS IS A SUPERIOR QUALITY MACHINE !! **

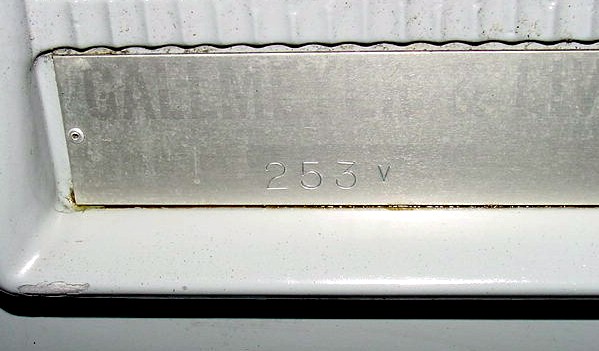

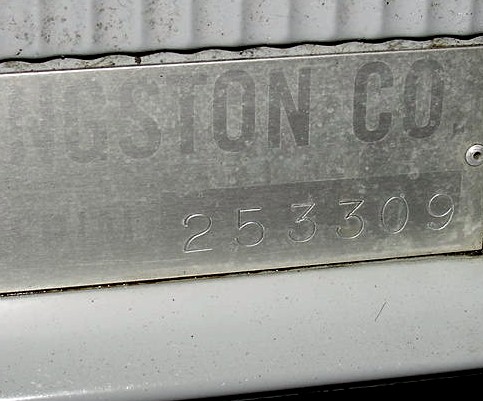

 MODEL: 253V      S/N: 253V309      NEW: APRIL 1994

 HYDRAULIC TABLE TRAVEL, LONGITUDINAL .............. 23-1/2"
 HYDRAULIC TABLE TRAVEL, CROSS ...................... 6-3/4"
 LONGITUDINAL TABLE SPEEDS ................... 1" - 75" IPM
 AUTO CROSS FEED TO TABLE PER STROKE ......... 0.01" TO 1/2"
 CONTINUOUS CROSS SPEED ........................... 120" IPM
 VERTICAL MOVEMENT OF WHEELHEAD ........................ 19"
 AUTO INCREMENTAL DOWNFEED PER TABLE PASS ..0.0001" TO .001"
 GRINDING WHEEL SIZE ...................... 5" DIA. x 1.25"B
 GRINDING WHEEL RPM .............................. 3,600 RPM
 APPROXIMATE FLOOR SPACE ....................... 85"W X 57"D
 APPROXIMATE WEIGHT .............................. 4,250 LBS

  EQUIPPED WITH:

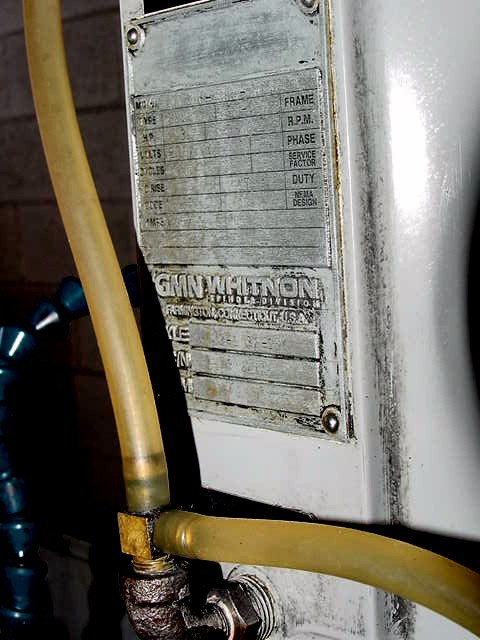

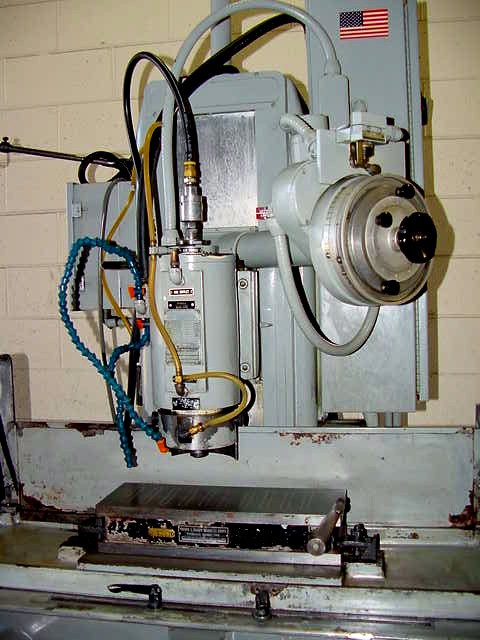

 VERTICAL SPINDLE MADE BY "GMN WHITNON", STYLE 442-1630-190
  (S/N: 302408), 3 H.P. MOTOR/3/60/230-460 VOLT, AIR BEARING
  DESIGN.  UNIT USES A 5" CUP WHEEL QITH 1- 1/4" BORE.

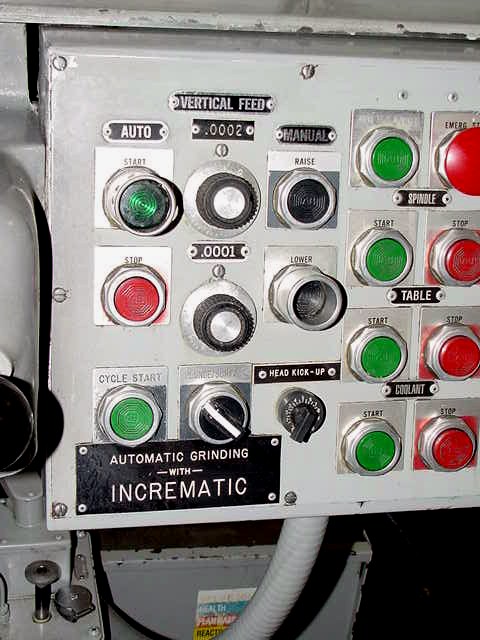

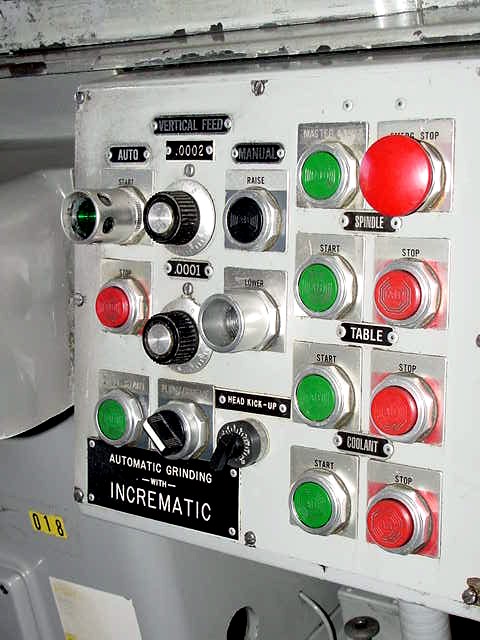

 AUTOMATIC INCREMENTAL DOWNFEED (INCLUDING SADDLE LOCK,
  ADJ. HEAD KICK-UP & VARIABLE SPARK-OUT)
 AUTO TABLE LOAD/UNLOAD POSITION

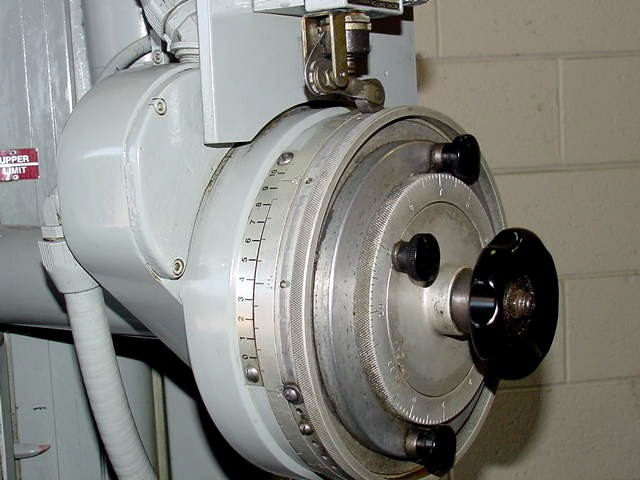

 DUAL RANGE (COARS & FINE) DOWNFEED SYSTEM.  FINE FEED
  ACTIVATED BY INSERTING A PIN IN ONE OF 10 SOCKETS
  RANGING FROM .001" TO .010" ABOVE ZERO SET POINT
  (FEED CAN BE ADJUSTED FROM .0001" TO .010" AT
  EACH TABLE REVERSAL)

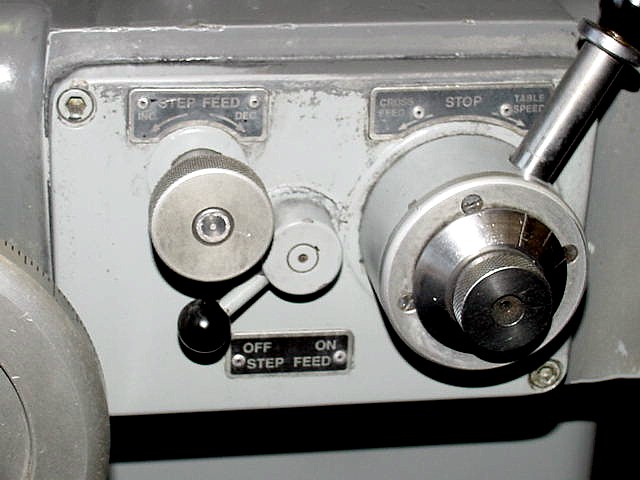

 HYDRAULIC LONGITUDINAL AND CROSS FEEDS
 SLOW SPEED TABLE CONTROL - 1" TO 75" IPM
 AUTOMATIC SLOW SPEED TABLE WITH SWITCH SELECTION FOR
  INITIATION AT EITHER ZERO SET POSITION OR FROM
  .001" TO .010" ABOVE
 POWER ELEVATION OF THE WHEEL (RAPID POSITIONING)
 FACTORY EXTENDED COLUMN (3"), PROVIDING FOR INCREASED
  VERTICAL CAPACITY

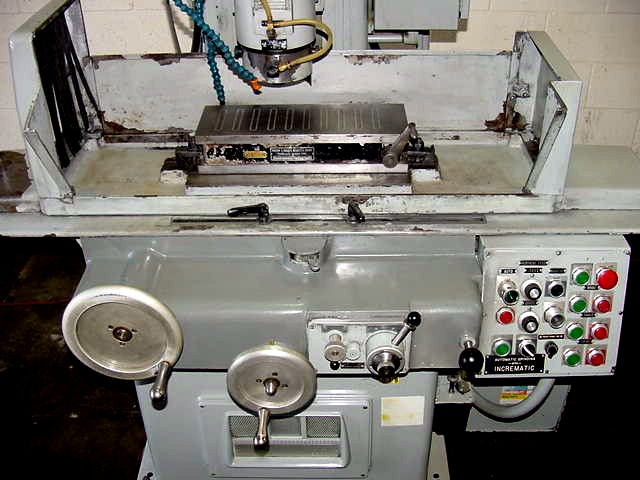

 6" X 18" PERMANENT MAGNETIC CHUCK
 COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS
 1.5 HP 3/60/220-440 VOLT HYDRAULIC SYSTEM MOTOR

 SPECIAL NOTE:
 ORIGINAL AQUISITION COST FOR THIS MACHINE AS DESCRIBED WAS
  OVER $75,000 IN 1994!  HOLY COW!!


  *** LIKE NEW CONDITION & APPEARANCE ***
 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
