Reference Number: 135073

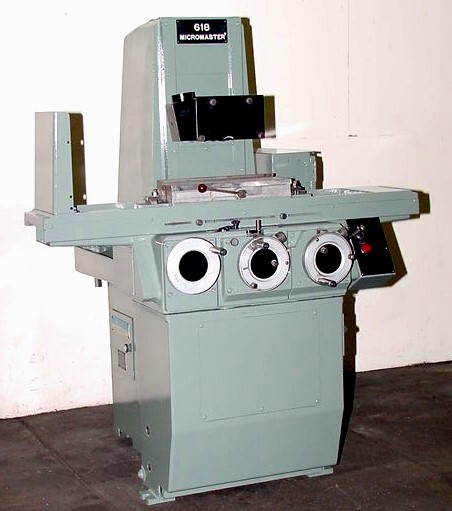

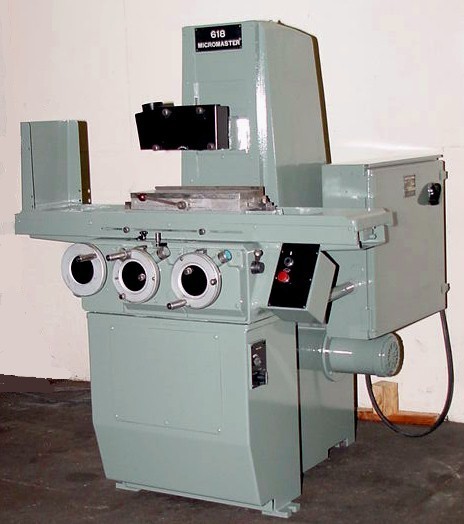

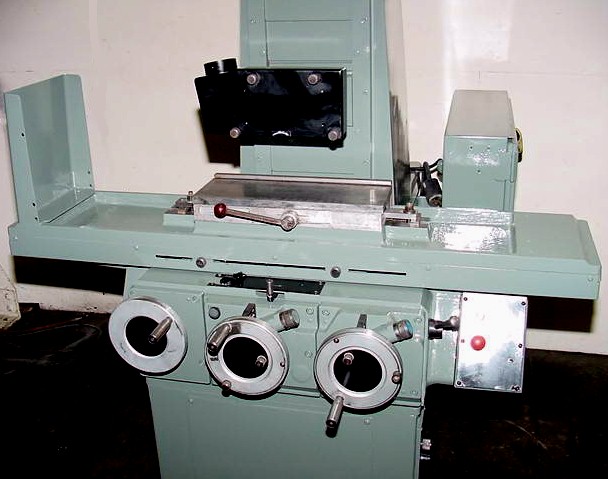

6" x 18" BROWN & SHARPEPrice: On Request
#618 MICROMASTER "SERIES II"
PRECISION HYDRAULIC SURFACE GRINDER

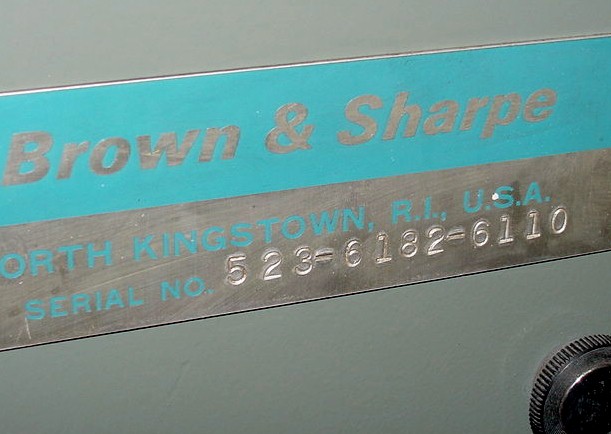

S/N: 523-6182-6110 NEW: 1976
WIDTH & LENGTH GROUND ..................... 6" X 18"
HEIGHT OF WORK GROUND W/STD. 7" WHEEL ...... 15-1/2"
MAXIMUM LONGITUDINAL TRAVEL ................ 22"
LONGITUDINAL TABLE SPEED ................... 5 TO 100 FPM
MAXIMUM CROSS TRAVEL ....................... 7"
AUTOCROSSFEED INCREMENT PER TABLE PASS ..... UP TO 1/4"

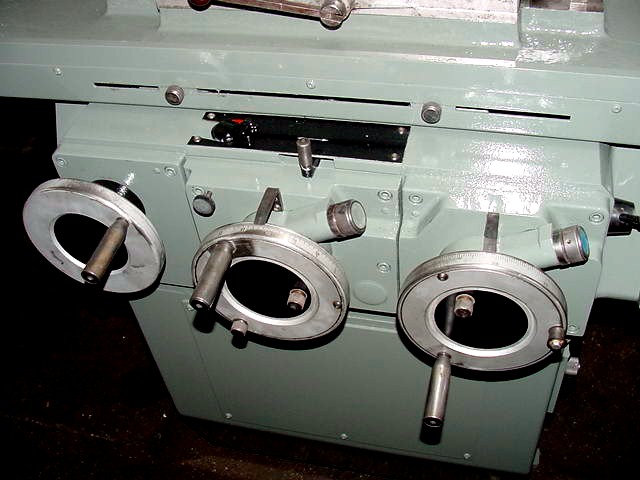

HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
TO READ TO .................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
VERTICAL TRAVEL OF SPINDLE ................. 15-3/4"

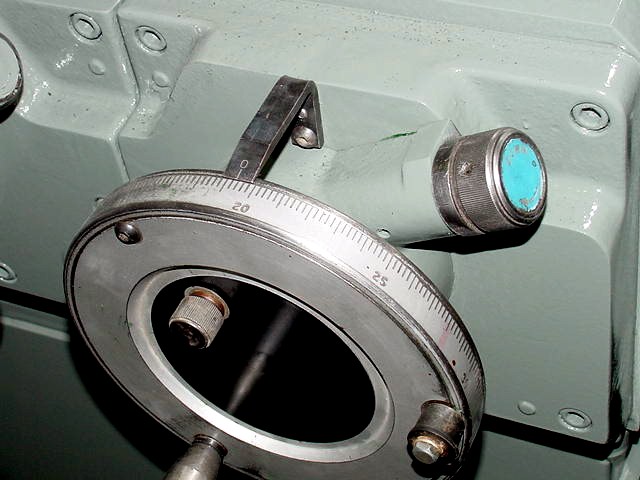

HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
TO READ TO ................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL
IS GRADUATED TO READ TO .................... 0.0001"
APPROXIMATE MACHINE WEIGHT ................. 2,500 LBS
APPROXIMATE FLOOR SPACE .............. 56"L X 62"D X 68"
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
FINE FEED KNOBS FOR VERTICAL & CROSS FEED HANDWHEELS
(.0001" GRADUATION)
1 H.P. BROWN & SHARPE SUPER-PRECISION "ORIFLEX"
SUPER-PRECISION SPINDLE DRIVE

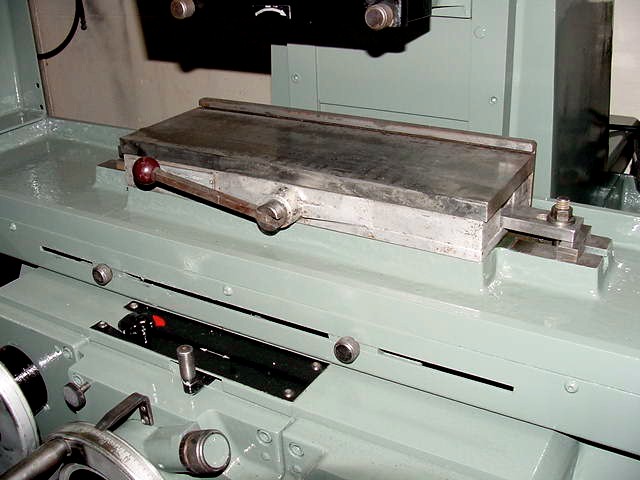

6" X 18" PERMANENT-MAGNETIC CHUCK
SELF-CONTAINED HYDRAULIC SYSTEM

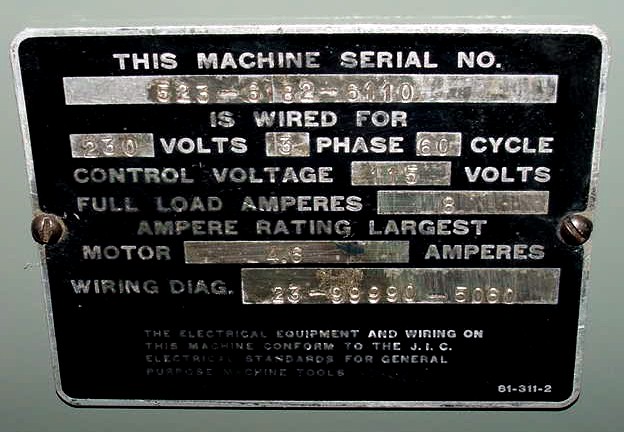

PRESENTLY WIRED FOR 3/60/220 VOLT OPERATION
** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **
* CLEANED, PAINTED, CYCLED!! **
** EXCELLENT CONDITION & APPEARANCE **
