Reference Number: 135426
Cincinnati Milacron Avenger 200MSPrice: On Request
w/ SUB-SPINDLE & LIVE TOOLING
1995 Machine In Excellent Condition
Acramatic 850SX/ CNC w/RS-232 & DNC Port
Equipped With:
Cincinnati 850SX CNC
8" Chuck on main spindle
6" Chuck on Sub-Spindle

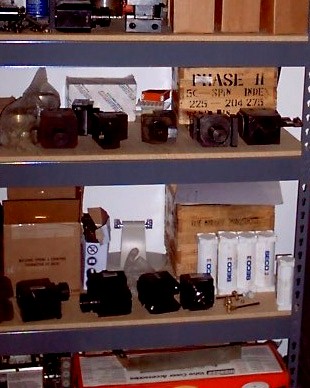

12 LIVE TOOLS , 8 Axial, 4 Radial
Standard Tool Holders
Full C-axis on main & sub-spindle
Vibration Sensor for main spindle

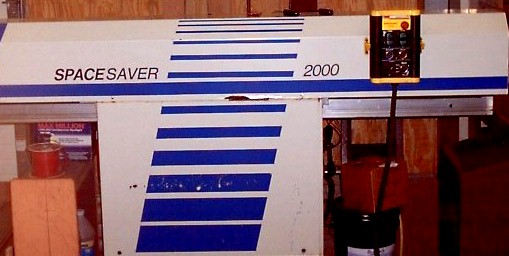

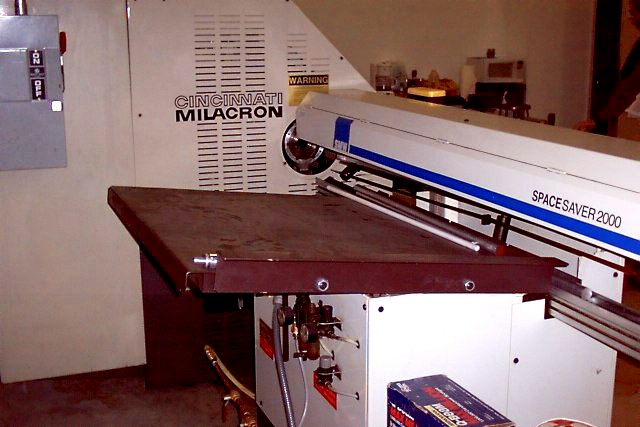

SMW SPACESAVER 2000 AUTO BARFEED
"Step Up" Transformer 208 -460v
Chip Conveyor
Tool Probe
Specifications:
Max. Turning Diameter 10.39"
Swing Over Bed 23.54"
Swing Over Cross Slide 10.55"
Center Distance 20.79"
TURRET:
X-Cross 10.39
Z-Longitud 20.87"
Ball Screw Diameter 1.30"
Tool Positions 12 (6 Live , 6 Manual )
SPINDLE:
Bar Capacity 2" (Round)
Speed Min - Max RPM 30 - 5000 RPM
Spindle Nose A2-6
Spindle Drive Motor 25 HP
Spindle Bore 3.15"
SUB SPINDLE:
Max Speed 5000 RPM
Spindle Drive 10 HP
Dimensions, approx: 128" x 70" x 72"
Weight, approx: 11,500 lbs
