Reference Number: 135536

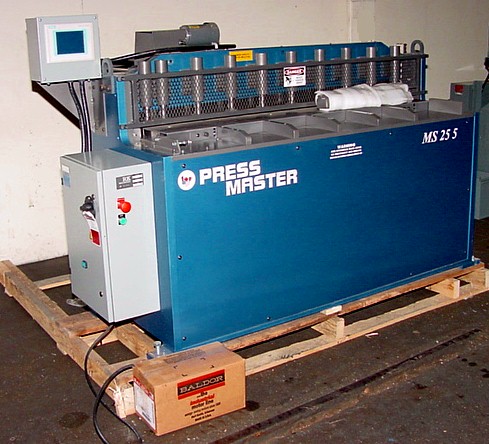

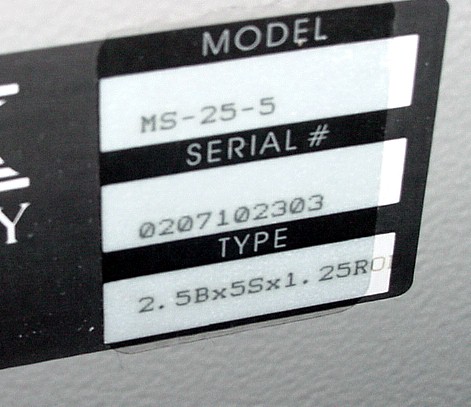

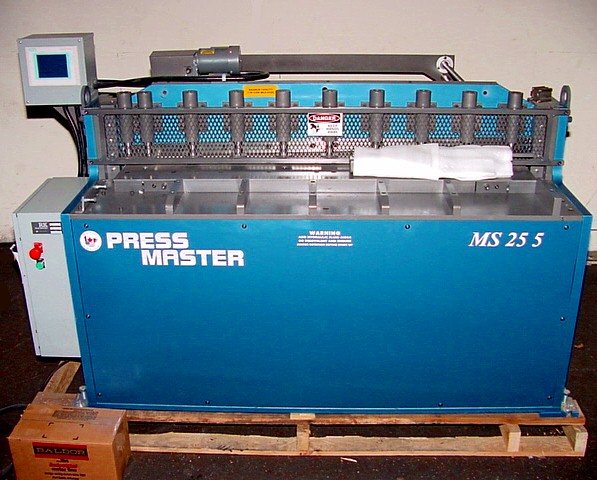

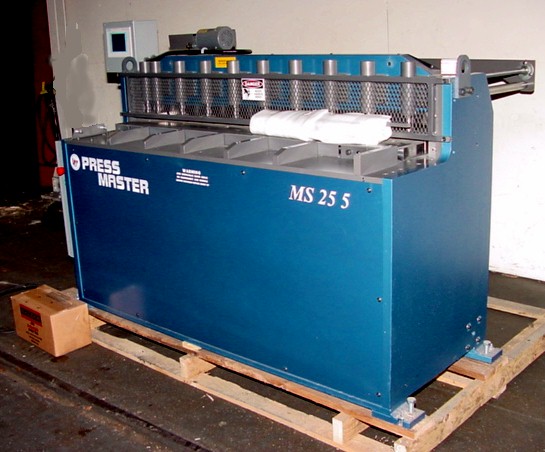

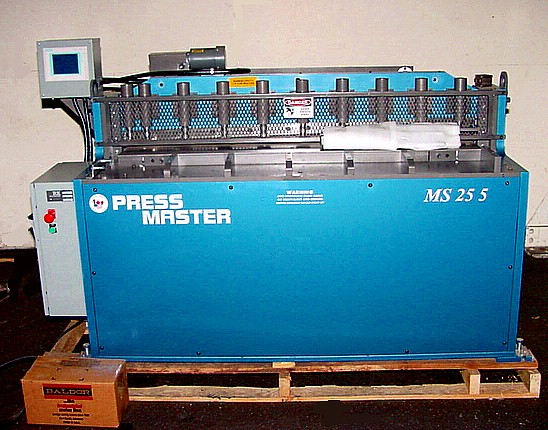

PRESSMASTER MODEL MS-25-5 HYDRAULIC SHEAR
 1/4" x 61" SHEAR w/NC BACKGAUGE
 BRAND NEW IN FACTORY CRATE

  CUTTING CAP. .............................. 1/4"
 CUTTING LENGTH ............................ 61"
 RAKE ANGLE ................................ 1.5" / 62"
 SPM ....................................... 20
 NUMBER OF HOLDDOWN CYLINDERS .............. 10
 MOTOR ..................................... 10 HP 1760 RPM

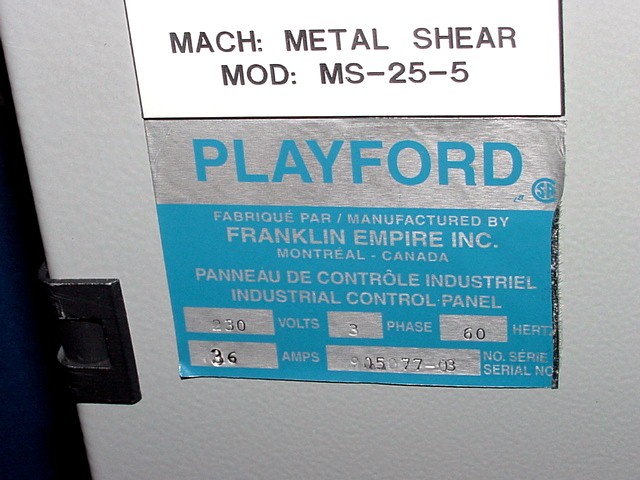

 VOLTAGES AVAILABLE ........................ 230/460/575
                                             3 PH/60 HZ
 TABLE DEPTH ............................... 18"
 TABLE WORK HEIGHT ......................... 34"
 FOOTPRINT ................................. 72" LONG
                                             28" WIDE
 WEIGHT .................................... 4,000 LBS.

 STANDARD FEATURES:
 - EQUIPPED WITH FULLY INTEGRATED HYDRAULIC UNIT,
 LOW WORKING PRESSURE.

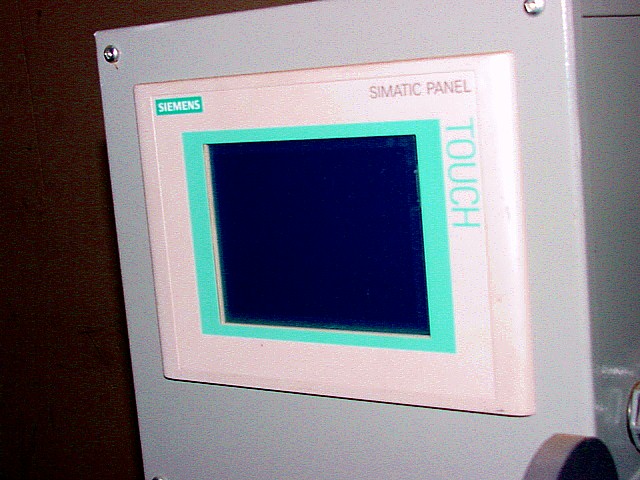

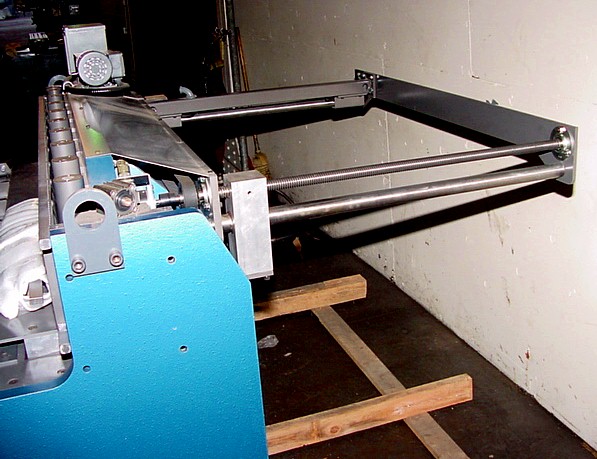

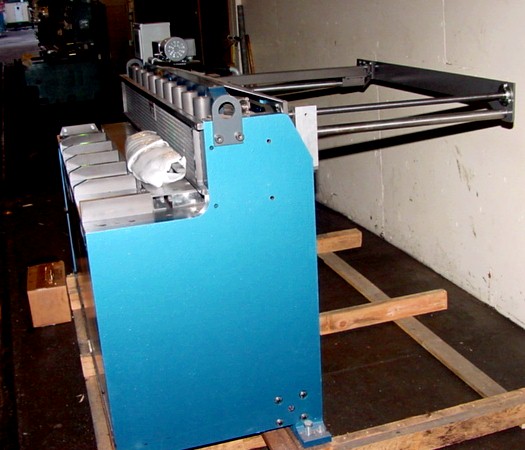

 - A MOTORIZED FRONT OPERATED BACK GAUGE, WITH
 DIGITAL  READOUT AND FINE HANDWHEEL ADJUSTMENT.
 THIS DIGITAL  READOUT FEATURES FRACTIONS OR
 DECIMALS AND AN  INCH/METRIC SWITCHABLE DISPLAY
 - ELECTRIC SOLENOID HYDRAULIC VALVING FOR
 INSTANTANEOUS RESPONSE.
 - CLEAN HYDRAULIC OIL IS ASSURED BY A RENEWABLE
 CARTRIDGE TYPE FILTER IN THE RETURN LINES.
 - REMOTE FOOT PEDAL CONTROL, IF RELEASED ANYWHERE
 IN THE STROKE THE BLADE RETURNS TO THE "UP"
 POSITION.
 - LOW PROFILE DESIGN, UNDER-DRIVEN. TWO DOUBLE
 ACTING CYLINDERS WORKING UNIFORMLY.
 - BLADES MADE FROM D2 HIGH CARBON PREMIUM QUALITY
 TOOL STEEL.
 - THE BOTTOM BLADE CAN BE USED ON ALL 4 SIDES.
 - THE TOP BLADE HAS REVERSIBLE CUTTING EDGES WITH
 5 DEGREE BACK BEVEL TO ENSURE A CLEAN CUT.
 - LOW RAKE ANGLE TO MINIMIZE WORKPIECE DISTORTION.
 - SQUARING ARM COMPLETE WITH MEASUREMENT
 INDICATOR.
 - FOR EASY HANDLING OF MATERIAL THE 5 SUPPORT ARMS
 ARE ROUNDED, THIS ALSO PREVENTS MARRING MATERIAL
 WHILE LOADING.
 - LOW SPEED BALDOR ELECTRIC MOTOR.

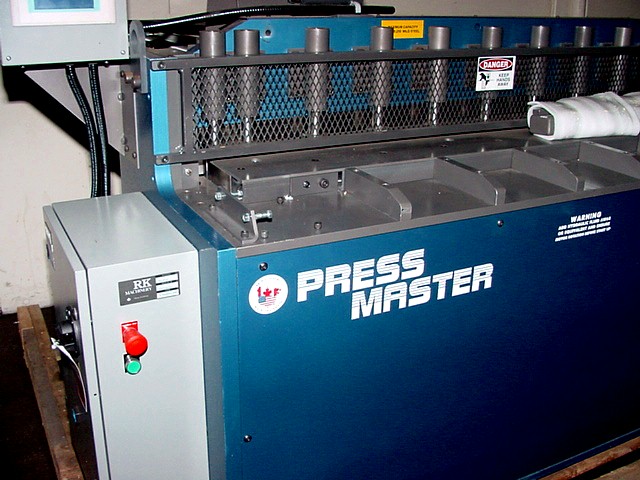

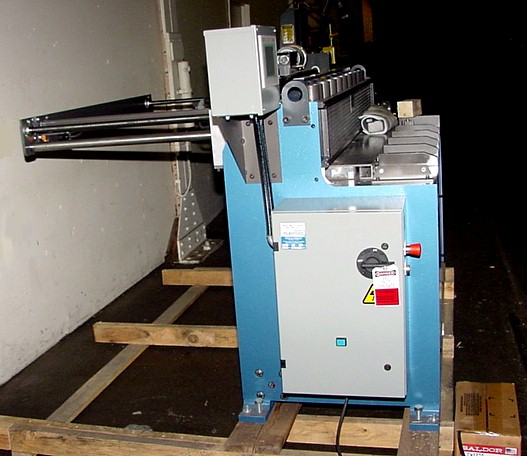

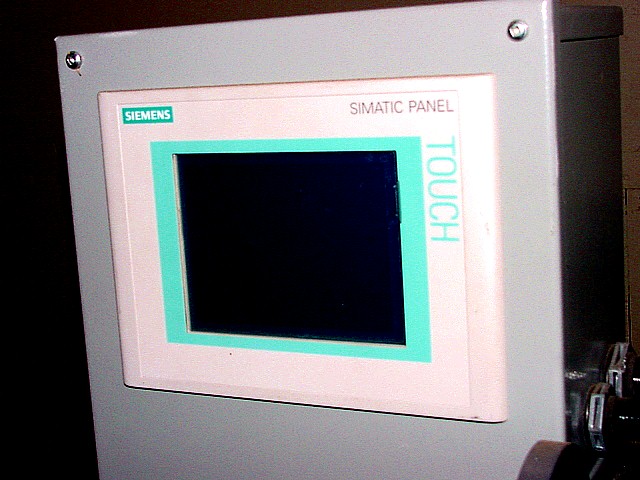

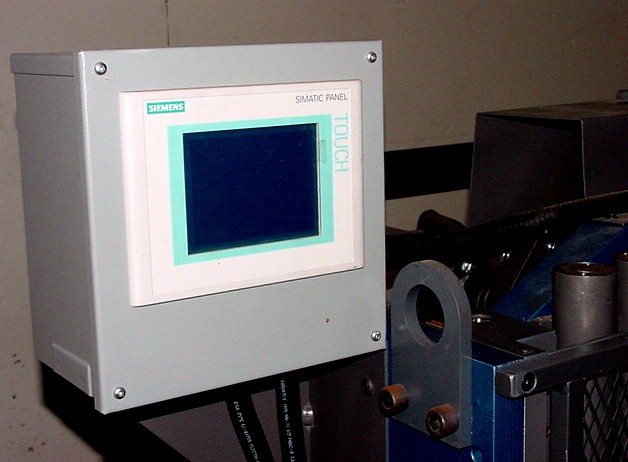

 - FULLY ENCLOSED CONTROL PANEL COMPLETE WITH LOW
 VOLTAGE CONTROLS.
 - THE FRAME IS MADE FROM A SOLID STEEL WELDED
 CONSTRUCTION, GIVING MAXIMUM RIGIDITY.
 - ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD
 IN THE INDUSTRY, MADE IN THE USA OR CANADA, AND
 READILY AVAILABLE ALMOST ANYWHERE.
