Reference Number: 135697

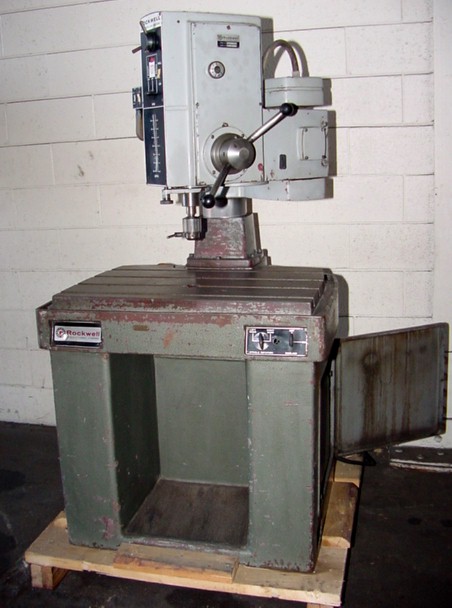

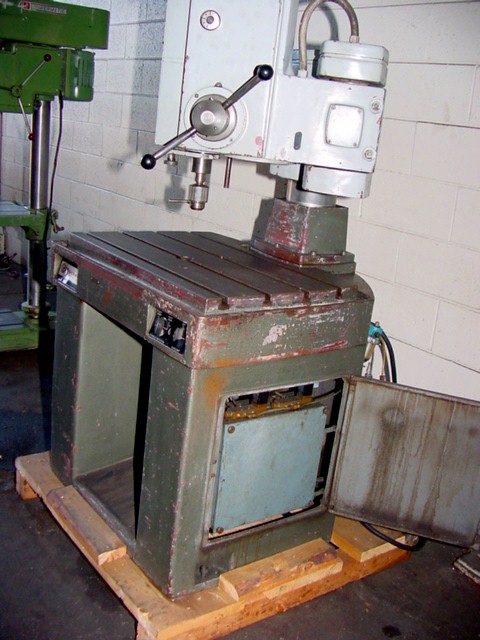

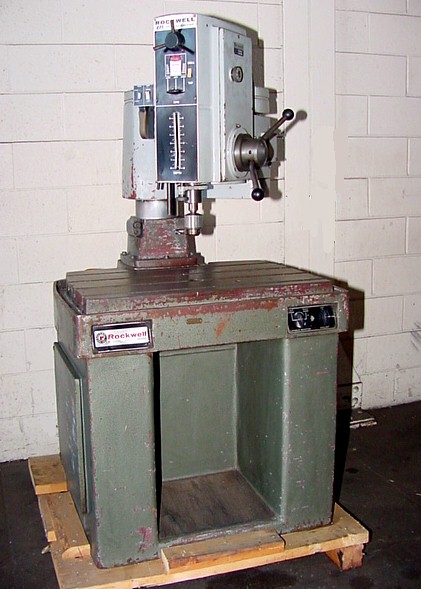

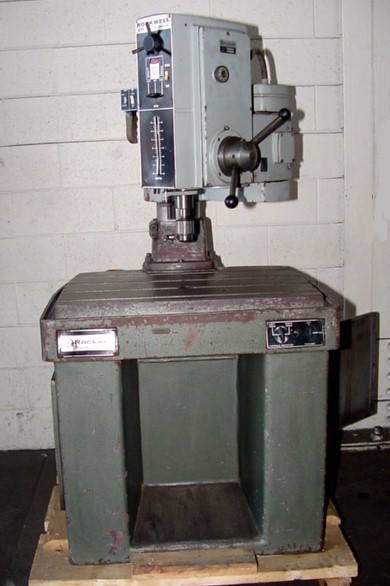

ROCKWELL ARTICULATING RADIAL ARM
 DRILLING & TAPPING MACHINE

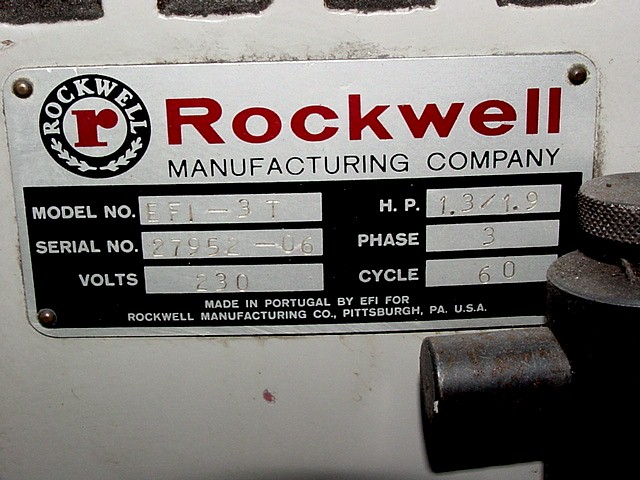

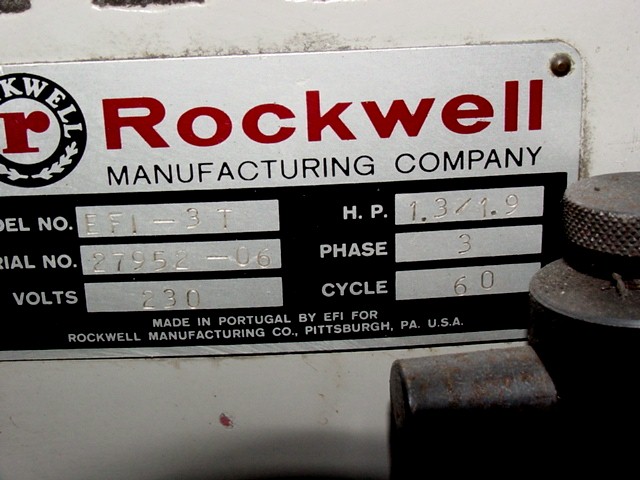

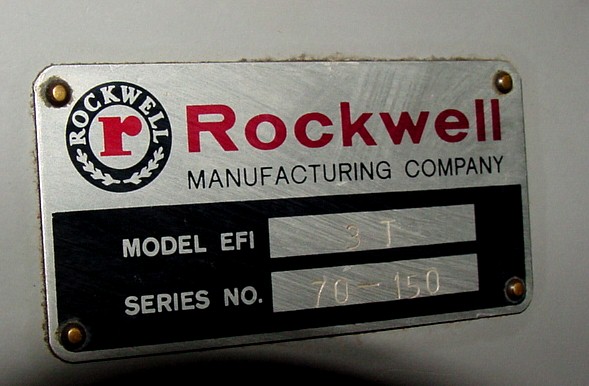

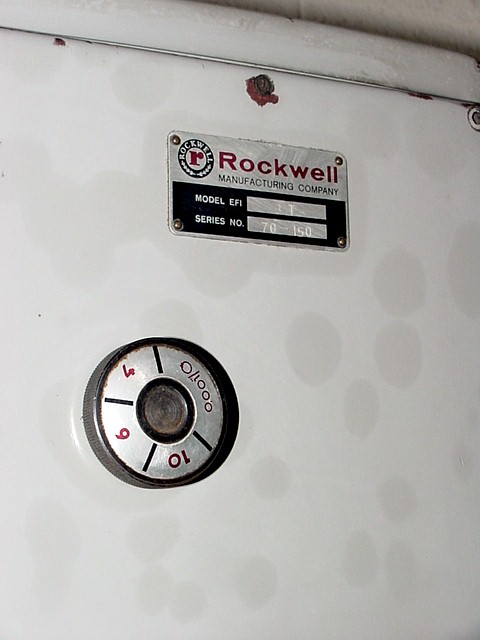

 MODEL EFI-3T, SERIES 70-150, S/N: 27952-06

 SPECIFICATIONS:
 DRILLING CAPACITY:
     CAST IRON .................. 1-1/2"
     STEEL ...................... 1-1/4"
 TAPPING CAPACITY, MILD STEEL ..... UP TO 1"-12 PITCH

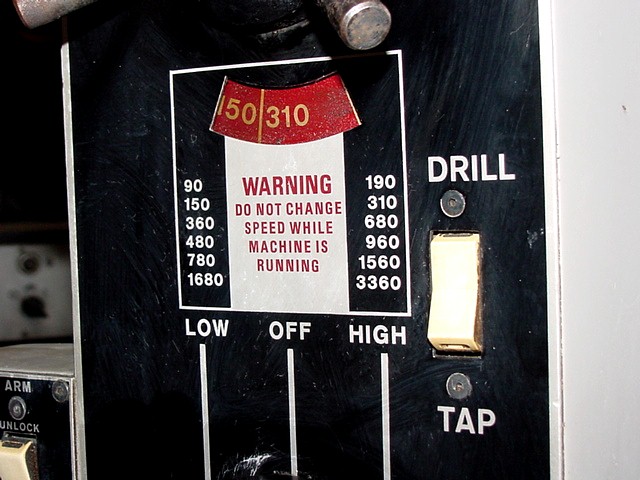

 SPINDLE SPEEDS, (12) TWO RANGES .. 90 - 3,360 R.P.M.
 SPINDLE FEEDS (3) ................ .004, .006, .010 I.P.R.
 SPINDLE TAPER .................... #4 MORSE
 QUILL TRAVEL ..................... 6-11/16"
 MIN/MAX DISTANCE,
   SPINDLE CENTER TO COLUMN ...... 6-11/16" / 22-13/16"

 MIN/MAX DISTANCE,
   SPINDLE TO TABLE TOP .......... 8-1/4" /23-3/16"
 COLUMN DIAMETER .................. 6-5/16"

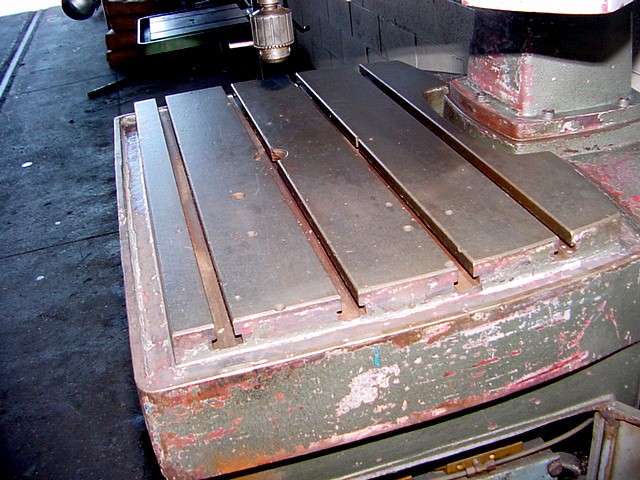

 SIZE OF T-SLOTTED WORK TABLE,

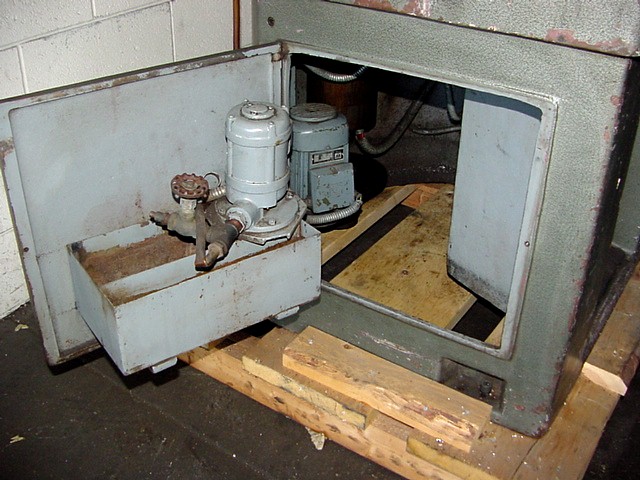

   INCLUDING COOLANT ............. 34-5/16" L-R X 25" F-B
 WORKING SURFACE OF TABLE ......... 21" X 30-1/2"
 APPROXIMATE WEIGHT ............... 2,150 LBS.

 EQUIPPED WITH:
 ALL GEARED SPINDLE SPEEDS AND FEEDS

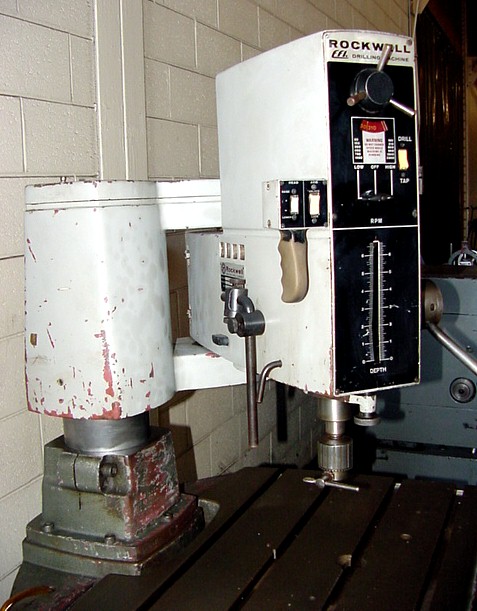

 ARTICULATING RADIAL ARM DESIGN
 ELECTRO-PNEUMATIC CLAMPING OF HEAD AND ARM

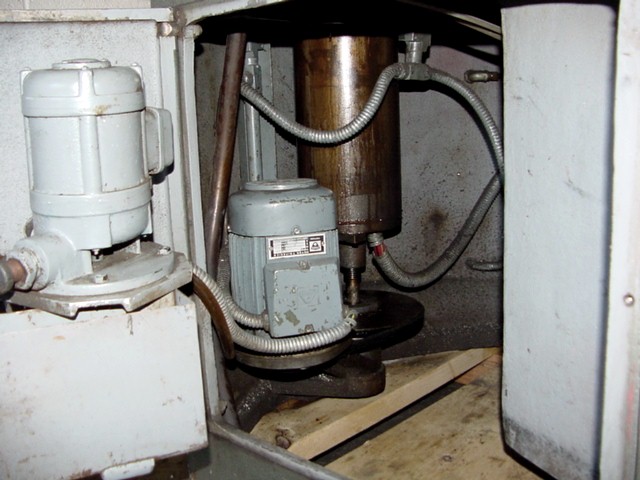

 MOTORIZED RAISING AND LOWERING OF ARM ON COLUMN
 FULL 360 DEGREE ROTATION PROVIDING FOR MAXIMUM FLEXIBILITY
  ON MULTIPLE POSITION DRILLING AND TAPPING JOBS

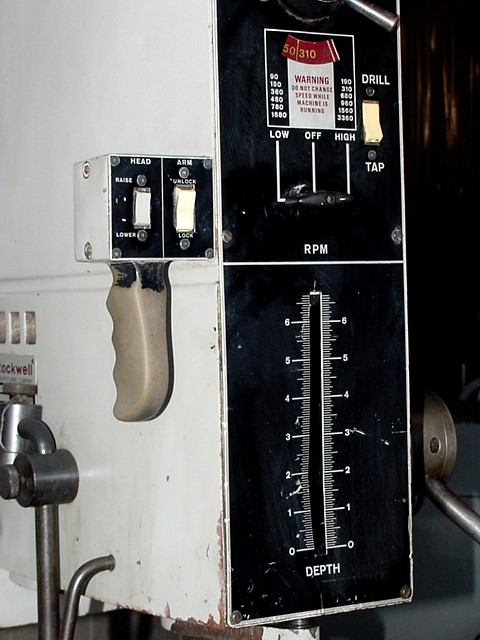

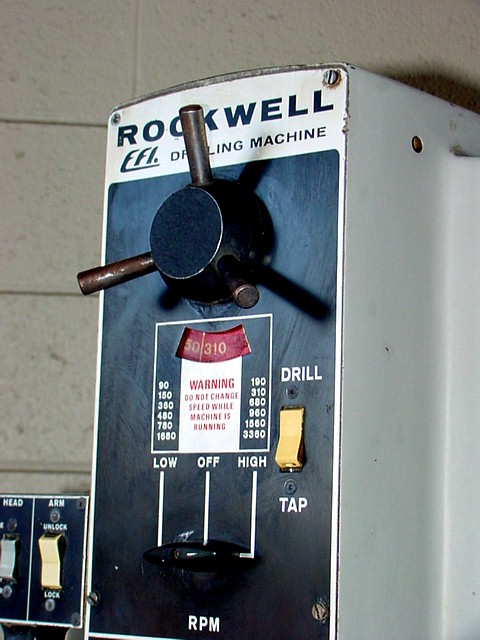

 SELECTOR SWITCH FOR DRILLING OR TAPPING MODE OF OPERATION
 JACOBS DRILL CHUCK WITH 5/8" CAPACITY
 1.3 / 1.9 HORSE POWER TWO SPEED SPINDLE DRIVE MOTOR & CONTROLS

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
 CONDITION:    ****   EXCELLENT   ****
