Reference Number: 136003
Price: $12,500

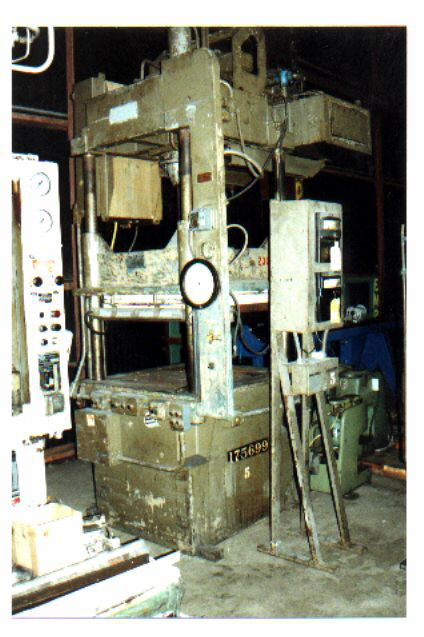

50 Ton Dake Hydraulic Four Post Down Acting Power Press Capacity 50 Ton,
Model 27-153 S/N 142775 New 1956
Stroke 24" Adjustable,
Bed Size 41" L-R x 41" F-B,
Daylight 25",
Die Space 30",
Distance Between the Posts 30" L-R x 30" F-B,
Ram Diameter 4-1/2",
Tie Rod Diameter 3",
Speeds 110 IPM Approach,
42 IPM Pressing,
110 IPM Breakaway,
290 IPM Return,
Reinforced Welded Steel Frame,
EQUIPPED WITH:
Dual Pushbutton Operation,
7.5 H.P. Main Drive Motor,
Electrical Controls,
Pressure Gauge with Shut Off Valve,
Adjustable Stroke Control,
Bolster Plate (30" F-B x 30" L-R x 2" Thick),
Weight, approx. 5,500#,
Dimensions, approx. 60" L-R x 76" F-B x 130" H
