Reference Number: 136004
Price: $10,500

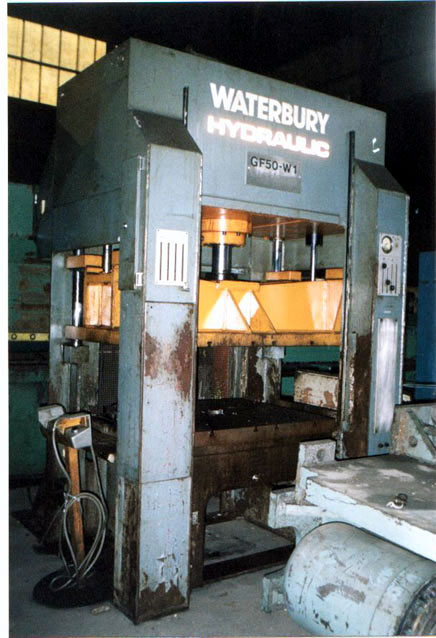

Waterbury Hydraulic Straight Side Punch Press Capacity 50 Ton,
Model GF50 S/N 240484 New 1983
Stroke 6" (Adjustable),
Open Height 24",
Closed Height 18",
Bed Area 43" L-R x 39" F-B,
Slide Face Area 43" L-R x 37" F-B,
Window Opening 27-1/2" W,
Speed 17 SPM @ 6" Stroke,
Distance Between the Housings 47",
EQUIPPED WITH:
Dual Palm Button Operation,
Adjustable Stroke Setting,
Bolster Plate "T" Slotted 3" Thick,
15 H.P. Main Drive Pump Motor,
Electrical Controls,
Independent Pedestal and Console Control,
Weight, approx. 17,600#,
Dimensions, approx. 77" L-R x 72" F-B x 144" H
