Reference Number: 136018

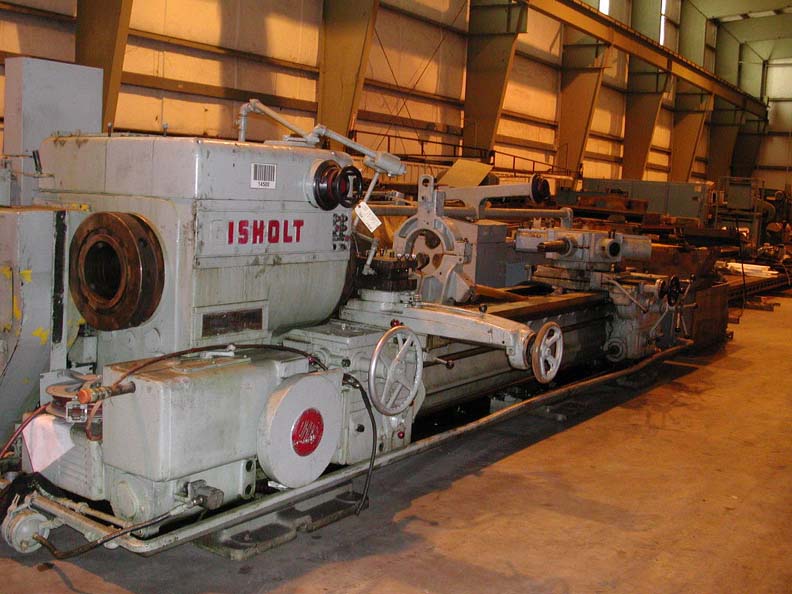

Price: On RequestGISHOLT SADDLE TYPE TURRET LATHE
MODEL: 4L
WITH CROSS-SLIDING TURRET
SPECIFICATIONS:
HOLE THRU SPINDLE ............ 9 1/2"
SPINDLE NOSE ................. A-20
SWING OVER BEDWAYS ........... 31 3/8"
SWING OVER CROSS-SLIDE ....... 24 1/2"
DISTANCE FACE OF SPINDLE
TO FACE TURRET ......... 140" EXTENDED BED
SPINDLE SPEEDS ............... 12 TO 310 RPM HYD. SELECTED
FEEDS LONG. .................. .003 TO .088 IPR
FEEDS CROSS .................. .0015 TO .044 IPR
MAIN DRIVE MOTOR ............. 50 HP 220/440 3 PH
EQUIPPED WITH:
BUILT IN 4 WAY TOOLPOST ON FRONT CARRIAGE,
RAPID TRAVERSE ON FRONT CARRIAGE 4 WAY,
REAR CARRIAGE HAS CROSS-SLIDING TURRET,
RAPID TRAVERSE ON REAR CARRIAGE,
1-24" 3-JAW CHUCK,
MISC. FLANGED TOOLHOLDERS FOR TURRET,
FULL LENGTH CHIP PAN,
COOLANT,
PUSHBUTTON CONTROLS.
