Reference Number: 136061

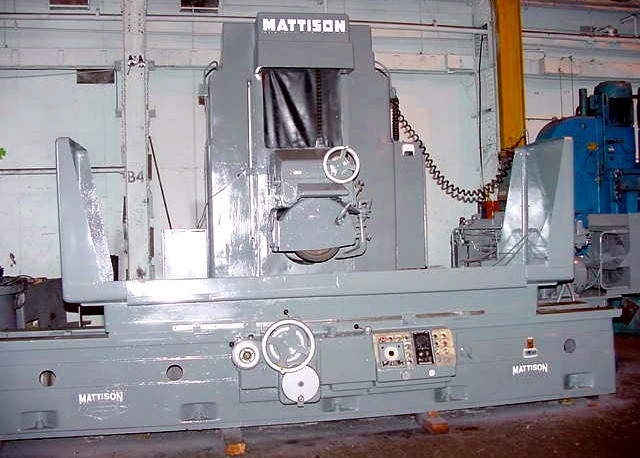

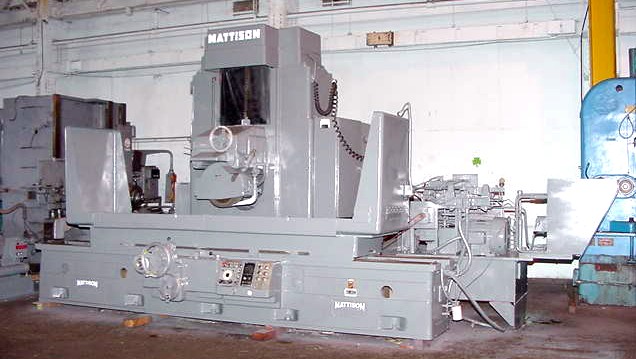

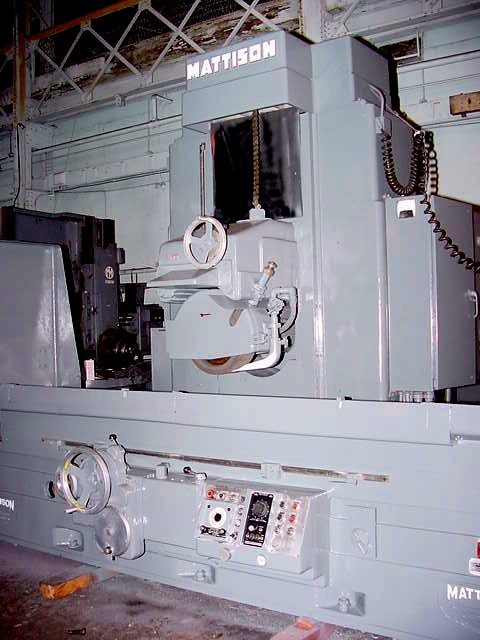

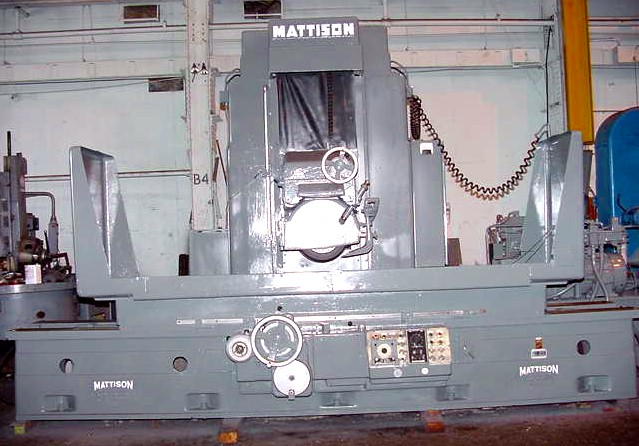

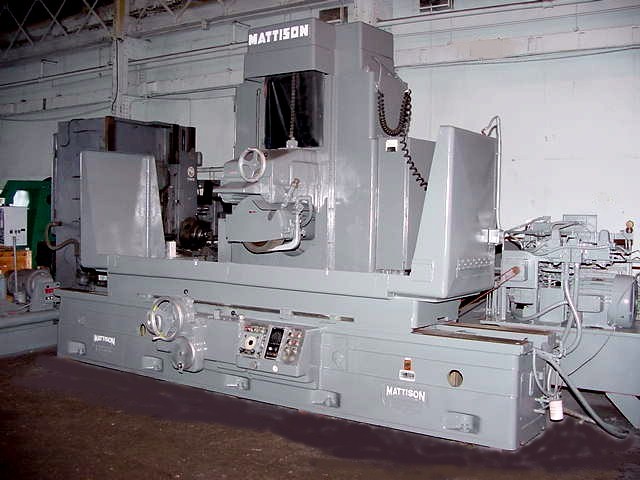

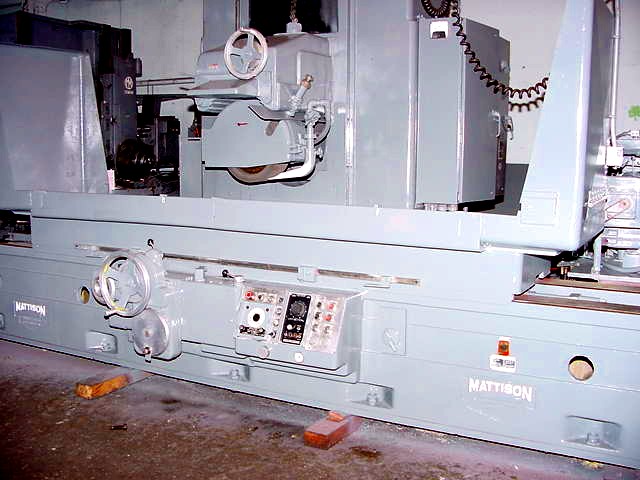

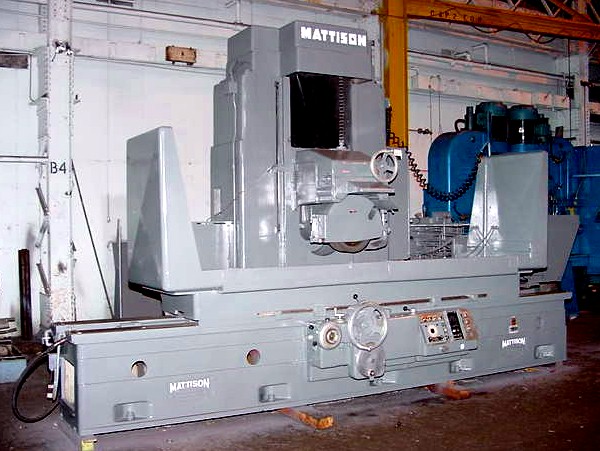

 24" X 72" MATTISON "EXTRA HEIGHT"
   HEAVY DUTY SURFACE GRINDER
 W/AUTOMATIC INCREMENTAL DOWNFEED

 MODEL: LARGE SURFACE GRINDER

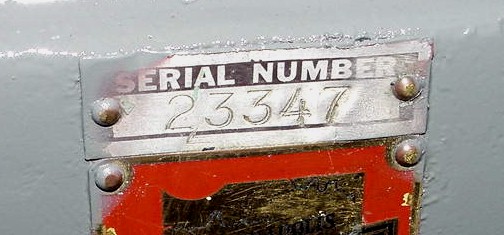

 S/N: 23347    NEW: 1974

  SPECIAL NOTE:
 SERVICED BY THE MANUFACTURER'S TECHNICIAN,
 MR. JOE BLANCHARD - FIELD ENGINEER
 OF BOURN & KOCH - MATTISON GRINDERS

 WIDTH & LENGTH GROUND .................. 24" X 72"
 VERTICAL CAPACITY UNDER 20" WHEEL ............ 36"
 LONGITUDINAL TABLE TRAVEL ................... 84"
 INFINITELY VARIABLE TABLE SPEEDS .. UP TO 125' FPM
 AUTO CROSSFEED FEED INCREMENT ........ 1/32" TO 3"
 AUTO DOWNFEED INCREMENT FROM ..... 0.004" - .0002"

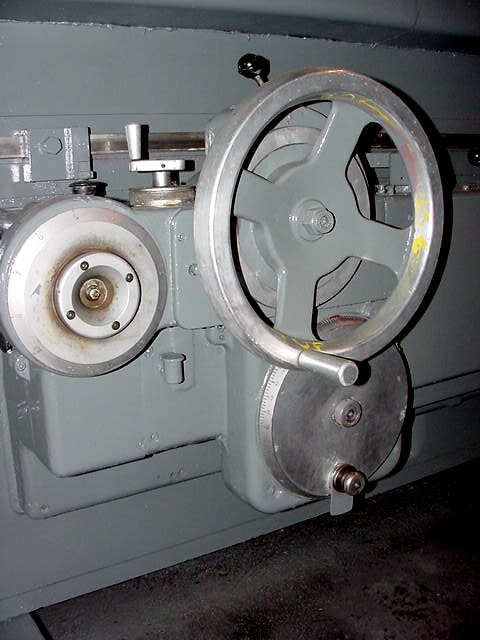

 VERTICAL HANDWHEEL GRAD. ................. 0.0001"
 SPINDLE MOTOR ............................ 30 H.P.

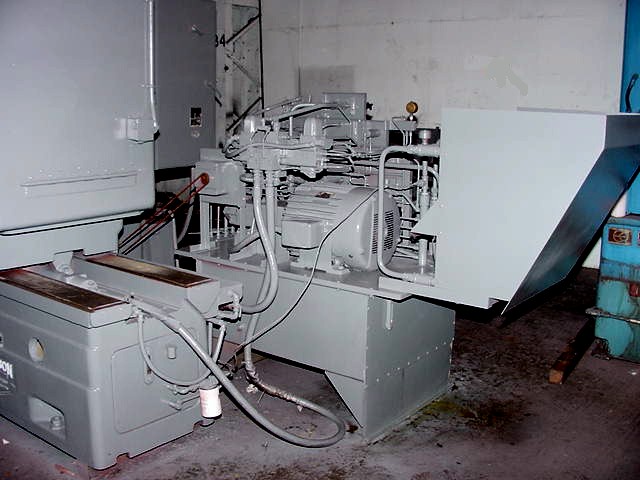

 HYDRAULIC SYSTEM MOTOR ................... 10 H.P.
 GRINDING WHEEL ................... 20" DIA. X 6"W

 APPROX. MACHINE WEIGHT: 42,000 LBS.
 APPROX. DIMENSIONS:  26'L-R X 9'6"F-B X 11'3"'H

 EQUIPPED WITH:
 HEAVY DUTY, MEEHANITE CAST IRON
 DOUBLE BOX TYPE COLUMN CONSTRUCTION
 FACTORY OPTION EXTRA HEIGHT (36" VERTICAL CAPACITY)
 AUTOMATIC "INCREMATIC" INCREMENTAL DOWN FEED

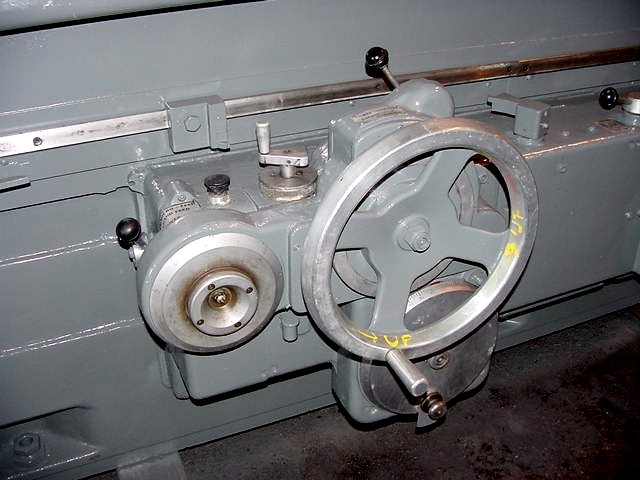

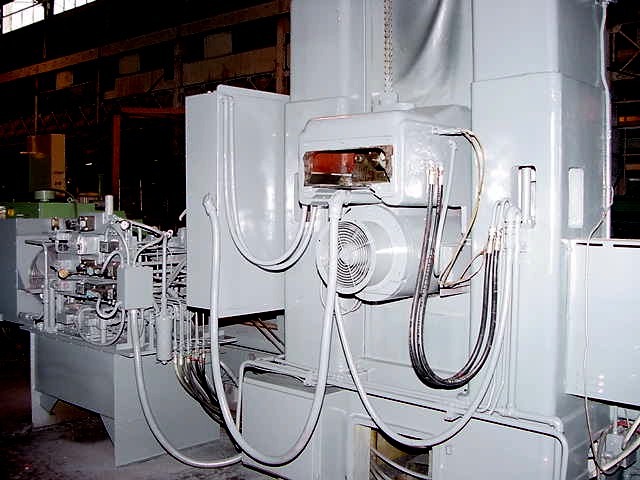

 HYDRAULIC TABLE TRAVERSE

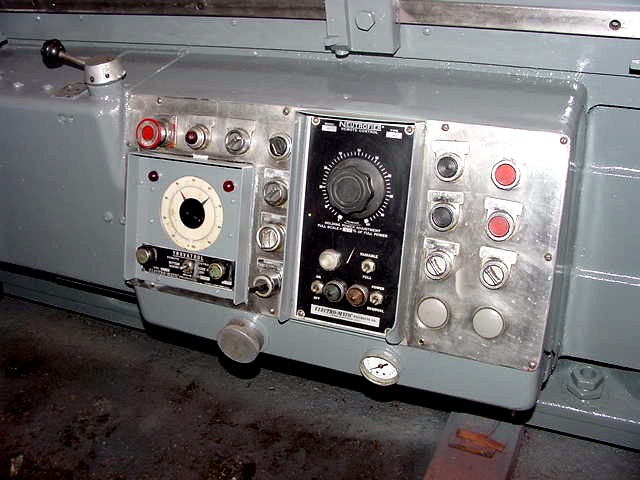

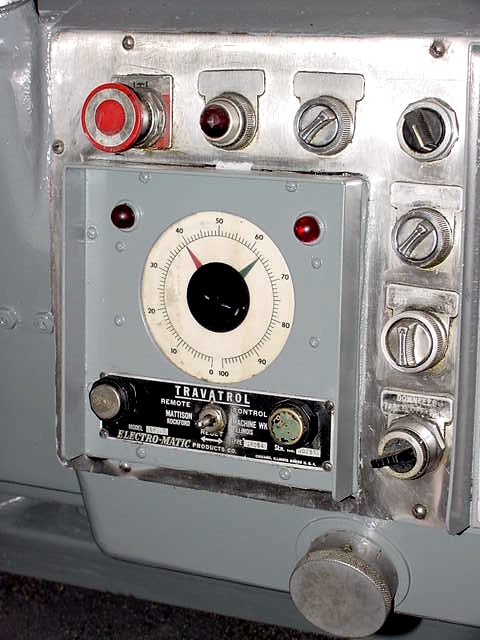

 ELECTRONICALLY CONTROLLED ("TRAV-A-TROL") AUTO CROSS FEED
 POWER RAPID WHEELHEAD POSITIONING

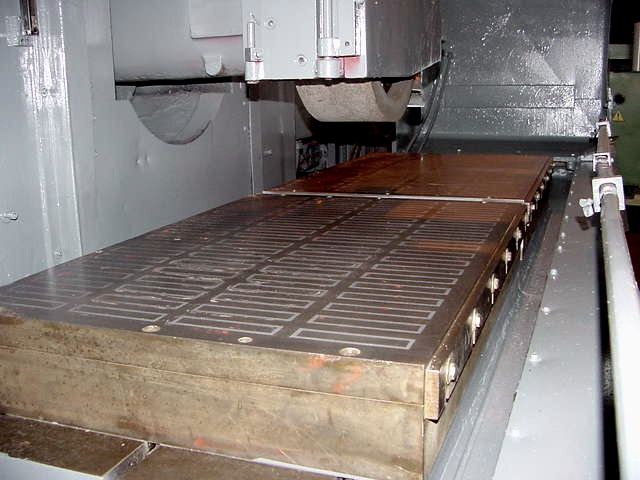

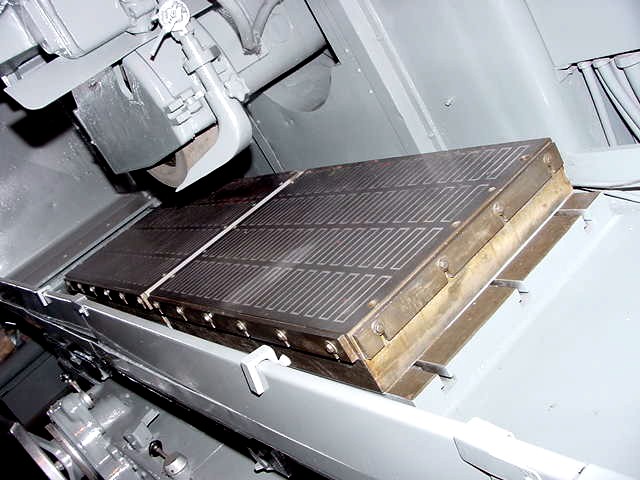

 24" X 36" ELECTO-MAGNETIC CHUCKS (TWO UNITS)

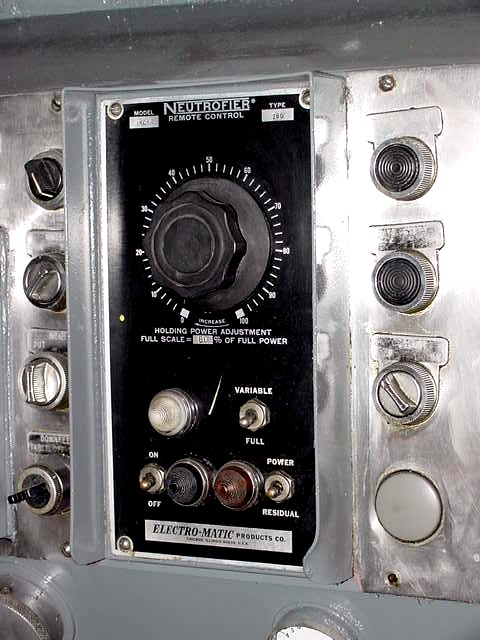

 VARIABLE HOLD NEUTROFIER CONTROL
 BIJUR LUBRICATION SYSTEM
 BUILT-IN WHEEL DRESSER
 "BARNES" EXTERNAL COOLANT TANK AND PUMP W/PAPER FILTER
 DIGITAL READOUT DISPLAY
 MOTORS ARE 3/60/220-440 VOLT
 MACHINE IS WIRED PRESENTLY FOR 460 VOLTS

 SPECIAL NOTE:
 MACHINE HAS BEEN SERVICED BY MR. JOE BLANCHARD,
  A MATTISON SERVICE TECHNICIAN EMPLOYED BY THE
  NEW OWNER OF MATTISON GRINDERS, THE BOURN &
  KOCH COMPANY OF ROCKFORD, IL .... THEIR
  WEBSITE IS http://www.bourn-koch.com.
  THE MACHINE RUNS FLAWLESSLY AND THE CONDITION
  OF THE WAYS IS SUPERB.


 ** INSPECT UNDER POWER IN OUR
    HARRISON, N.J. WAREHOUSE **
