Reference Number: 136227

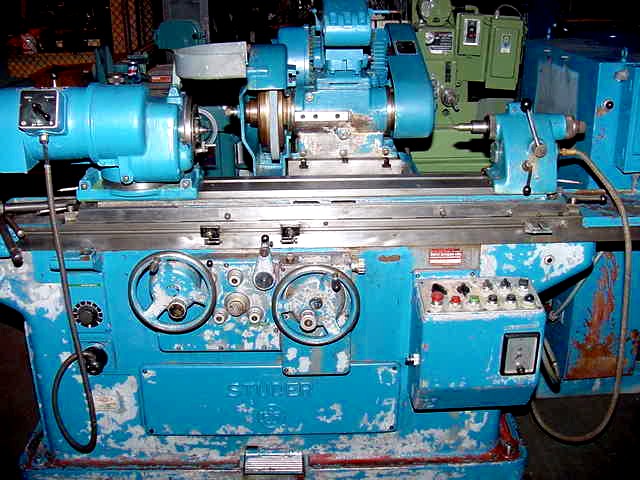

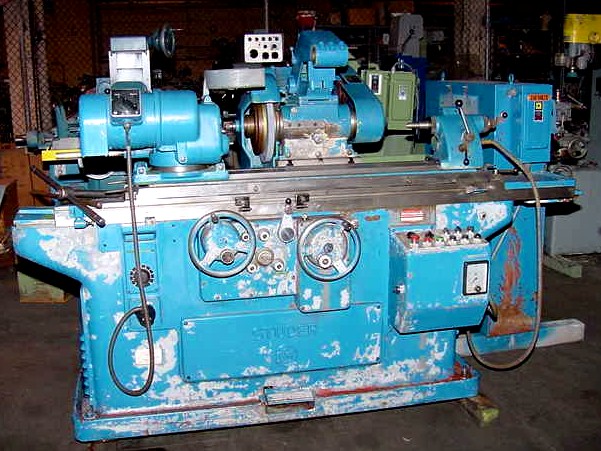

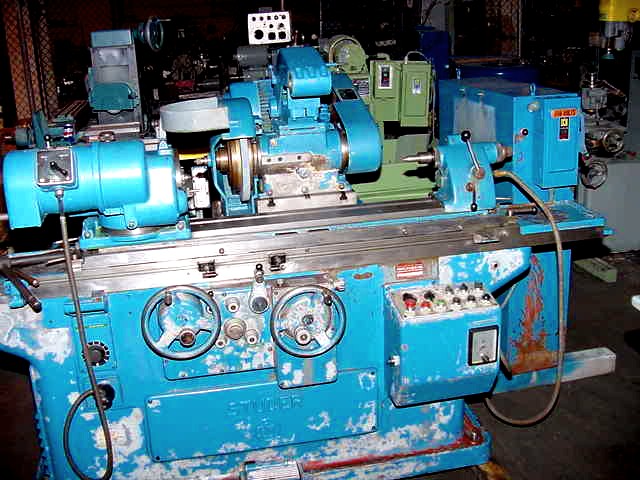

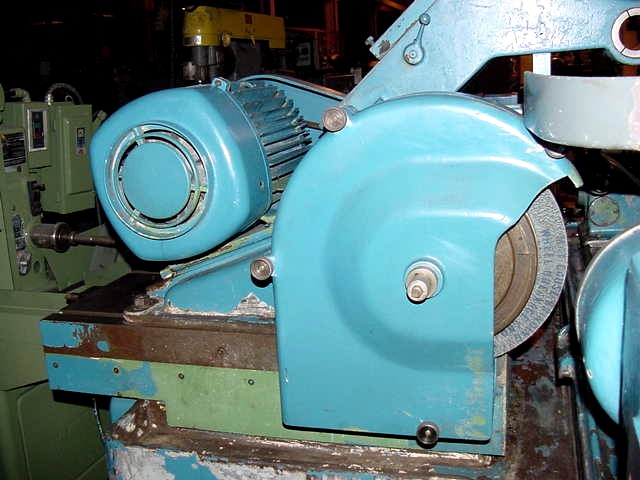

11.75" X 28" STUDER "SWISS" HIGH-PRECISION UNIVERSAL CYLINDRICAL GRINDER

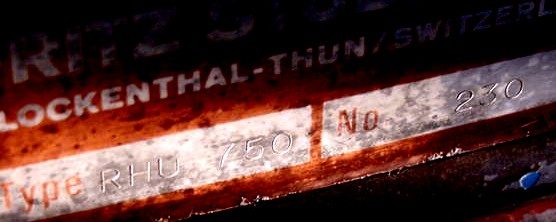

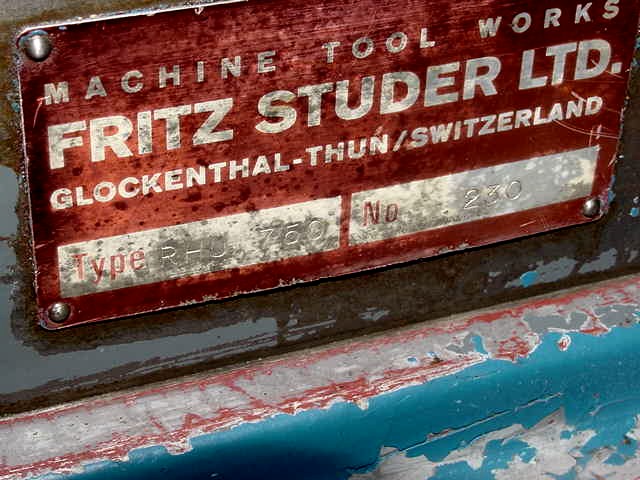

 MODEL:  RHU 750    S/N: 230   NEW: 1960's

 SWING OVER BED ............................ 11.75"
 DISTANCE BETWEEN CENTERS .................. 28"
 TABLE SWIVELS LEFT & RIGHT ................ 12 DEG.
 HYDRAULIC TABLE TRAVERSE .................. 0.33 TO 20' FPM
 WHEELHEAD & UPPER CROSS SLIDE SWIVEL ...... 90 DEG.

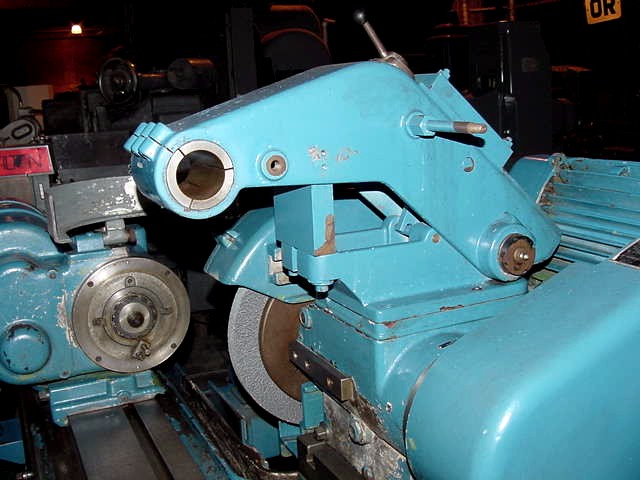

 GRINDING WHEEL, L.H. SIDE ................. 16" DIA.
 GRINDING WHEEL SPEEDS ..................... (4) SPEEDS

 AUTOMATIC INFEED OF WHEELHEAD PER TABLE
  REVERSAL, ADJUSTABLE FROM ............... .00004" - .0016"
 AUTO PLUNGE INFEED (DEPTH OF CUT) ......... 0 TO .16"
 PLUNGE INFEDD SPEED ...................... INF. ADJUSTABLE
 FINE INFEED BY THUMB KNOB ................ .00004"

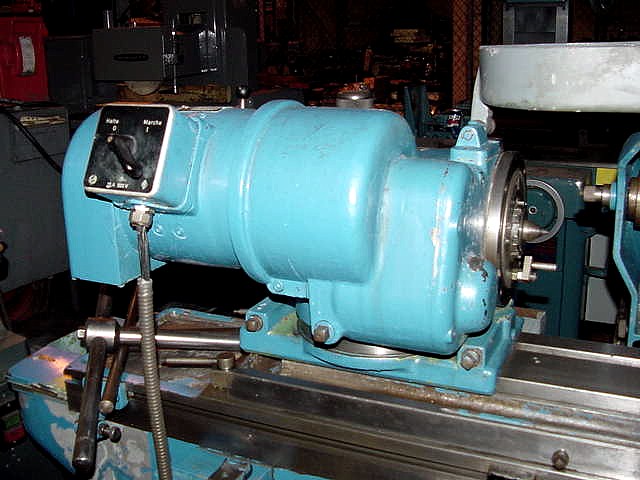

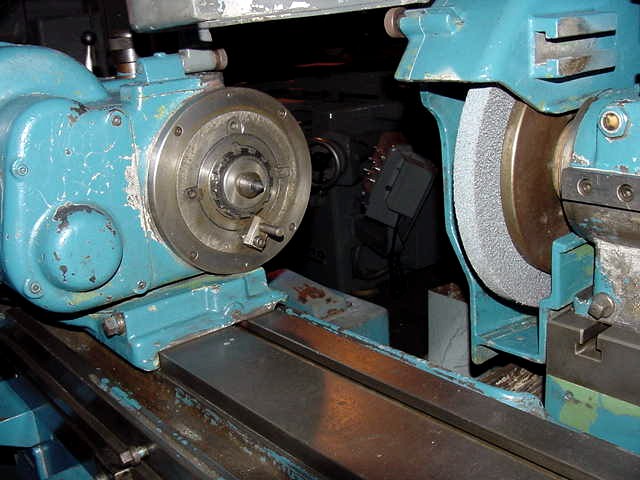

 INFINITELY VAR. WORKHEAD SPINDLE SPEEDS .. 30 TO 650 RPM
 WORKHEAD SWIVELS ......................... 90 DEG.
 WORKHEAD SPINDLE TAPER ................... #5 MT

 APPROX. MACHINE WEIGHT ................... 5,300 LBS.
 APPROX. DIMENSIONS  FOR MACHINE .......... 66"L-R X 54"D
                                            x 60"H

 EQUIPPED WITH:
 SELF-CONTAINED HYDRAULIC SYSTEM PROVIDING FOR
 -POWER TABLE TRAVERSE
 -AUTO INFEED OF WHEELHEAD @ TABLE REVERSAL
 -AUTO PLUNGE INFEED
 -RAPID WHEELHEAD ADVANCE & RETRACTION
 SPARKOUT TIMER

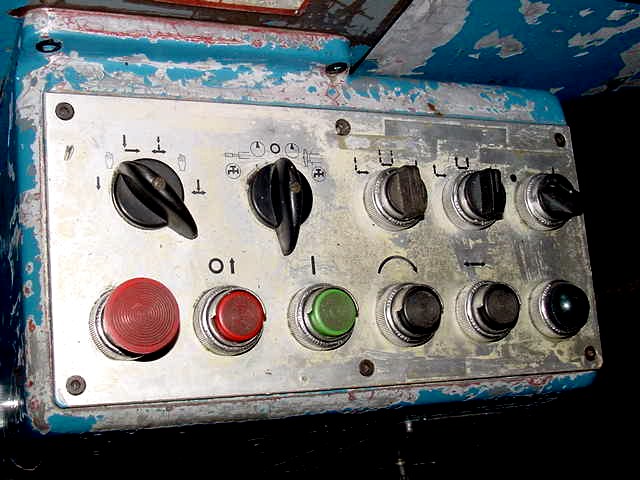

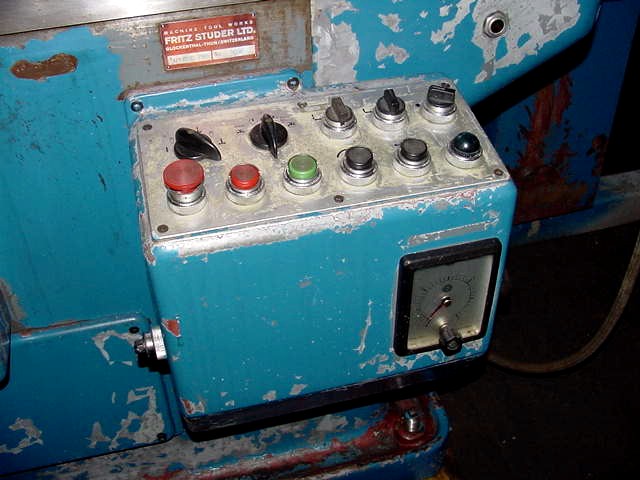

 SINGLE LEVER CONTROL FOR INITIATING CYCLE
 COOLANT TANKE
 3 H.P. WHEELHEAD MOTOR
 MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

 ** "SWISS" MACHINE TOOL **
 ** PRESENT LOCATION:  HARRISON, NJ **
