5014-CM

 STANDARD FEATURES

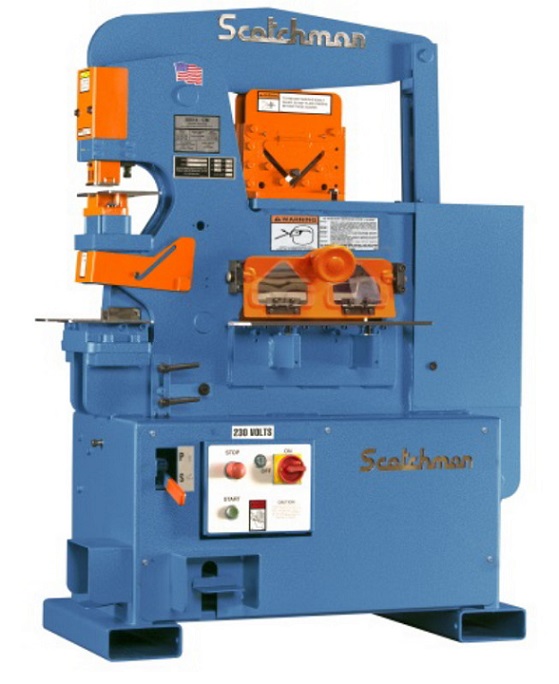

 50 Ton Punch Station with 3-Station Revolving Turret (1-1/4" in 1/2")

 Keyed Punch Ram for Safety

 4" Throat Depth

 Three 2" Die Holders, Three Punch Nuts with Wrench and Three Strippers

 One Round Punch & Die: Max. Dia. 1"

 Adjustable Stroke Control

 Angle Shear 4" x 4" x 3/8" at 90° and 2" x 2" x 3/8" at 45°

 14" Flat Bar Shear with 4-Way Reversible Blade (3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14")

 Rectangular Notcher, 2-1/2" x 3" x 5/16" , 2-1/2" x 2-3/4" x 3/8"

 Tool Table Work Area

 Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations

 230/460 volt /3 Phase Electrics (must specify voltage)

 All Guards Necessary to Comply with ANSI B 11-5 Standards

 Forklift Accommodations

 One-year warranty

 Made in USA

 CAPACITIES & SPECIFICATIONS

 Rated On:                                       65,000 PSI Tensile  A 36 Mild Steel
 Punching Capacity                                       50 Ton
 1-1/4" in ½"
 13-16" x ¾"
 Special Tooling                                       2-1/4" Max. Dia.
 Throat Depth                                       4"
 Flat Bar Shear                                       14" Length
 3/4" x 4"
 1/2" x 8"
 3/8" x 10"
 ¼" x 14"
 Opt. Saber Blade                                      ¾" x 4"
                                       ½" x 10"
                                        3/8" x 12"
                                       ¼" x 14"
 Angle Shear 90 Degrees                                       4" x 4" x 3/8"
 Angle Shear 45 Degrees                                       2" x 2" x 3/8"
 Brake 8"                                       25 Ton
 Brake 12"                                       25 Ton
 Pipe Notcher                                      ¾", 1", 1-1/4", 1-1/2", 2"
 Schedule 40 ID
 Rectangle Notcher                                       2-1/2" x 3" x 5/16"
                                        2-1/2" x 2-3/4" x 3/8"
 90 Deg. V. Notcher                                       6" x 6" x 1/8"
 Rod-Angle Combo:
 Angle Shear                                       2" x 2" x ¼"
 Round Rod                                      ¾" Max.
 Square Rod                                      ¾" Max.
 Square Tube Shear                                      ½" to 1", 14 ga.
 Picket Tool Housing                                      ½", ¾", 1"
 SPM - Light Material                                      ¼" Stroke                    40 SPM
 SPM - Heavy Material                                      ¾" Stroke                    14 SPM
 Hydraulics                                       1900 PSI
 Motor Standard                                       3 hp, 3 ph, 230/460
                                        208/380/575
 Motor Optional                                       5 hp, 1 ph, 220V (add $345 for single phase)
 Dimensions                                       29"W x 48"L x 67"H
 Weight                                       1,575 Lbs.
