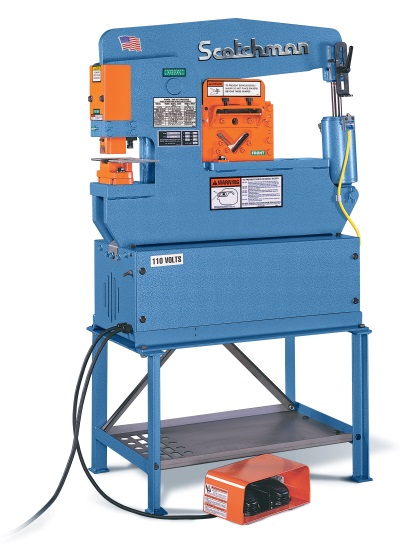

Scotchman Portafab 45

 STANDARD FEATURES

 45 Ton Punch Station (1-1/8" in 1/2")

 Keyed Punch Ram for Safety

 4-1/4" Throat Depth

 2" Die Holder, Punch Nut with Wrench and Stripper

 One Round Punch & Die: Max. Dia. 1"

 Adjustable Electric Stroke Control with Scale

 Three-In-One Combination Tool (take off $465 if eliminated)
 Angle Shear Capacity:
 3" x 3" x 5/16" at 90° and 2" x 2" x 1/4" at 45°
 Bar Shear Capacity: 3/8" x 6"
 Rod Shear Capacity: 3/4" Round

 Tool Table Work Area

 Machine Stand with Punch & Die & Tooling Storage Rack

 110 volt /1 Phase Electrics

 All Guards Necessary to Comply with
 ANSI B 11-5 Standards

 One-year warranty

 Inexpensive and portable, this machine was designed with all types of
 customers in mind. It can be used in all types of fabricating shops, big
 and small, and can also be taken on location to construction sites and
 operated using a 110 volt generator.

 Made in USA
 Rated on:    65,000 PSI Tensile    A 36 Mild Steel
 Punching Capacity     45 Ton  1-1/8" in 1/2"
 Special Tooling     2-1/4" Max. Dia.
 Throat Depth        4-1/4"
 Flat Bar Shear         6" Length
           1/2" x 4"
           3/8" x 6"
 Angle Shear 90°      3" x 3" x 5/16"
 Angle Shear 45°      2" x 2" x 1/4"
 Brake 8"        25 Ton
 Brake 12"        20 Ton
 Pipe Notcher
 Schedule 40 I.D.     3/4", 1"
           1-1/4"
           1-1/2", 2"
 Rectangle Notcher     2" x 1-3/4" x 1/4"
 90° V. Notcher     6" x 6" x 1/8"
 Rod-Angle Combo
 Angle Shear
 Round Rod
 Square Rod        2" x 2" x 1/4"
           3/4" Max.
 Square Tube Shear     1/2" to 1", 14 ga.
 Picket Tool Housing     1/2", 3/4", 1"

 CAPACITIES & SPECIFICATIONS
 Rated on:    65,000 PSI Tensile    A 36 Mild Steel
 Punching Capacity     45 Ton    1-1/8" in 1/2"
 Special Tooling     2-1/4" Max. Dia.
 Throat Depth        4-1/4"
 Flat Bar Shear        6" Length
           1/2" x 4"
           3/8" x 6"
 Angle Shear 90°      3" x 3" x 5/16"
 Angle Shear 45°      2" x 2" x 1/4"
 Brake 8"        25 Ton
 Brake 12"        20 Ton
 Pipe Notcher
 Schedule 40 I.D.     3/4", 1", 1-1/4", 1-1/2", 2"
 Rectangle Notcher     2" x 1-3/4" x 1/4"
 90° V. Notcher     6" x 6" x 1/8"
 Rod-Angle Combo
 Angle Shear
 Round Rod
 Square Rod        2" x 2" x 1/4"
           3/4" Max.
 Square Tube Shear     1/2" to 1", 14 ga.
 Picket Tool Housing     1/2", 3/4", 1"
 Rated on:       65,000 PSI Tensile    A 36 Mild Steel
 Strokes per minute in light material      1/4" Stroke      44 spm
 Strokes per minute in heavy material     3/4" Stroke      14 spm
 Hydraulics        1350 psi
 Motor Standard     2 hp 1 ph  110v
 Motor Optional     2 hp 1 ph  220v  (add $600 for 220v 1 Ph motor)
 Dimensions     W-17.63" x L-35.75" x H-38.75"
 Weight     640 lbs.
