Reference Number: 136628

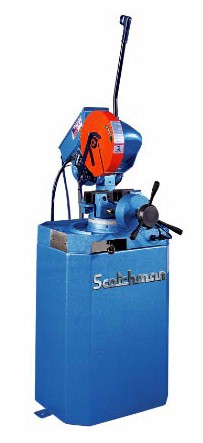

MODEL CPO-275 PK with 2-Speed Motor
 STANDARD FEATURES
 Power Double Self-Centering Vise Assures Burr-Free Cuts
 Operator Controlled Trigger Switch
 Miter Capabilities 135 degrees, 90 degrees Left and 45 degrees Right
 Capable of Slotting
 2-Speed Motor
 Hardened and Ground Worm and Wheel Gear Box
 Worm Wheel of Top Quality Bronze
 7 Gallon Coolant Tank with Pump
 30" Material Length Stop
 One 10" Diameter (250 mm) HSS Blade
 One Blade Wrench
 One Gallon Concentrated Coolant
 230 or 460 Volt/3 Phase Electrics (must specify voltage)
 Warranty: One Year Parts
 Made in USA

 Capacities & Specifications

 Cutting Speeds LT (Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe (Must specify when ordering):
 LT (Low Turn) 30 RPM or 60 RPM
 Motor Rate: 2 hp
 Factory Wired (Specify): 208 3 ph - 230 3 ph - 460 4 ph - 575 volt 3 ph 60 hz

 TUBING 90 DEGREES:
 Round: 3-3/8"
 Square: 3" x 3"
 Rectangle: 3-1/2" x 2-3/8"

 TUBING 45 DEGREES:
 Round: 2-3/4"
 Square: 2-5/8" x 2-5/8"
 Rectangle: 2-5/8" x 2-5/8"

 SOLID 90 DEGREES:
 Round: 1-1/2"
 Square: 1-1/2" x 1-1/2"

 Max Dia Blade: 10-3/4"
 Arbor Bore: 1-1/4"
 Pin Spacing: 2/8/45
 Width: 21-7/8"
 Depth: 43-1/2"
 Height Not Including Handle: 53-1/4"
 Height From Floor To Vise: 36-1/8"
 Shipping Weight: 600 lbs.
