Reference Number: 136640

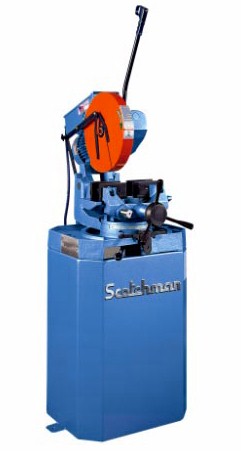

MODEL CPO-350 2-SPEED COLD SAW
 STANDARD FEATURES
 Manual Double Self-Centering Vise Assures Burr-Free Cuts
 Operator Controlled Trigger Switch
 Miter Capabilities 135 degrees, 90 degrees Left and 45 degrees Right
 Miter Locking Device Stops at 45 degrees Left, Straight 90 degrees, and 45 degrees Right
 Capable of Slotting
 Two Cutting Speeds:  44 & 88 RPM
 Double Reduction, Hardened and Ground Worm and Wheel Gear Box
 Worm Wheel of Top Quality Bronze
 7 Gallon Coolant Tank with Pump
 30" Material Length Stop
 One 12-1/2" Diameter (315 mm) HSS Blade
 One Blade Wrench
 One Gallon Concentrated Coolant
 230 or 460 Volt/3 Phase Electrics (must specify voltage)
 Warranty: One Year Parts
 Made in USA

 Capacities & Specifications

 HT (High Turn) designed for thin wall tube and non-ferrous
 material (Must specify when ordering):
 HT (High Turn): 44 RPM or 88 RPM
 Motor Rate: 3 hp
 Factory Wired (Specify): 208 3 ph - 230 3 ph - 460 4 ph - 575 volt 3 ph 60 hz

 TUBING 90 DEGREES:
 Round: 4-7/8"
 Square: 4-1/2" x 4-1/2"
 Rectangle: 5-1/2" x 4"

 TUBING 45 DEGREES:
 Round: 4-3/8"
 Square: 4" x 4"
 Rectangle: 4" x 4"

 SOLID 90 DEGREES:
 Round: 2"
 Square: 2" x 2"

 SOLID 45 DEGREES:
 Round: 1-3/4"
 Square: 1-3/4" x 1-3/4"

 Max Dia Blade: 14"
 Arbor Bore: 1-9/16"
 Pin Spacing: 4/12/64
 Width: 21-7/8"
 Depth: 43-1/2"
 Height Not Including Handle: 56-1/4"
 Height From Floor To Vise: 37-7/16"
 Shipping Weight: 675 lbs.
