Reference Number: 136703

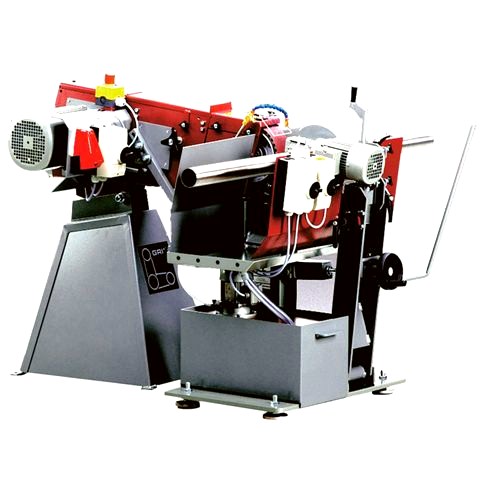

MODEL CG-3 BELT-TYPE CENTERLESS GRINDERPrice: $8,995
STANDARD FEATURES
- Combined Belt and Centerless Grinder
- Centerless Grinder for the External Cleanup and Finishing of
Material from 1/2" to 4" Diameter
- Can be Converted to Traditional Belt Grinder
- Supplied with Integrated Coolant System
- Uses 3" Wide Belt (Abrasive or Fiber)
- Finishes a Wide Variety of Material, Aluminum to Stainless Steel
- Power head has adjustable feed rate and pressure controls
- Optional Infeed and Outfeed Conveyors are Recommended for
Longer Work Pieces to Help Reduce Friction
- Grinds Round Work Pieces up to 8" Diameter
- All Attachments for Both Applications Included
Technical Data & Specifications
Belt Dimensions: 3" x 78-3/4"
Belt Speed: 5,900 SFPM
Motor Output (1 speed, 3,500 RPM): 5 hp
Contact Wheel (W x D): 3" x 8"
Weight: 650 lbs.
Voltage (Specify): 220 or 440, 3ph
