Reference Number: 136721

SHARP MODEL: 1118H PRECISION LATHE
 EQUIPPED WITH DIGITAL VARIABLE SPEED (DVS) HEADSTOCK
 w/NEW FEATURE - PRESET DVS HI-LOW RATIO


 CAPACITY
 Swing over bed........................... 11"
 Swing over carriage...................... 9"
 Swing over cross slide................... 6"
 Distance between centers................. 18"

 SPINDLE
 With round 5C collets.................... 1-1/16"
 With hexagon 5C collets.................. 7/8"
 With square 5C collets................... 3/4"
 With expanding chucks.................... 3"
 With step chucks......................... 1 1/16-6"
 With jaw chucks.......................... 5"
 Spindle speed range (inf. variable DVS):  130-4,000 rpm
 Spindle nose taper (inside): 5C (10º)
 Spindle nose taper (outside): 4º

 TRAVEL AND FEED RANGE
 Cross slide travel...................... 6"
 Compound slide travel................... 3"
 Quick-action compound slide travel...... 0.1"
 Carriage power feed range............... 5/16-7"
 Cross slide power feed range............ 4/16-4"

 THEADING
 Leadscrew pitch, diameter............... 8 tpi, 1"
 Inch threads (36)....................... 11-108
 Metric threads (36)..................... 0.275 - 2.7

 TAILSTOCK
 Tailstock spindle diameter.............. 1.358"
 Tailstock spindle taper................. MT #2
 Tailstock spindle travel................ 3.75"

 GENERAL
 Main motor.............................. 5 hp
 Coolant pump motor...................... 0.25 hp
 Feed motor (DC)......................... 75 watt, 110 volt
 Weight (approx)......................... 2,300 lbs

 FEATURES:

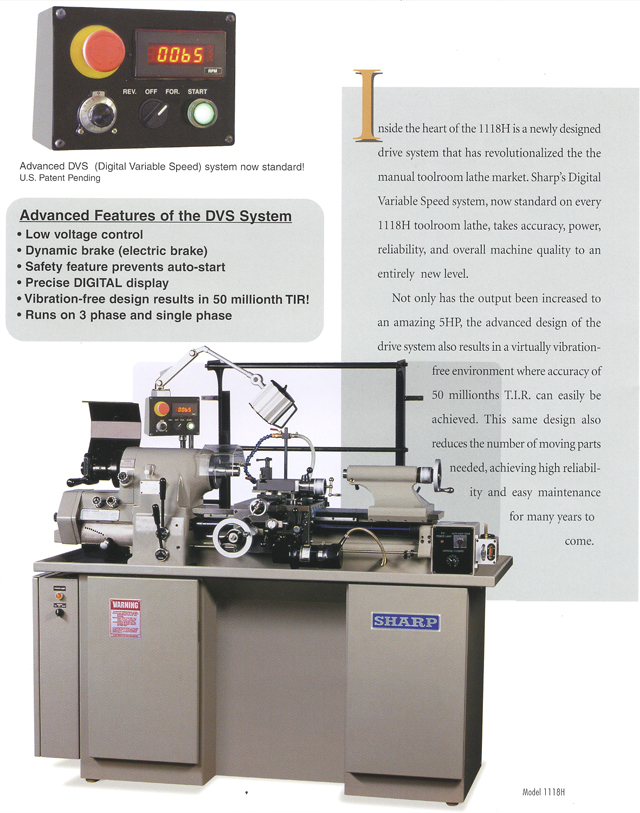

 Digital Variable Speed (DVS) - Super quiet and vibration
 free!
 High-speed spindle (infinitely variable 130-4,000 rpm),
 accuracy within 50 millionths TIR
 Hardened and ground spindle

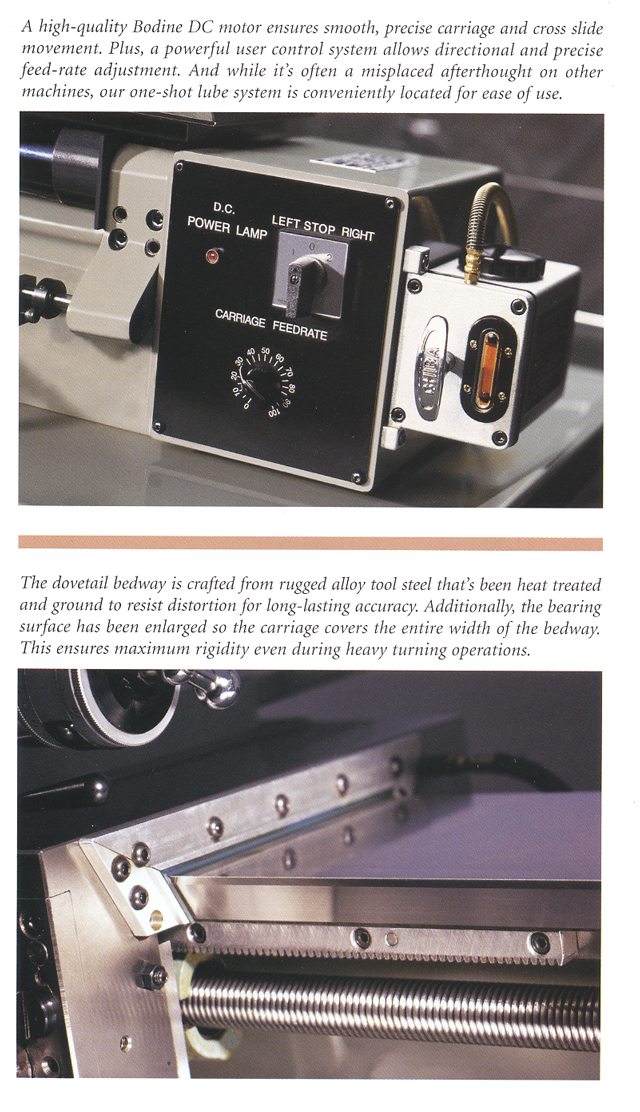

 Independent electric feed control on carriage and cross slide

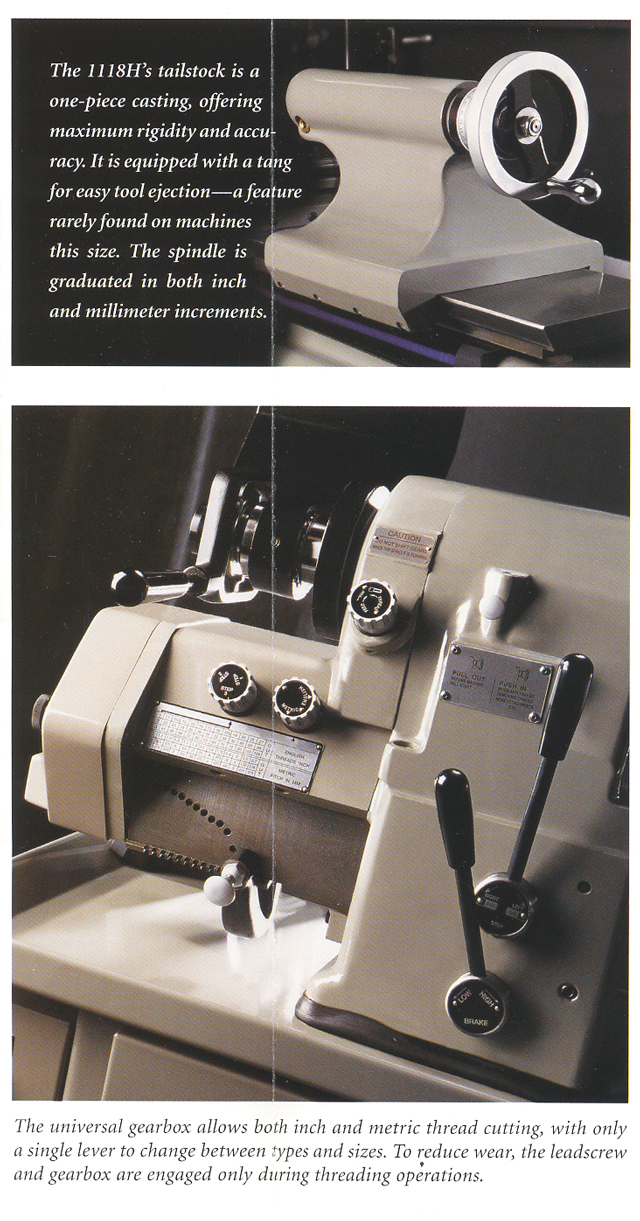

 Quick-change inch/metric gearbox with 36 changes
 Double angular contact bearings support spindle

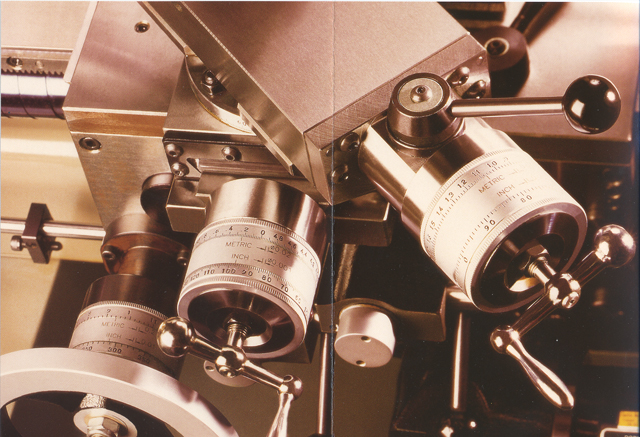

 Quick-action compound slide for threading
 Hardened and ground bed ways; turcite coating on carriage
 and bed
 Adjustable thread length control stops with fine adjustment
 Hardened and ground leadscrews

 STANDARD EQUIPMENT:
  - SPLASH GUARD
  - COOLANT SYSTEM
  - HALOGEN WORK LIGHT
  - 5C-COLLET CLOSER AND COLLET HOLDER

 * WIRED 220V, SINGLE PHASE or 3 PHASE
   (440V REQUIRES OPTIONAL TRANSFORMER)

 THE FOLLOWING OPTIONAL ACCESSORIES ARE AVAILABLE AT
 ADDITIONAL COST - CALL FOR PRICING:
  - 3-JAW 6" CHUCK WITH 6" FIXTURE PLATE
  - 4-JAW 6" CHUCK WITH 6" FIXTURE PLATE
  - 5C COLLET SET (1/8" TO 1-1/16" BY 1/16")
  - 7" FACE PLATE
  - QUICK CHANGE TOOL HOLDER SET (KDK)
  - Q.C.T.H. (ALORIS)
  - VERTICAL CUT-OFF SLIDE
  - TAPER ATTACHMENT
  - 6 POSITION TURRET ATTACHMENT (MUST BE ORDERED WITH MACHINE)
  - STEADY REST
  - FOLLOW REST
  - LIVE CENTER -ROYAL (DUAL BEARING) MT#2
  - LIVE CENTER - MT #2
  - DRILL CHUCK - JACOBS WITH ARBOR (0-1/2") MT#2
  - 440V TRANSFORMER - 5 HP

 OPTIONAL DIGITAL READOUT SYSTEMS:
  - ACU-RITE 200T D.R.O. (0.00005" / 0.0001" Resolution)
  - SONY LATHEMAN D.R.O. (0.00002" Resolution)

 SUGGESTED RETAIL PRICE:
 $19,990 F.O.B. SHIPPING POINT

            * * * SPECIAL PACKAGE PROMOTION * * *
 MODEL 1118H PACKAGE A
 STANDARD EQUIPMENT: 5C collet Closer, Drive Plate,
 Headstock Cente, Drive Dog, Drive Gear, 5a Fuse, Toolbox,
 5a Bridge Rectifier, Tool Setting Gauge.
 PLUS PACKAGE ACCESSORIES: Splash guard, Lead Screw Cover,
 3-Jaw 6" Chuck with Fixture Plate, Acu-Rite T-200 D.R.O.
 Installed, Leadscrew Cover, 5C Collet Set ....... $22,300
