Reference Number: 136736

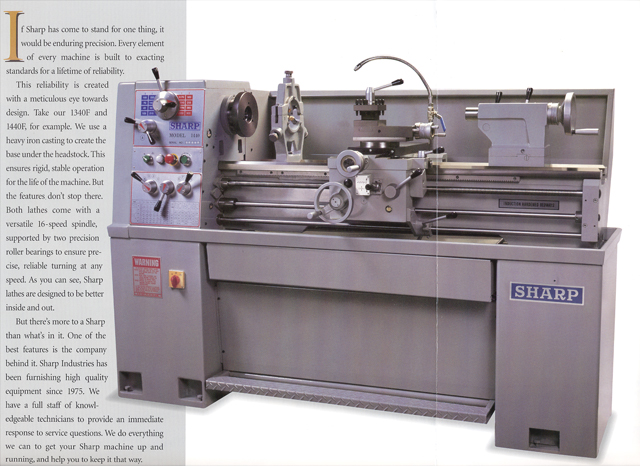

NEW SHARP PRECISION LATHE
  MODEL: 1440V w/Digital Variable Speed

 FEATURES

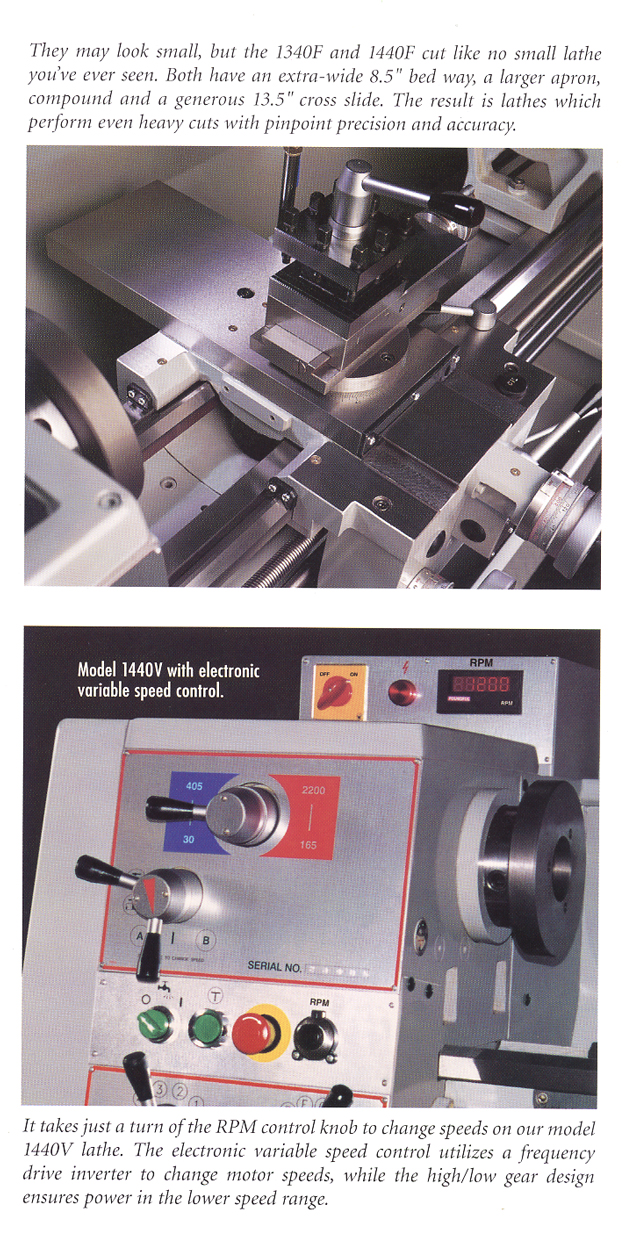

 - variable speed spindle drive with digital display
 - hi-low gear shift for spindle speed, range from 30 - 2,200 RPM
 - hardened & ground gears in headstock
 - jog button for easy engagement of gears
 - induction hardened & ground bedways for rigid structure
 - spindle supported by 2 high precision tapered roller bearings
 - carriage equipped with overload clutch to protect gears & screws
 - available for 3 phase or single phase electrics operation
 - electrically activated foot brake for quick stopping action
 - built-in cabinet for tools storage

 CAPACITY
 Swing over bed: 14"
 Swing over crosslide: 8-5/8"
 Swing over gap, width: 20"
 Width of bed: 8-1/2"
 Distance between centers: 40"

 HEADSTOCK
 Spindle nose type: D1-4 Camlock
 Spindle bore: 1-1/2"
 Spindle Speeds: 30 - 2,200 RPM
 Taper of spindle bore: MT #5

 THREADS & FEEDS
 Longitudinal feeds - inch per rev (40): 0.0012 - .0294"
 Cross feeds - in/rev (40): 0.0003 - 0.01"
 Inch threads (40): 4 - 112 TPI
 Metric threads (22): 0.45 - 7.5mm
 Leadscrew pitch, diameter: 8 TPI, 7/8"

 CARRIAGE
 Saddle width: 13-1/4"
 Apron width: 11"
 Cross slide width: 6-3/4"
 Cross slide travel: 7"
 Compound rest travel: 4"
 Compound width x length: 3-1/2 x 8-1/2

 BED
 Bed length: 66"
 Bed width: 8-1/8"

 TAILSTOCK
 Quill travel (graduated): 4-1/2"
 Quill diameter: 1-3/4"
 Quill taper: MT #3

 GENERAL
 Motor: 3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
 440 Volt Operation requires an optional transformer
 Net weight (approximately): 1,650 lbs

 STANDARD EQUIPMENT
 coolant system, 4-way toolpost, steady rest, thread dial, foot
 brake, center sleeve (MT #5 x #3), dead centers (MT #3) tool kit,
 removable gap block & splash guard.

 OPTIONAL EQUIPMENT (Call for prices)
 Follow rest, digital readout system, taper attachment, micrometer
 carriage stop, 3-jaw scroll chuck (8"), 4-jaw chuck (8"), face plate
 (12"), single toolpost, live center (MT #3), & drill chuck.
