Reference Number: 136832

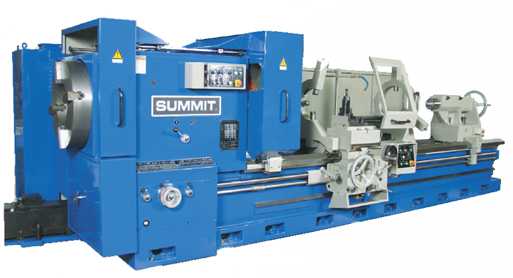

Price: On Request38 - 12 X 120 SUMMIT HEAVY DUTY CAPACITIES
HOLLOW SPINDLE LATHE
NEW!!!
SWING OVER BED ..................... 39 3/8"
SWING OVER CROSS SLIDE ............. 27 1/2"
SWING OVER GAP ..................... 51 1/8"
LENGTH OF GAP IN FRONT OF FACEPLATE. 16"
HEADSTOCK
SPINDLE BORE ....................... 12 ½"
SPINDLE NOSE ....................... A 1-20
SPINDLE SPEEDS; NUMBER ............. INF. VARIABLE
SPINDLE SPEEDS; LO ................. 4.5 - 27 RPM
HI ..................... 30 - 180 RPM
OPTIONAL SPINDLE SPEED ............. 4.5 - 450 RPM
CARRIAGE OF APRON
CROSS SLIDE TRAVEL ................. 24"
COMPOUND TRAVEL .................... 11 ¾"
SADDLE LENGTH ON BED ............... 35 1/4"
BED WIDTH .......................... 25 5/8"
LEADSCREW .......................... 4 TPI
GEARBOX
LONGITUDINAL FEEDS (NO.) RANGE ..... (30) .002 - .220 IPR
CROSS FEEDS (NO.) RANGE ............ (30) .001 - .110 IPR
THREADS PER INCH (NO.) RANGE ....... (30) ¼ -64
METRIC THREADS (NO.) RANGE ......... (30) .75-16
TAILSTOCK
QUILL DIAMETER ..................... 4 ¾"
QUILL TRAVEL ....................... 14 3/8"
QUILL TAPER ........................ MT 6
MISCELLANEOUS
STEADY REST ........................ 1 31/32" - 15 ¾"
FOLLOW REST ........................ 1 1/8" - 11 13/16"
DIMENSIONS L X W X H ............... 222"X71"X64"
WEIGHT (APPROXIMATE) ............... 27,000 LBS.
MAIN MOTOR HP ...................... 40 HP
STANDARD FEATURES
AC SPINDLE DRIVE W/AC BRUSHLESS SPINDLE MOTOR
QUICK CHANGE GEARBOX
INCH/METRIC THREADING
HYDRAULIC THREAD KICK OUT
HELICAL GEARED MAIN DRIVE
AUTOMATIC WAY LUBE
3 WAY BED
INCLUDED ACCESSORIES
- STEADY REST
- FOLLOW REST
- THREAD DIAL
- COOLANT SYSTEM
- TAPER ATTACHMENT
- FRONT & REAR 4 JAW CHUCKS (MAX RPM, 180)
- 4 WAY RAPID TRAVERSE
0
OPTIONS
- QUICK CHANGE TOOL POST W/ HOLDERS
- FAGOR 2 AXIS DIGITAL READOUT
ELECTRICS
220/440/3/60
