Reference Number: 136887

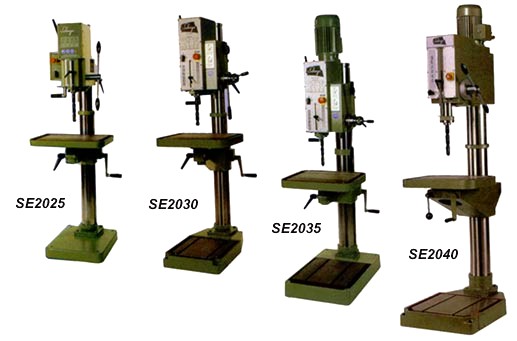

NEW WILLIS-SOLBERGA (SWEDEN) DRILL PRESSPrice: $11,360
MODEL: SE-2040
FEATURES:
Helical drive Gears with fiber to steel mesh provide virtual
maintenance free, quiet & efficient operation
Spindles and columns are made of top quality Swedish steel
Spindles are designed recessed into the quill housing providing
superb rigidity
Powerfeed units are equipped with an automatic feed overload
Each machine is equipped with electrical thermal overload switch,
no-volt release and emergency stop
SPECIFICATIONS:
Drills to the center of circle: 26"
Driling capacity, mild steel: 1.6"
Spindle travel: 7.5"
Quill diameter: 2-3/4"
Spindle taper, MT: 4
Spindle speeds (8): 108 - 1800
Available powerfeed rates (4): 0.004 - 0.013
Max distance spindle - table: 33"
Column diameter: 5.5"
Table size: 20" x 24"
Vertical travel od drill head: Fixed
Vertical travel of table: 25"
HP (low speed/hi speed): 3
Weight: 700 lbs.
OPTIONS (call for pricing):
Powerfeed Unit
Flanged Quill w/Double Return Spring
Foot Operated Reversing Switch
Coolant Package
Larger Tables Sizes
Gang Drill Bases (several sizes available)
Machine is also availabe in a bench model
Machine is available with a 40" column for mounting on gang base
