Reference Number: 136921

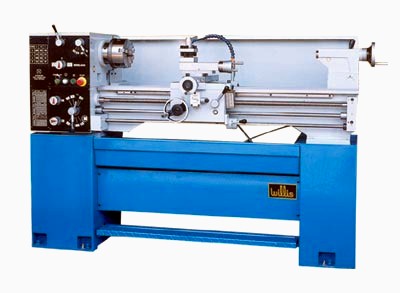

NEW WILLIS LATHE
 MODEL: 1440E

 FEATURES
 - 3 HP spindle motor
 - Hardened & ground headstock gears & shafts
 - Hardened & ground bed ways
 - All cast iron body
 - Headstock runs in oil bath, Norton feed gear box and apron
 - Left hand side apron wheel
 - Machine comes complete with many accessories
 - Foot brake
 - Inch/metric thread cutting capability
 - D1-4 camlock spindle
 - Removable gap
 - 110-volt operation controls plus overloads, transformer,
 contractors, emergency stop switch

 SPECIFICATIONS
 Swing over bed: 14"
 Swing in gap: 20-1/4"
 Swing over cross slide: 8-5/8"
 Center distance: 40"
 Bed width: 7-1/2"
 Spindle bore: 1-1/2"
 Spindle nose: D1-4
 Spindle taper: #5MT
 Spindle speeds (9): 80 - 2000 RPM
 Cross slide travel: 6-1/2"
 Compound slide travel: 3-3/8"
 Longitudinal feeds (16): 0026 - .064 IPR
 Cross feeds: 0013 - .032 IPR
 Metric threads - quantity/range (30): 4 - 7.2mm
 Inch threads - quantity/range: 2-3/4 - 56 TPI
 Legscrew: 4 TPI
 Bed length: 66"
 Tailstock center taper: 3MT
 Tailstock spindle travel: 4-3/8"
 Tailstock spindle diameter: 1-5/8"
 Motor hp: 3
 Max tool size: 3/4"
 Coolant pump: 1/8 hp
 Floor space: 71" x 19" x 46"
 Center height over floor: 42"
 Gross weight: 1584 lbs.
 Net weight: 1364 lbs.

 STANDARD EQUIPMENT
 - 3 HP main spindle motor
 - Coolant system complete
 - 3-jaw 6" chuck
 - 4-jaw 8" chuck
 - Rapid foot brake
 - 4-way tool post
 - Back plate for 3-jaw chuck
 - Rear splash guard
 - 10" face guard
 - Back plate for 4-jaw chuck
 - Center sleeve (5MTx3MT)
 - Center (3MT)
 - Tool box & tool kit
 - Steady rest
 - Follow rest

 OPTIONAL EQUIPMENT - CALL FOR PRICING
 - Chuck Guard
 - Work Light
 - Other brands and sizes of chucks
 - Micrometer bed stop
 - Taper Turning Attachment
 - Quick Change Toolpost w/Holders
 - Royal 5C Lever-Type Collet Closer
 - 5C Collet Sets
 - 2 Axis Sony, Acu-Rite or Newall DRO Installed
