Reference Number: 137071

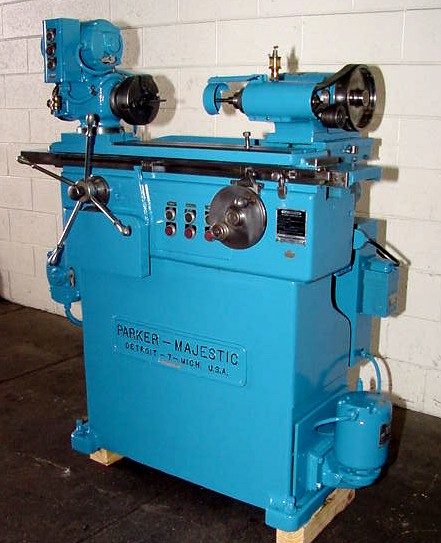

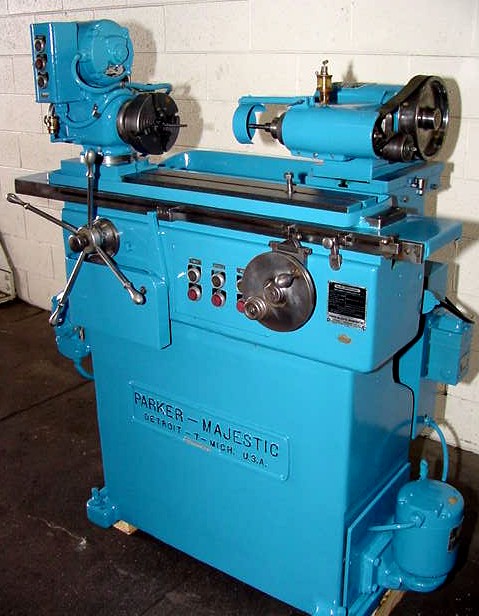

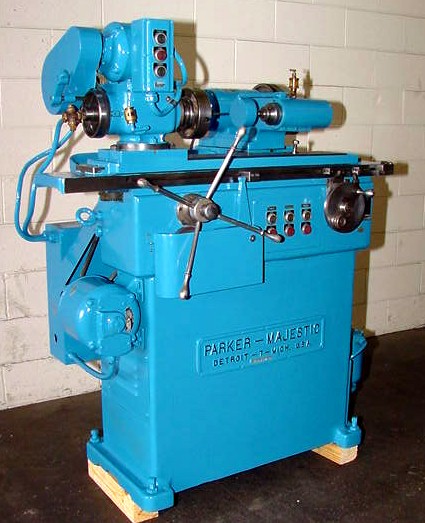

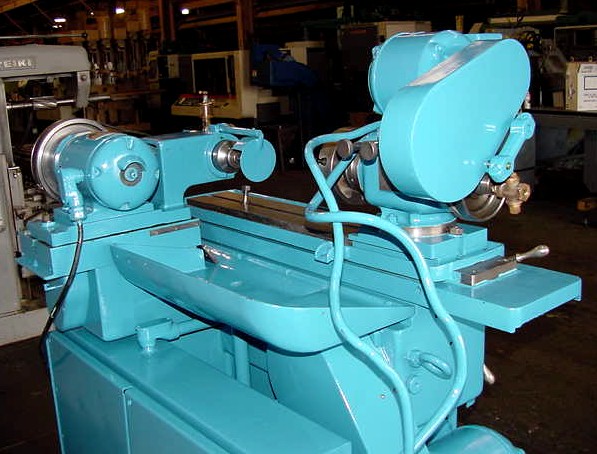

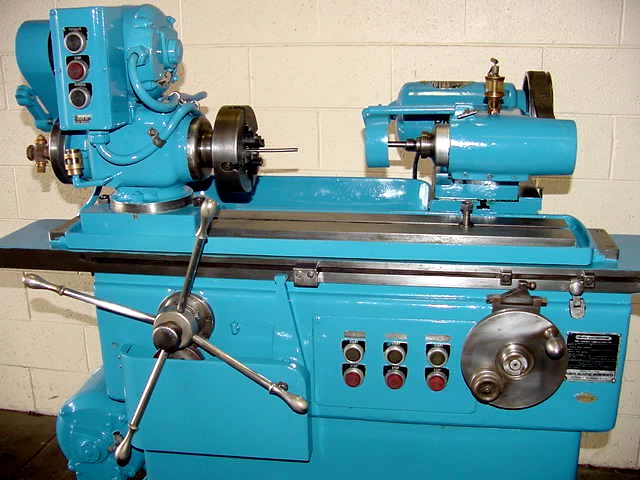

  PARKER-MAJESTIC INTERNAL GRINDER

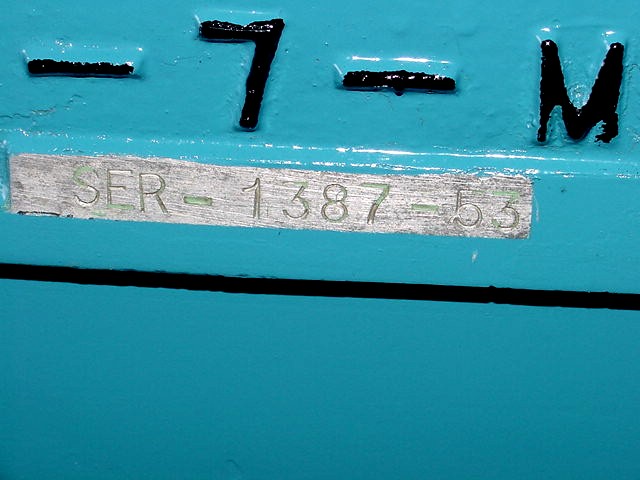

  MODEL: A      S/N: 1387-53     NEW: 1953

 SPECIFICATIONS:
 SWING OVER TABLE........................ 10"
 TABLE TRAVEL (POWER FEED)............... 12"
 POWER TABLE SPEEDS (4) .......... 12", 24", 36" OR 48" IPM
 TABLE TRAVEL WITH RECIPROCATOR.......... 0 TO 3"
 RECIPROCATOR SPEEDS TO TABLE
  (REVERSALS/MIN.)....................... 30, 50, 75 & 100
 ANGLE SETTING OF TABLE (MAXIMUM)........ 5 DEGREES
 TABLE WORKING SURFACE................... 5" X 33- 1/2"

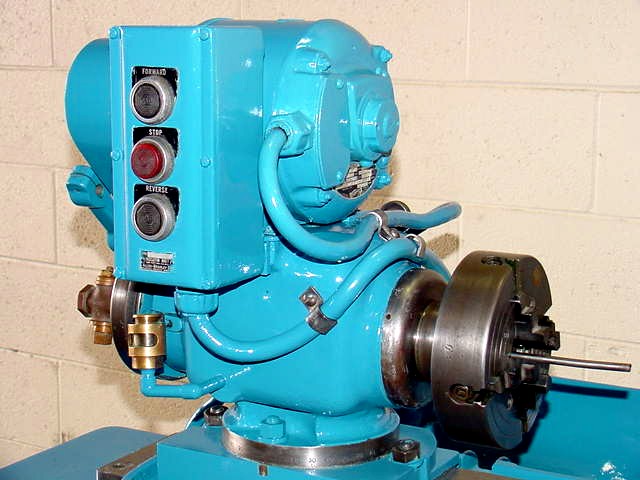

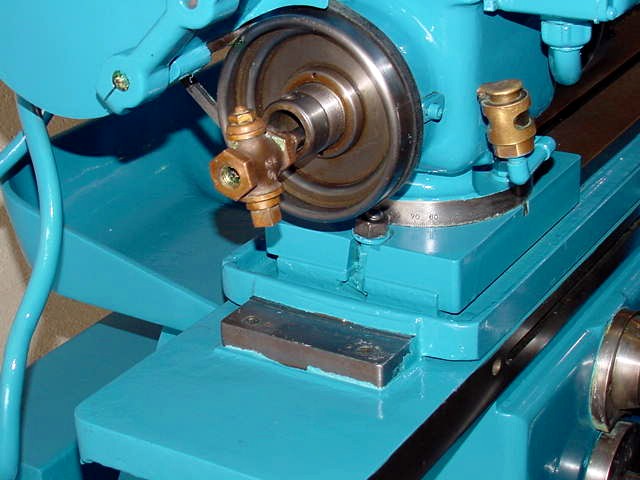

 SWIVEL OF WORK HEAD..................... 90 DEGREES
 HOLE THROUGHT WORK HEAD SHAFT........... 13/16"
 COLLET CAPACITY OF WORK HEAD............ 5/8" MAX.
 WORKHEAD SPINDLE SPEEDS ................ 175, 325, & 425 RPM
 TRAVEL OF CROSS SLIDE BY LEADSCREW ..... 2- 1/4"
 FULL RANGE OF CROSS SLIDE IS ........... 7"
 GRADUATIONS OF CROSS SLIDE HANDWHEEL ... 0.001"
 GRAD. OF HANDWHEEL VERNIER DIAL ........ 0.0001"

 FLOOR AREA............................. 32" X 62"
 APPROX. MACHINE WEIGHT ................ 1,900 LBS.

 EQUIPPED WITH:

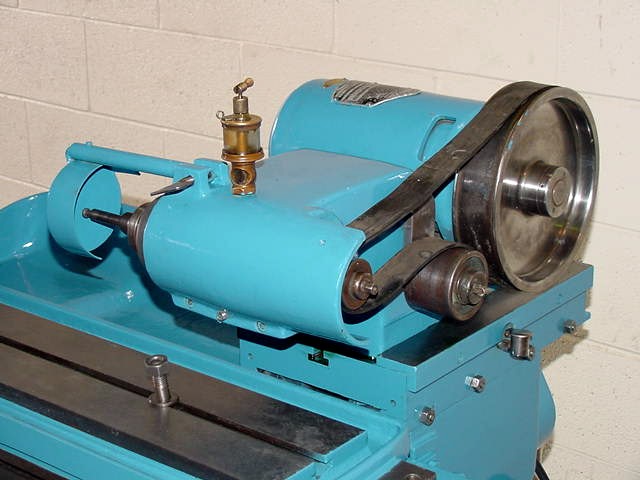

 PARKER-MAJESTIC I.D. SPINDLE, MODEL 19-AL (S/N: 26690).
  25,000 RPM ..... SPINDLE IS 11" LONG x 3" DIAMETER.
  ARBOR WITH SPINDLE IS 3/8" DIAMETER x 1- 3/4" LONG.
 POWER FEED - THIS FEED IS MOST USEFUL FOR TABLE STROKES
  OF LONGER THAN 3".
 RECIPROCATOR ACTUATED BY MEANS OF A LEVER.
  FOR STROKES 0 TO 3" AT 30, 50, 75 OR 100 PER MINUTE

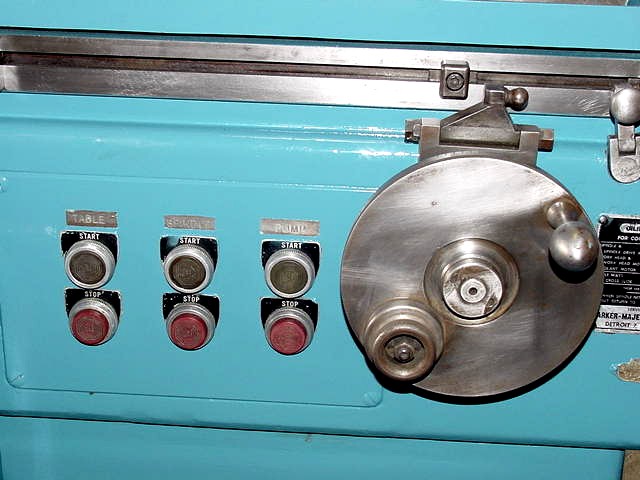

 MICRO ADJUSTMENT OF CROSS FEED (.0001" GRAD.)

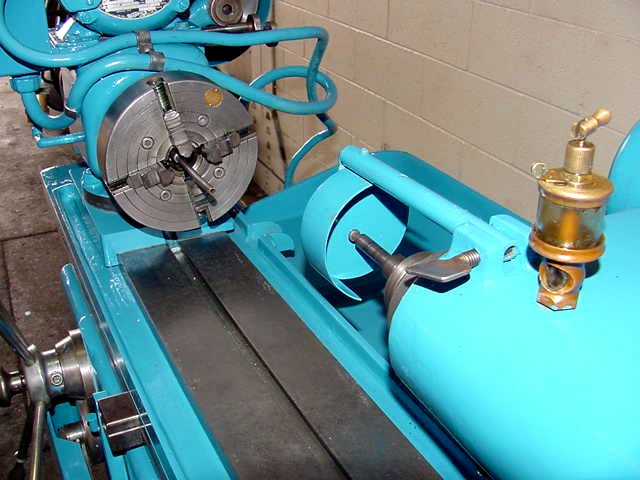

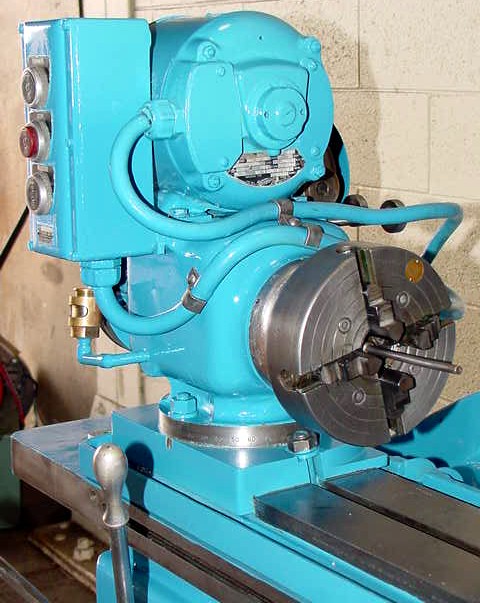

 "WESCOTT" 6" DIAMETER 4-JAW CHUCK  w/INDEPENDENTLY
  ADJUSTABLE JAWS
 SELF-CONTAINED COOLANT SYSTEM
 COOLANT CAN BE FED THRU WORKHEAD SPINDLE OR OVER
  I.D. SPINDLE
 WORK LIGHT

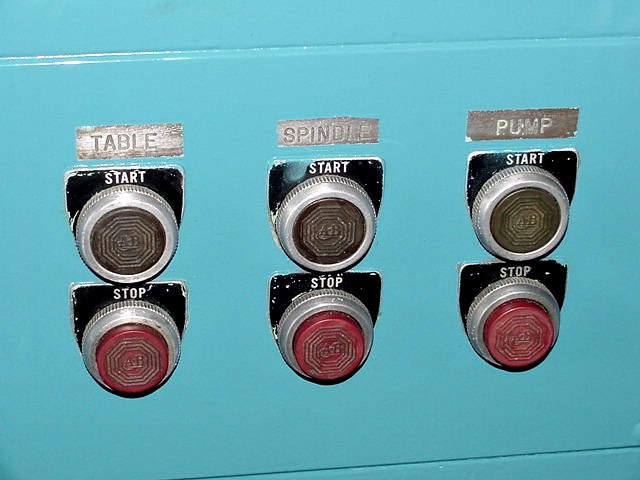

 ELECTRIC CABINET MOUNTED ON REAR OF MACHINE
 MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS


 ** GOVERNMENT SURPLUS MACHINE - FROM STANDBY STORAGE **
 ** TRULY SUPERB CONDITION & APPEARANCE **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
