Reference Number: 137125

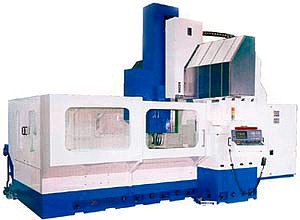

New Willis Bridge Type Vertical Machining Center
 Model: KMV-32P

 X, Y and Z travels: 70" x 126" x 35"

 Willis multi-purpose 50 taper bridge type VMCs are
 standard with the Fanuc 18i-MB CNC control, including
 mpg hand wheel with a maximum table load of 11,000 lbs.
 Machine includes a 30 hp AC servo spindle motor, ZF 2-
 speed gearbox with automatic gear shifting providing
 maximum spindle torque from 30 - 4500 RPM (30 - 8,000
 optional), AC axis motors and drives, CAT 50 taper
 spindle, arm type 24 ATC, oil chiller for axes ball, screws
 and spindle gearbox, screw type chip conveyor, flood
 coolant equipment with multiple adjustable coolant
 outlets, head counterbalance, steel telescopic guide ways
 of bed and cross beam, and a full splashguard enclosure
 with removable chip container. Halogen lighting, 10
 retention knobs, leveling screws and shims, spare fuses,
 maintenance tools, technical literature and PLC on a
 floppy disk are all standard equipment.

 11,000 lb. table load
 30 HP  #50 taper spindle
 2 Speed gearbox for max torque
 Up to 394 "/min feedrate
 Oil chiller for spindle and ballscrews is standard

 Optional Accessories:
 - 8,000 RPM spindle
 - Up to 60 tool ATC
 - Higher spindle speeds
 - 4th axis rotary table, numerous sizes available
 - Coolant thru spindle
 - Chain type chip conveyor with cart
 - Multi-angle milling head
