Reference Number: 137139

New "Birmingham" Heavy Duty Hydraulic Shear
 Model: H-0865  (8' x 1/4")
 96" x 1/4" Mild Steel & 3/16" Stainless Steel

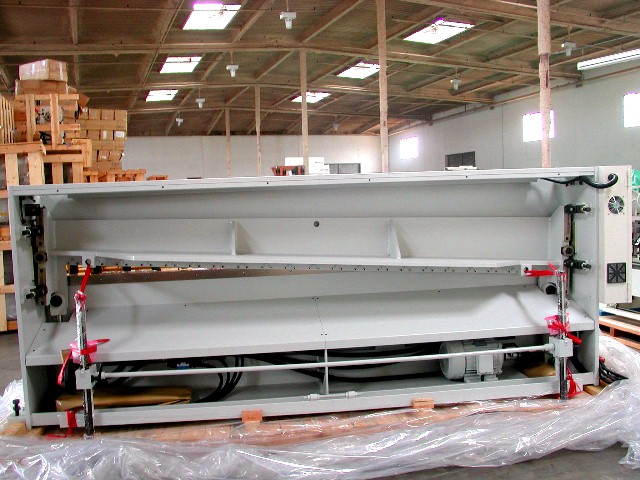

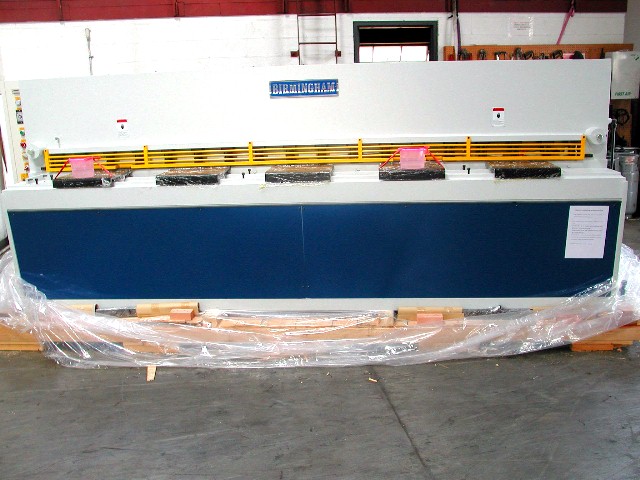

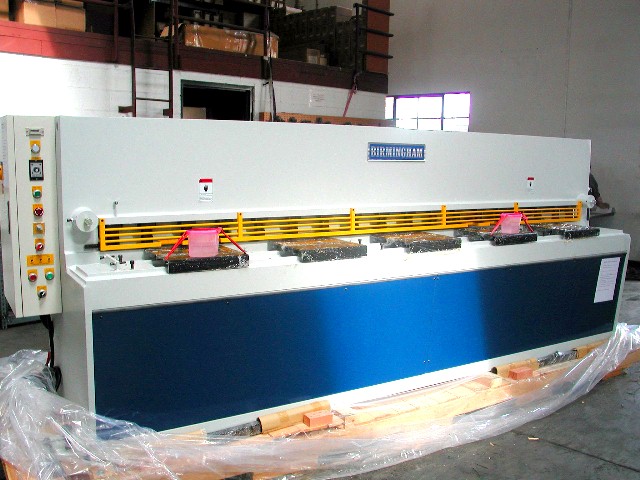

 Note:  Image show is model H-1035 (10'- 10 Ga. model)



 MAIN FEATURES:
 Well balanced and sturdy welded machine all steel frame provides
 constant stability and rigidity.  The centralized hydraulic logical
 system offers the best performance with a quiet hydraulic pump.
 Independent hydraulic pressure hold-downs synchronized with upper
 blade, ensuring the workpiece is securely clamped at the moment of
 cutting.  High grade carbon/chrome alloy steel blades ensure
 maximum accuracy cutting and longer blade lide, 60hrc hardened.
 easy to utilize blade gap setting (BGA)  Hydraulic adjustable rake
 angle design is a standard feature for all models, rake angle is
 hydraulically variable djustable with gauge selection indicators,
 minimizing bowing and twisting.  Adjustable cutting length and
 stroke.  Shadow line lighting covering full length of worktable, this is
 very helpful to operator for positioning and shearing workpiece.
 Worktable mounted with ball transfer type plates, for easier loading
 and moving workpiece.  Full-length and full view safety finger guard,
 to protect operator from cutting hazard.  Removable foot remote
 pedal is fitted with safety protection, the upper blade beam will rise
 to top position immediately. On removal of foot from the pedal.  All
 motors and pumps are overload protected.  Jog, single, or
 continuous cutting operation modes.


 STANDARD ACCESSORIES:
 High grade, high carbon/ chrome alloy steel 2-edge upper blade,
 and 4-edge bottom blade, 60hrc.  Hydraulic rake angle adjustment.
 Two 40" front suppoet arms with front setters.  One 40" squaring
 arm with inlaid dual scale.  Single axis 32" NC programmable front operated power back gauge (H-0865/H-1065/H-1365 only), with
 0.3" retract function.  Full length finger guard and shadow line
 lighting (light beam).  Hydraulic independent hold-downs.  Overload
 protected hydraulic system.  Removable foot control pedal with

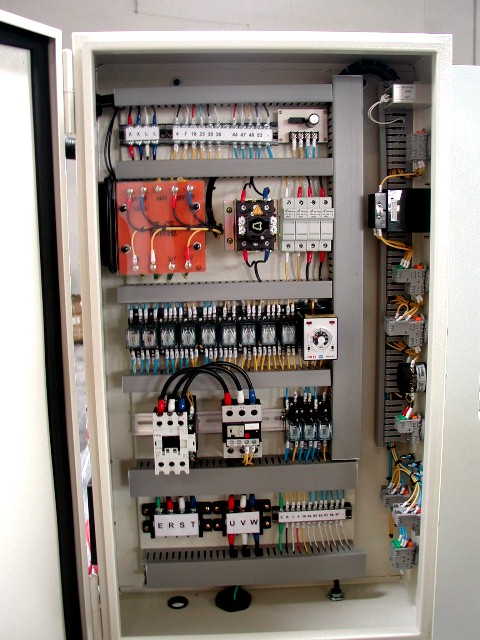

 safety protection.  Full electrics & cabinet with operation panel.
 Stroke (cutting piece) counter.  Tool box and leveling pads.


 SPECIFICATIONS:
 Cutting Capacity: 8'
 Mild Steel:  1/4"
 Stainless Steel: 7 Ga. (3/16")
 Blade Length: 8'4"
 Strokes Per Minute (SPM): 26-40
 Hold-Downs - Number: 13
 Hold-Downs - Pressure (Tons): 13
 Front Support: 40"
 Back Gauge: 32" N/C
 Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
 Top Blade Rake Angle: 1/2-2 Degrees
 Motor: 15 hp
 Oil Tank Capacity: 60 gallons
 Net Weight: 12,800 lbs.
 Overall Dimensions (w/o support arm): 138" x 70" x 85"


 OPTIONAL ACCESSORIES:
 - Angle gauge
 - Pneumatic-type thin sheet supporter.
 - Power back gauge with lifting function.
 - 60"/80"/120" front support arm.
 - 60"/80"/120" squaring arm with dual scale.
