Reference Number: 137172

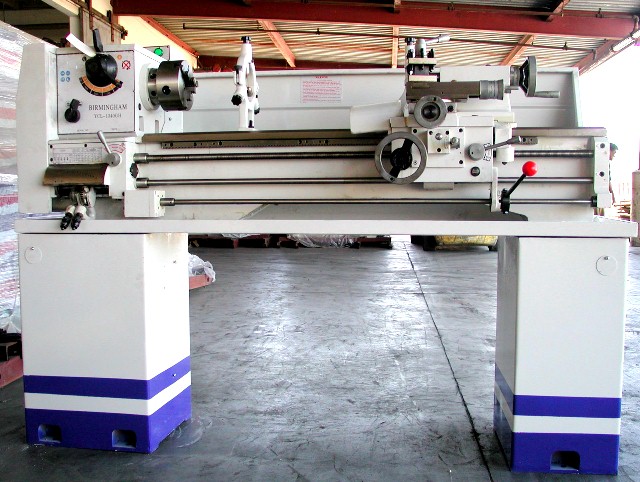

New All Gear Head Bench Lathe
 Model: YCL-1340GH
 Free Delivery to any of the lower 48 States

 Swing Over Bed 13"
 Between Centers 40"
 D1-4 with 1 3/8" Spindle Bore
 Width of Bed 7 3/8"
 Lathe bed is constructed of high tensile strength cast iron,
  rigid structure with hardened and ground ways
 Precision main spindle loaded on high quality precision bearing
 (2ea) 30212-30210
 8 speed headstock with 70 to 2,000 rpm.
 Speed changes by headstock quick change lever action.
 Permanently filtered oil headstock bath provides clean running oil
  for long life of bearings & Gears.
 2HP main motor- heavy duty for its class, wired 220 single phase.
 Manufacture includes heavy duty floor stands, along with full
  length splash guard as standard equipment .

 Standard Equipment:
 Free Delivery to any of the lower 48 States
 6" 3 Jaw Chuck
 8" 4 Jaw Chuck
 3-3/4" Steady Rest
 Follow Rest
 Removable Gap Block
 4-Way Tool Post
 Thread Dial
 (2) Dead Centers
 Reducing Sleeve
 Full Length Splash Guards
 Chip Tray
 Tool Box

 Options (call for pricing):
 Taper Attachment
 Micrometer Carraige Stop
 10" Faceplate
 Halogen Work Light
 Digital Readouts - Newall Topaz or Sargon Gold Standard
 5C Lever Type Collet Closer
 Foot Brake
 Halogen Work Light
 Coolant System - tank, pump & piping
 Leveling Pads
