Reference Number: 137208

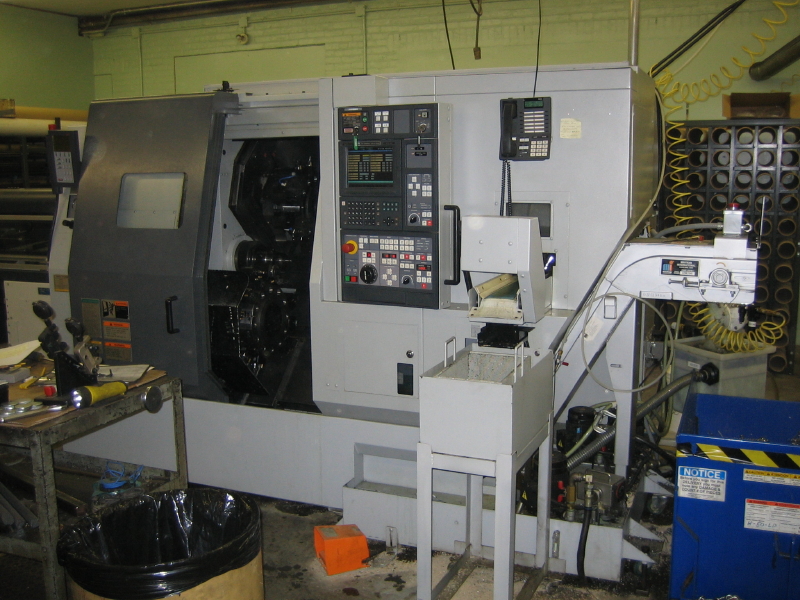

MORI SEIKI MODEL: ZT-1000Y CNC TURNING CENTER with DUAL TURRETS, Y-AXIS, SUBSPINDLE, MILLING CAPABILITIES, AND MORI MAPPS CONTROLPrice: On Request
NEW: 11/2002 INSTALLED: 2004
Travel
X1- Axis ....................................................... 5.3"
X2- Axis ....................................................... 5.3"
Z1- Axis ....................................................... 17.7"
Z2- Axis ....................................................... 17.4"
Y1-Axis ....................................................... +/- 1.6"
B-Axis (Headstock 2) ................................... 20.7"

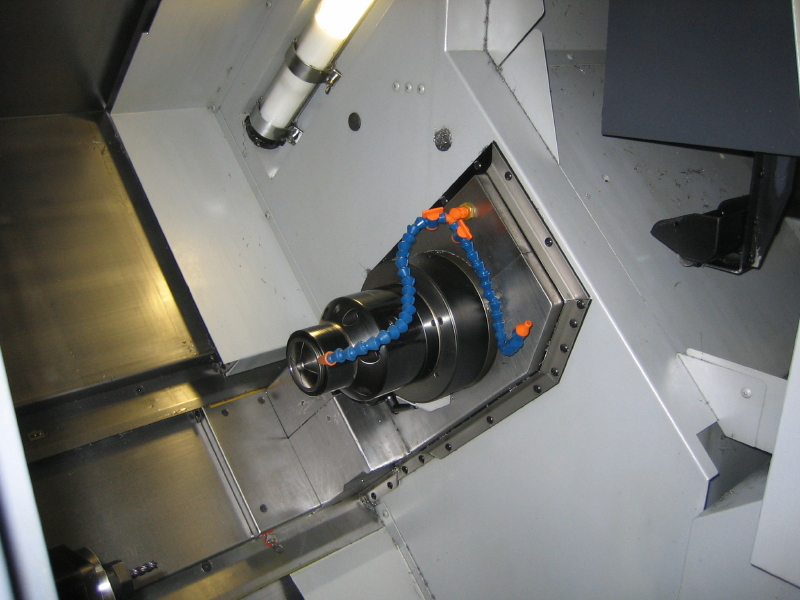

Distance Between Spindle Noses ................... 29.5"
Bar Work Capacity ....................................... 1.57"
Spindle Through Hole .................................... 1.93"
Spindle Noses ............................................... A2-5

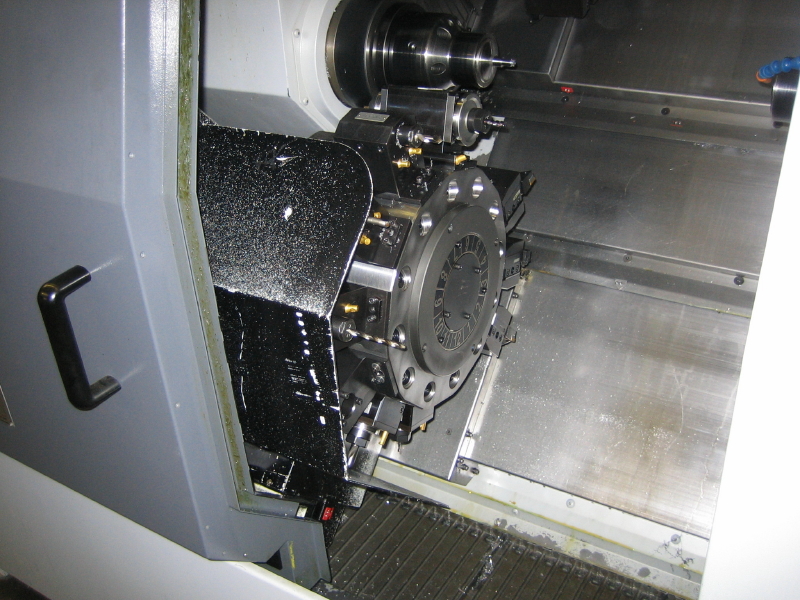

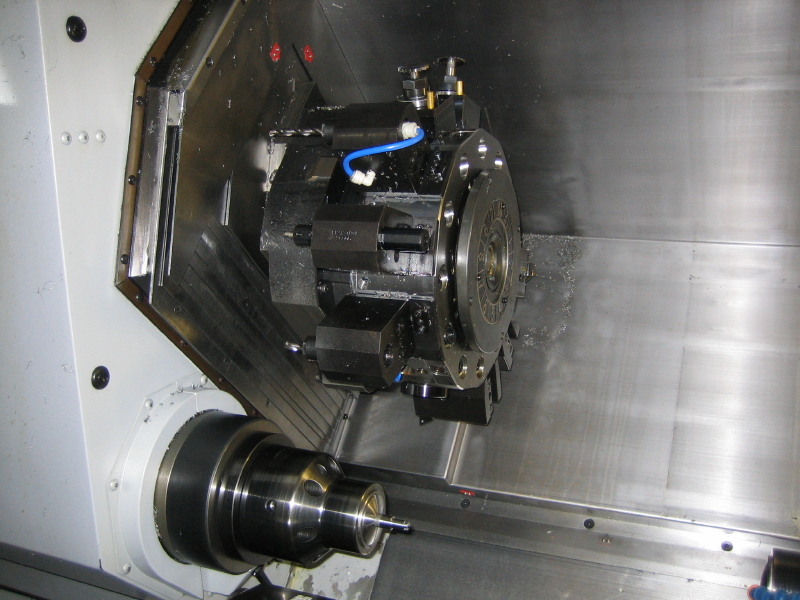

Turret
Tool Capacity Turret 1 .................................. 12
Tool Capacity Turret 2 .................................. 12
Turret indexing time ....................................... .2 Sec <1-Station>
Feedrate Rapid Traverse (in/min) .................. X1 / X2 708.7
Z1 / Z2 944.9
Y 236.2
B 944.9
C (Spindle) 400-1
Jog Feedrate (in/min) .................................... X / Z / B 0-197.0
Spindle Drive:
Spindle Speed Range (Both Spindles) .......................... 6,000 RPM
Standard Power .......................................................... 10 HP
Milling Specifications:
Positions Available For Live Tools .............................. 24
Rotary Tool Spindle Speed ......................................... 6,000 RPM
Live Tool Spindle Horse Power .................................. 5.1HP
Approximate Weight .................................................. 11,000 LBS
Approximate Floor Space .......................................... 109"x77"
Equipped With:

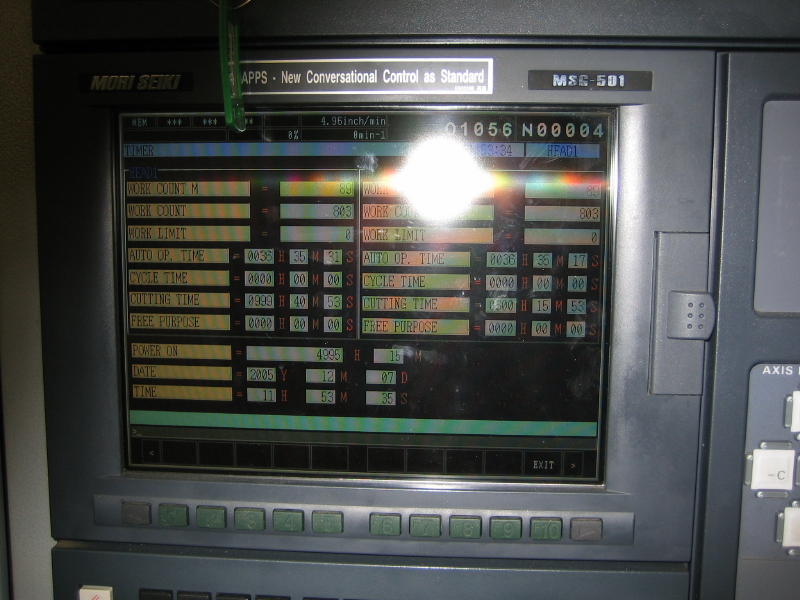

- MSG 501 Control w/Mapps
- Removable Manual Tool Presetter
- Full Rotary C-Axis Both Spindles
- Through Turret Coolant System
- Air Blow For Subspindle
- Parts Ejector Right Spindle
- Cut Off Confirmation Left Spindle
- Barfeed Interface For Left Spindle
- 15 HP Upgrade For Left and Right Spindle
- Gantry Parts Catcher
- Work Conveyor
- External Chip Conveyor
- ATS Collet Chucks Main & Sub

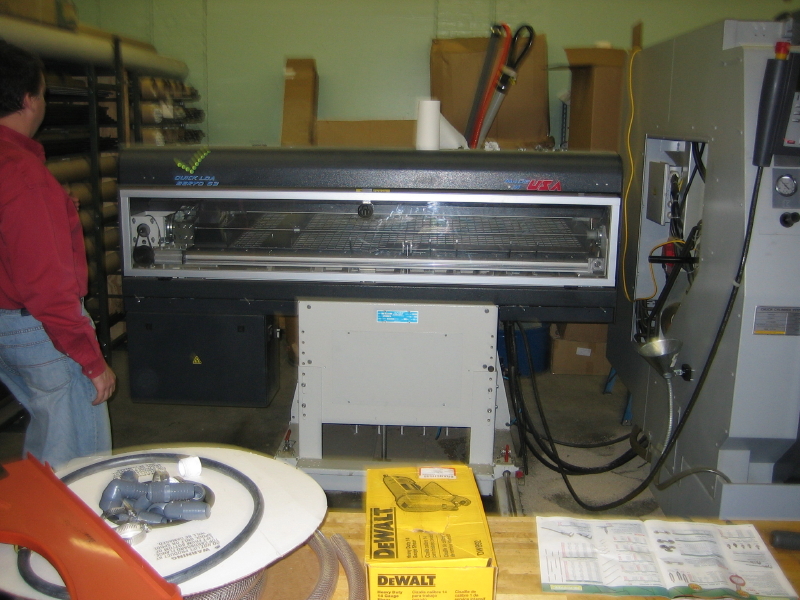

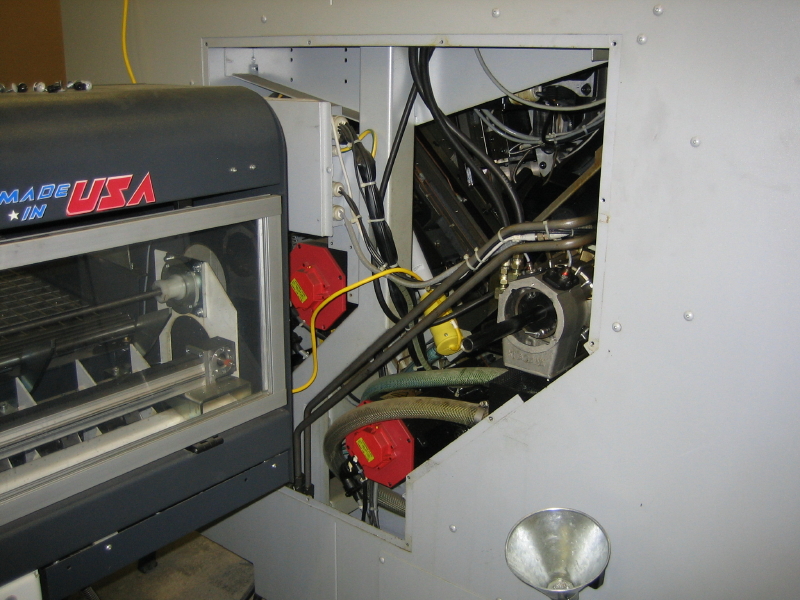

- LNS Quick Load Servo II Magazine Barfeed
