Reference Number: 137282

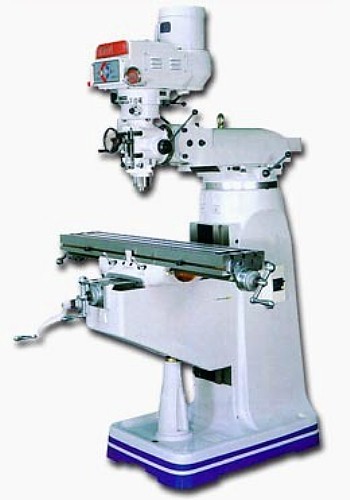

New "Birmingham" Knee Type Milling Machine
 Model: BPV-3942

 Made in Taiwan
 9" x 42" Hardened and ground table and T slots
 3 HP (3 phase)
 Infinitely variable spindle speeds
 Class 7 spindle bearings
 Dovetail ways
 Turcite B on ways for smooth movement
 Dual saddle locks and dual knee locks
 Large easy to read chrome satin dials
 Distance from spindle nose to table surface - 2-18"
 Distance from spindle center to column surface - 6-3/4 - 18-3/4"
 Spindle speeds 60-4300 RPM
 Spindle taper - R-8
 Quill dia. - 3-3/8"
 Spindle motor, 3 HP - 3 phase 220 or 440 Volt
 Net weight - 2,400 lbs.

 Standard Accessories:
 Hardened & ground ways (X & Y)
 Chromed quill-honed head
 Drawbar/service wrench
 Hardened & ground table
 Coolant sump in column
 Coolant drain in base
 Front & rear chip guard
 One-shot lubrication
 Double knee locks-ratchet style
 Chromed turn-in-the hand handles
 Operation/service manual
 MEEHANITE CASTINGS

 OPTIONAL EQUIPMENT (call for pricing):
 49" Table Length with longer X axis travel
 2 or 3 Axis Digital Readouts - Newall, Acu-Rite or Mitutoyo
 Power Feeds for Table, Cross Feed and/or Knee
 6" Precision Vise with Swivel Base
 Slotting/Shaping Attachment (fits most Bridgeport-type mills)
 Horizontal Milling Attachment (fits most Bridgeport-type mills),
   complete with 1" Milling Arbor & Arbor Support
 Work Lights
 Flood & Spray Mist Coolant Systems
 Rotary Table
 52 Pc. Clamping Kit
 11 Pc. R8 Collet Set
 Power Draw Bar unit
 Perishable tools
