Reference Number: 137299
Price: $3,250New Rong Fu Bench-Top Geared Head Vertical Mill-Drill
Model: RF-45

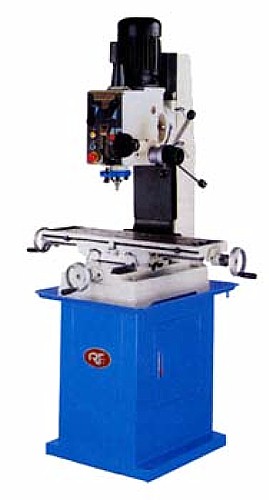

Note: Photo shows RF-45 with optional stand
Made in Taiwan
Swing - 20"
No. of T slots - 4 (5/8")
Spindle quill dia. - 3"
Spindle speeds - 60, 130, 230, 450, 800, 1500 RPM
Spindle to table max. - 18"
Spindle to column max. - 10"
Square Column - 36.2"H x 11"W, dovetail ways
Drilling cap. - 1.25" steel, 1.5" cast iron
Available in 110 v 1 ph. or 220 v 3 ph.
Overall dimensions - 43D x 38W x 44"H w/o stand, 43x38x74"H w/stand
Approx. net weight - 800 lbs w/o stand, 870 lbs w/stand Approx.
Specifications:
Table size 32.2" x 9.5"
Long. travel w/o power feed 20.5"
Cross travel 8.2"
Spindle taper R8
Spindle speed 60-1500(6)
Quill travel 5.1"
Head swivel R & L 90L, 45R
Spindle motor 1.5 HP, 1 or 3 ph
Net weight 800 lbs w/o stand
Delivery Information: Generally in stock for immediate shipment
Optional Equipment:
Floor Stand - $140.00
Power Longitudinal Table Feed - $375.00
2-Speed Motor (220 v 3 ph only) - $450.00 (special order)
Quill Power Downfeed - $500.00
