Reference Number: 137382

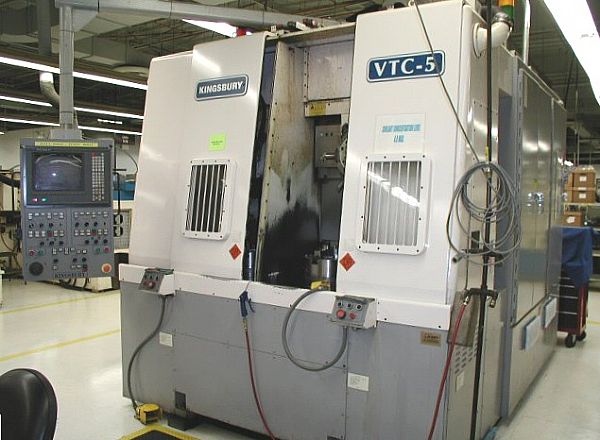

Kingsbury VTC5 CNC Twin Spindle 4 Axis Vertical Turret Lathe New In: 1998 ( Exceptional Condition / 2000 hours )
Maximum Swing: 23"
Chuck Size: (will take 15") (2) x 12"
X-Axis Travel: 10.5"
Z-Axis Travel: 14"
Spindle Speeds: 10 to 3,800 RPM
Tool Capacity: (2)x 8 Positions
Main Motor Drive: 50 HP
Both sides that can be operated independently Left Side has 2 Linear Axes (X1/Z1),A Servo Drum Turret and Left Spindle Right Side has 2 Linear Axes (X1/Z1),A Servo Drum Turret and Right spindle Linear Positioning is accomplised with Mitutoyo Glass Scale Encoders Furnished W/ (2) Spindles that are supported by (2) Sets ABEC Class 7 precision designed to withstand heavy axial and radial loads. (1) Drum Tool Turret Located on each side of the VTC-5
Equipped With:
Fanuc 16TT CNC Control
(2) 50/60 (cont./30 min) HP AC Spindle Drive Motors
(4) AC Axis Drive Motors
(2) 12" 3 Jaw Hydraulic Chucks (15" standard)
Chip Conveyor
Full Guarding
Spindle Probes
High Pressure Coolant
Manuals, Documentation
One Year Warranty Available On This Product
Price: On Request
