Reference Number: 137462

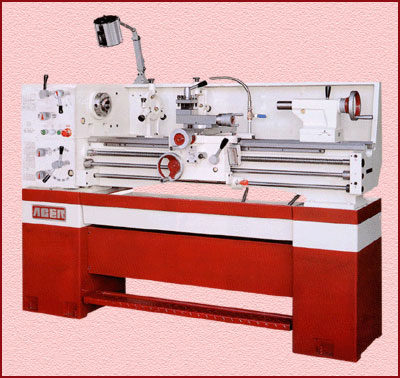

"NEW" ACER High Speed Precision Engine Lathe
  MODEL: Dynamic Series 1340G

 SPECIFICATIONS:
 Center Height: 6-1/4"
 Swing Over Bed: 13"
 Swing Over Gap: 19-1/4"
 Swing Over Cross Slide: 7-5/8"
 Distance Between Centers: 40"
 Spindle Nose: D1-4 or A1-5
 Spindle Bore Diameter: 1-1/2"
 Type of Spindle Nose: MT#5
 Taper of Center: MT#3
 Spindle Speeds: 80-2000 RPM (9 steps)
 Cross Slide Travel: 6-7/8"
 Compound Rest Travel: 4"
 Max Size Cutting Tool: 3/4" x 3/4"
 Spindle Diameter: 1-7/16"
 Spindle Travel: 4-3/8"
 Taper of Center: MT#3
 Bed Length: 54"
 Bed Width: 7-1/2"
 Width of Gap: 7-5/8"
 System: Inch
 Pitch of Leadscrew: 24 Diameter, 4 TPI
 Metric Pitch Threads: 0.4 - 7mm/pitch (30 kinds)
 Range of Longitudinal Feeds: 0.0016" - 0.03"/rev.
 Range of Cross Feeds: 0.0008"-0.015"/rev.
 Main Drive Motor: 3 hp
 Coolant Pump Motor: 1/8 hp
 Floor Dimensions: 67-3/4" x 28-3/8"
 Net Weight: 1320 lbs.
 Gross Weight: 1540 lbs.
 Packing Dimensions: 75" x 30" x 58"

 Features:
 HEADSTOCK: All gears are made with chromium molydenum
 steel and are hardened & ground to its accuracy. A forced
 lubrication system lubricates all running gears and bearing within
 the headstock.
 GEAR BOX: Unique two lever universal gear box offers a wide
 range of cutting capacity. All ranges can be reached by moving
 two levers and two dials.
 SPINDLE: 1-1/2" bored spindle is made from medium carbon steel
 and is induction hardened & ground to its final accuracy. It also
 has a two-point support with both bearings being taper roller.
 APRON: Automatic feeding and threading in apron are fully
 interlocked to prevent simultaneous engagement of both functions.
 TAILSTOCK: Keyed 1-7/16" diametered quill is hardened to
 Rockwell C 55° & ground to its inspection accuracy.
 Nine-step speeds.
 Oil level indicator.
 Standard foot brake.
 24 volts safety control circuit.
 Weigh in at 1,320 / 1,380 lbs.
 Safety overload device.
 Forward/stop/reverse lever.
 Chip-pan (Removable type).
 Oil level indicator.
 Precision ground saddle ways.
 Half nut engagement handle.
 Hexagonal bed web.
 Oil lubricated leadscrew.
 7-1/2" wide bed way with FC-30 casting iron.
 Two-tone automotive paint.

 Standard Accessories:
 6" 3-jaw chuck
 8" 4-jaw chuck
 10" face plate
 Removable Gap Block
 Micrometer carriage stop
 Steady rest (.78" - 2.15")
 Follow rest (.78" - 1.97")
 4-way tool post
 Coolant system
 Full length splash guard
 Halogen work light
 Tool box with tools

 Optional Accessories (call for pricing):
 Aloris or Dorial Tool Posts and Holders
 Micrometer Carriage Stop
 Four Position Carriage Stop
 5C Lever Operated Collet Closer
 5C Handwheel Type Collet Closer
 Taper Turning Attachment
 Newall or Sony 2 Axis Digital Readouts
