Reference Number: 137480

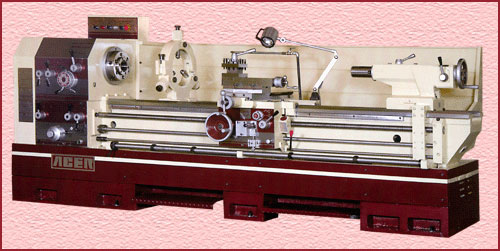

 "NEW" ACER High Speed Precision Engine Lathe
  MODEL: Dynamic Series - 2060G

 SPECIFICATIONS:
 Center Height: 10"
 Swing Over Bed: 20"
 Swing Over Gap (gap type only): 29.5"
 Swing Over Cross Slide: 12"
 Distance Between Centers: 60"
 Spindle Nose: D1-8 or ASA-A1-8
 Spindle Bore Diameter: 3-1/16"
 Type of Spindle Nose: MT#8
 Taper of Center: MT#5
 Spindle Speeds: 30-1500 RPM (16 steps, 2 spd motor)
 Cross Slide Travel: 13.2"
 Compound Rest Travel: 8"
 Max Size Cutting Tool: 1" x 1"
 Spindle Diameter: 3"
 Spindle Travel: 7"
 Taper of Center: MT#5
 Bed Length: 107"
 Bed Width: 14.96"
 Width of Gap: 10"
 System: Inch/Metric
 Pitch of Leadscrew: 1-1/2" Diameter, 4 TPI
 Metric Pitch Threads: 0.5 - 7mm/pitch (21 kinds)
 Inch Pitch Threads: 4-56 TPI (40 kinds)
 Module Pitch Threads (optional): 0.25-3.5 MP (14 kinds)
 Diametral Pitch Threads (optional): 8-112 DP (18 kinds)
 Range of Longitudinal Feeds: 0.0015" - 0.0216"/rev.  0.04 -.60mm/rev. (40 kinds)
 Range of Cross Feeds: 0.0015"-0.0216"/rev.  0.04 - .60mm/rev. (40 kinds)
 Main Drive Motor: 10 hp  220 or 440 Volt 3 Phase
 Coolant Pump Motor: 1/8 hp
 Floor Dimensions: 115.35" x 57.48 x 56.69"
 Net Weight: 5940 lbs.
 Gross Weight: 6600 lbs.
 Packing Dimensions: 122.04" x 44.50" x 82.68"

 Features:
 Jog feed button.
 Control panel.
 Oil flood indicator.
 D1-8 spindle nose with 20 mm wide gears.
 16 steps, 2 speed motor from 30 to 1,500 RPM.
 Gear train is designed with a safety pin to protect from damage.
 Oil level indicator.
 Drip proof 10 HP spindle motor.
 One piece casting base.
 Mechanical foot brake is easy to adjust and maintain.
 Standard foot brake.
 Halogen light.
 With a 1:1 ratio for cross and longitudinal feed rate.
 Saddle locking screw for heavy cutting.
 Protective overload cone shape device.
 One-shot lube for apron and saddle.
 Machine bed with FC-30 casting iron.
 Multi-position length stop.
 Automotive painting process.
 Machine weighs in at an impressive 5,940 lbs.

 Standard Accessories:
 12" 3-jaw chuck
 12" 4-jaw chuck
 17" face plate
 Removable Gap Block
 Micrometer Stop
 Longitudinal Carraige Stop
 Steady rest (1.5" - 11.5")
 Chuck Guard with Emergency Stop
 4-way tool post
 Built-in Coolant system
 Full length splash guard
 Thread Chasing Dial
 Halogen work light
 Tool box with tools

 Optional Accessories (call for pricing):
 Aloris or Dorial Tool Posts and Holders
 Larger Chucks & Faceplates
 Four Position Carriage Stop
 5C Lever Operated Collet Closer
 5C Handwheel Type Collet Closer
 Taper Turning Attachment
 Newall or Sony 2 Axis Digital Readouts
