Reference Number: 137539

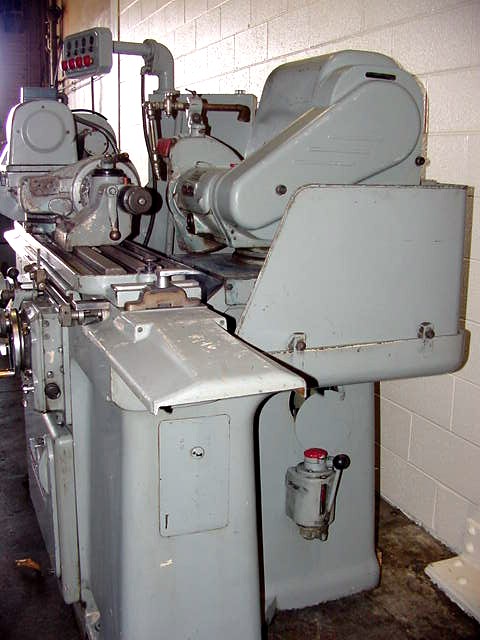

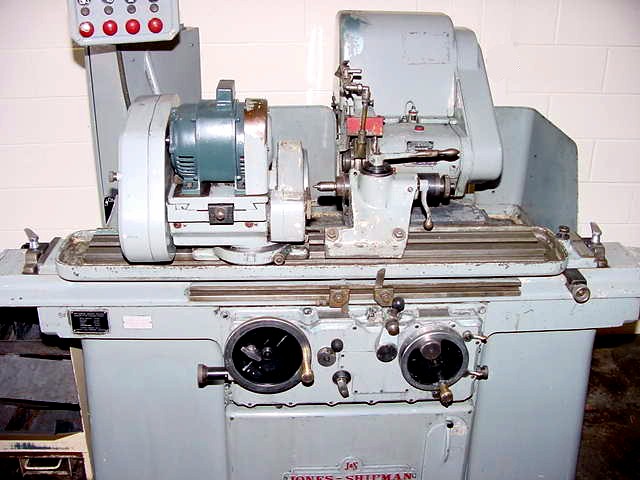

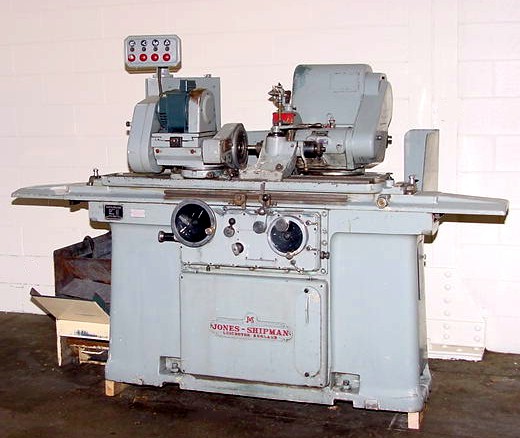

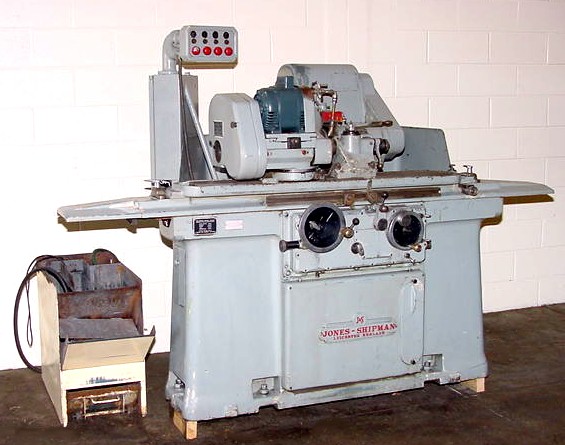

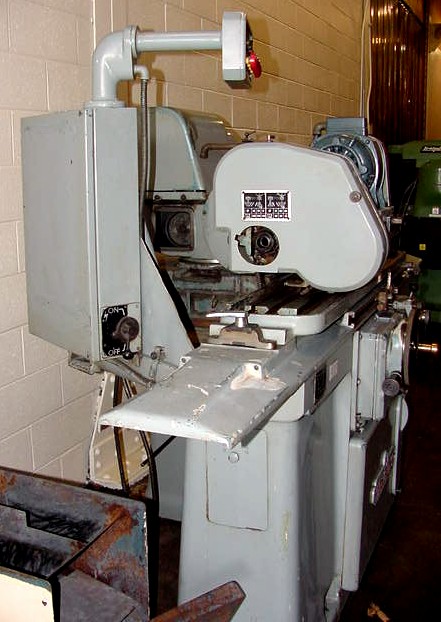

10" X 27" JONES & SHIPMAN (MADE IN U.K.) "HIGH PRECISION"Price: On Request
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

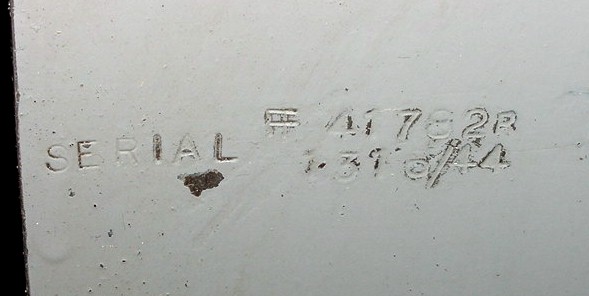

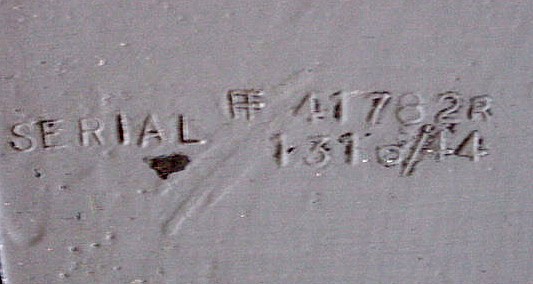

MODEL: 1300-EIU S/N: 47182 NEW: 1955
MAXIMUM SWING .................................... 10"
DISTANCE BETWEEN CENTERS .......................... 27"
TABLE SWIVEL ADJ., INCLUDED ANGLE CLOCKWISE ....... 14 DEG.
CCW ............. 14 DEG.
LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 3" TO 180" IPM

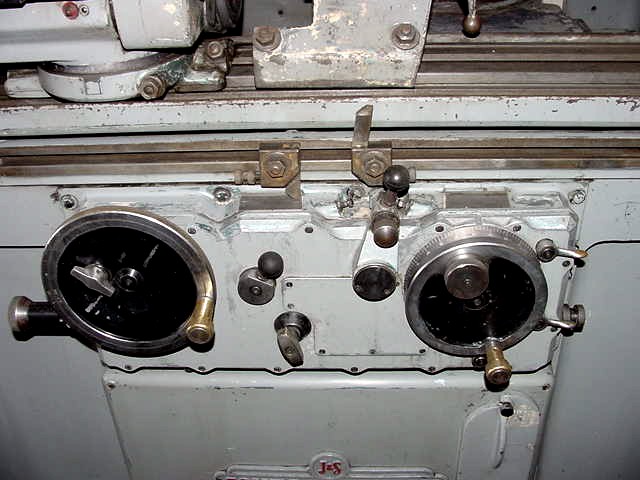

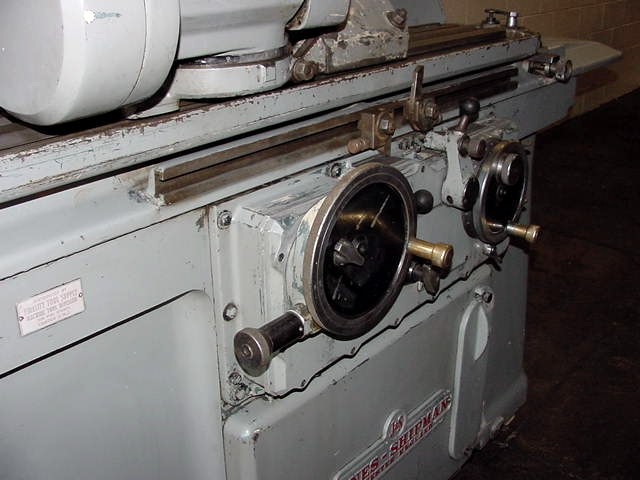

MANUAL TRAVERSE, HANDWHEEL PER REV. ............. 0.50"
FINE HAND TRAVERSE KNOB GRAD. ................. 0.0005"
WHEELHEAD:

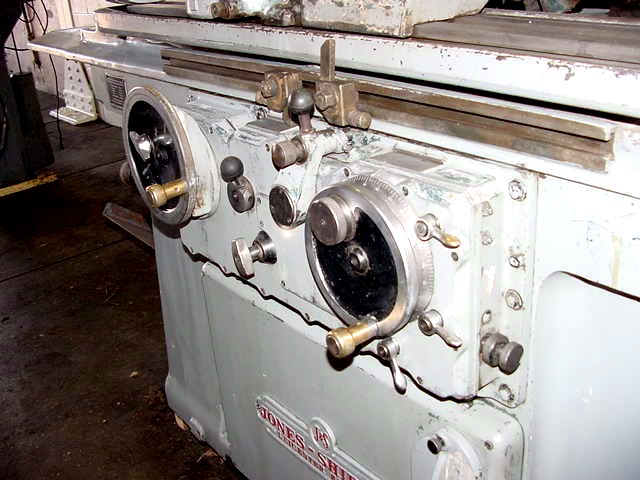

CROSS FEED HANDWHEEL GRAD. ................... 0.0002"
ONE DEPRESSION OF FINE FEED LEVER KNOB ....... 0.0001"
AUTO INFEED @ TABLE REVERSALS ...... 0.0001" TO .0006"
FEED @ REVERSAL OF TABLE,
REDUCTION IN DIAMETER .............. 0.0002" TO .0012"
CROSS TRAVERSE OF WHEELHEAD ....................... 7"

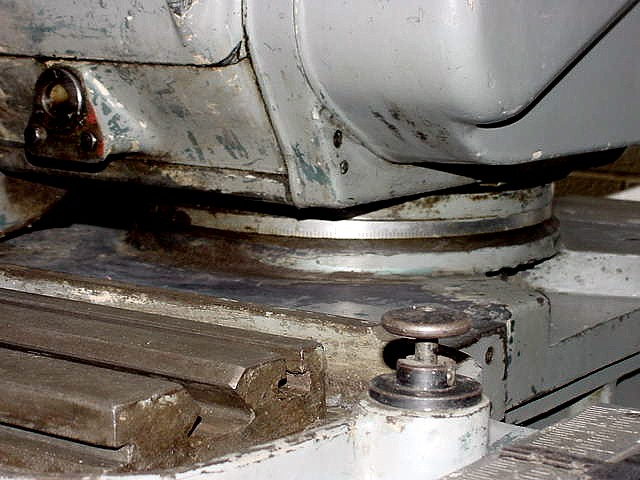

WHEELHEAD, SWIVELS, LEFT & RIGHT ......... 180 DEGREES
WHEEL SIZE ............................. 12" X 1" X 5"

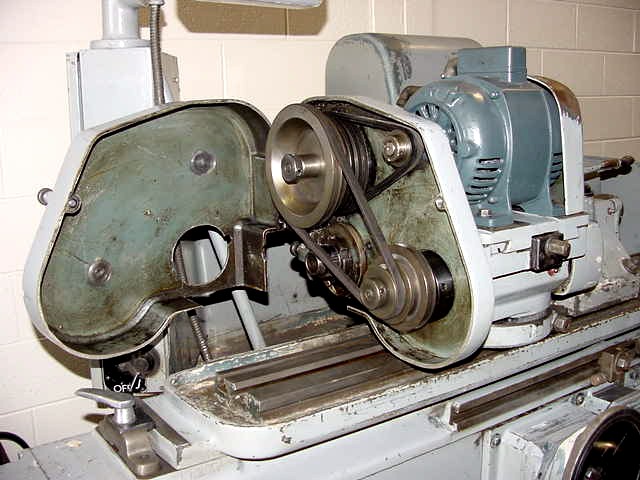

WHEEL SPEEDS (2) ................... 1,750 & 2,300 RPM
WHEELHEAD MOTOR ................................. 2 HP
INFINITELY VARIABLE WORKHEAD SPINDLE
SPEEDS ................................ 30 TO 300 RPM
WORKHEAD SPINDLE TAPER ........................... #3MT
APPROX. FLOOR SPACE REQUIRED ............... 134" X 54"
APPROX. MACHINE WEIGHT ...................... 4,600 LBS
MACHINE FEATURES:
"EIU" SINGLE SWIVEL WHEELHEAD DESIGN
HYDRAULIC OPERATION FEATURING:
- POWER TABLE TRAVERSE
- AUTO INFEED
FINE FEED MECHANISM FOR INFEED
FINE FEED KNOB FOR TABLE TRAVERSE
DUAL LIVE/DEAD WORKHEAD SPINDLE
EQUIPPED WITH:

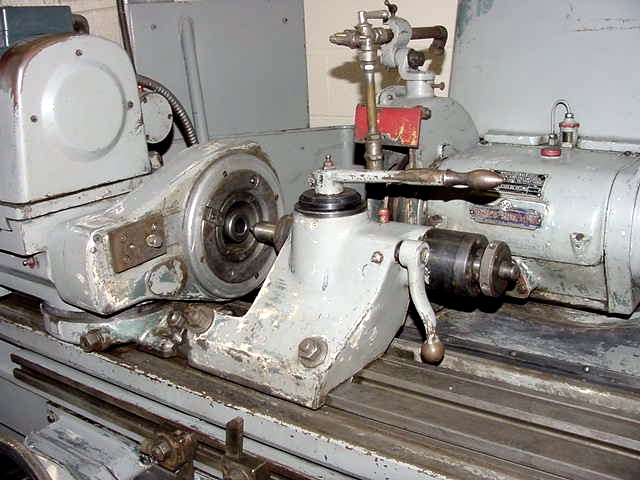

SWING AROUND I.D. GRINDING ATTACHMENT

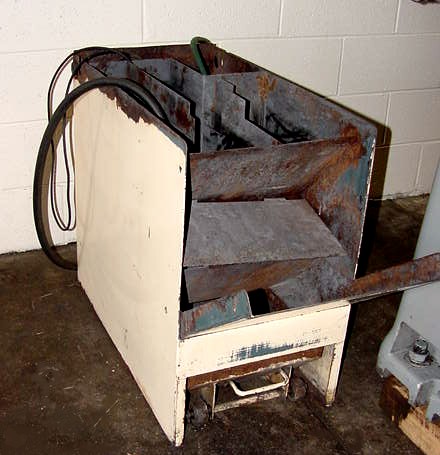

COOLANT SYSTEM (TANK, PUMP, ETC)
PRESENTLY WIRED FOR 3/60/440 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** VERY GOOD CONDITION & APPEARANCE **
