Reference Number: 137549

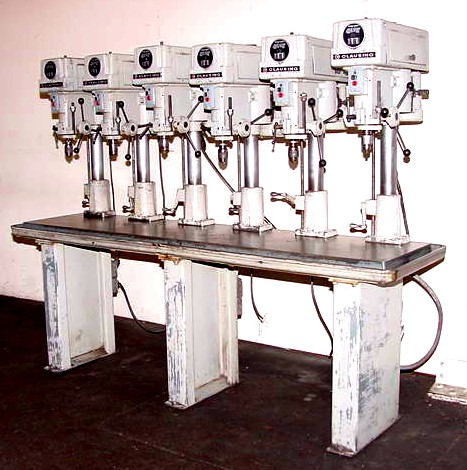

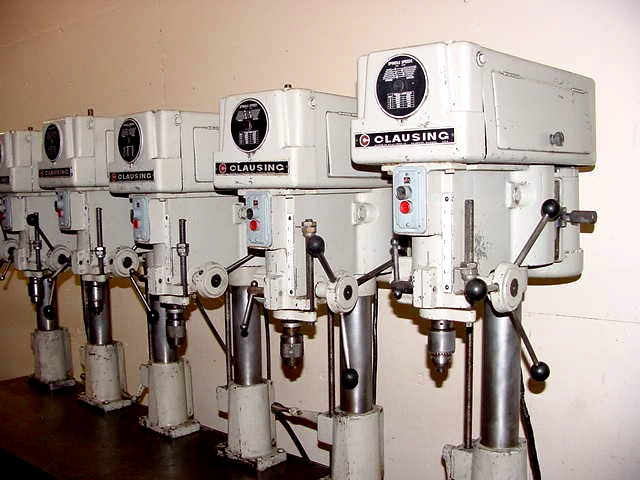

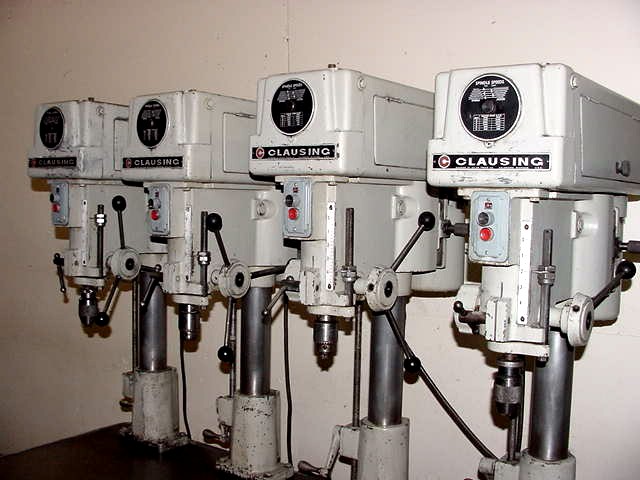

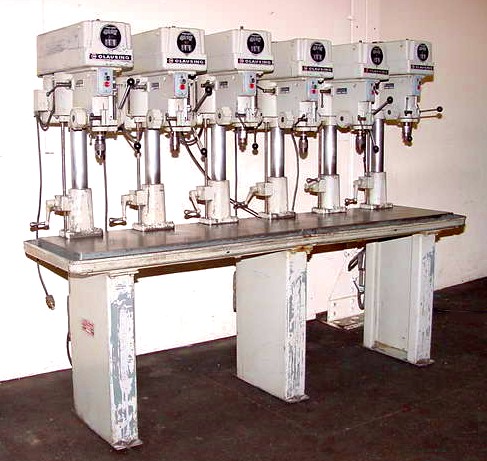

15" CLAUSING SIX SPINDLE DRILL PRESS,

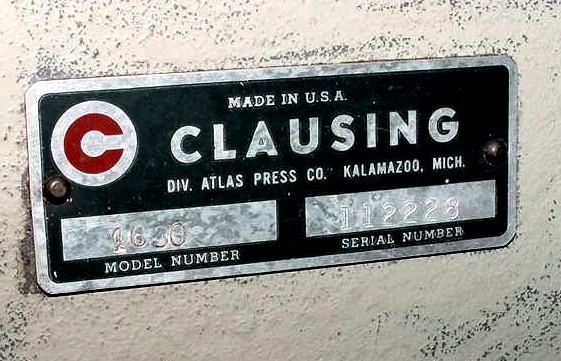

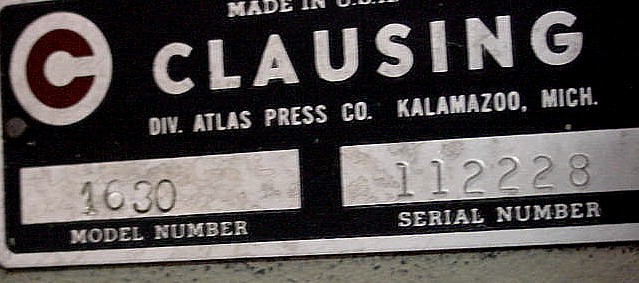

 MODEL: #1654, S/N: 112228-235, NEW: 1965

 SPECIFICATIONS:
 OVERALL SIZE OF TABLE .................. 25" X 95"
 TABLE WORKING SURFACE .................. 20" X 90"
 THROAT DEPTH ........................... 15"
 DRILLING CAPACITY, CAST IRON ........... 5/8"
     MILD STEEL ....................... 1/2"
 SPINDLE TAPER .......................... #33 JARNO
     FOR 1/2" CAPACITY DRILL CHUCKS
 SPINDLE TRAVEL ......................... 4-3/4"

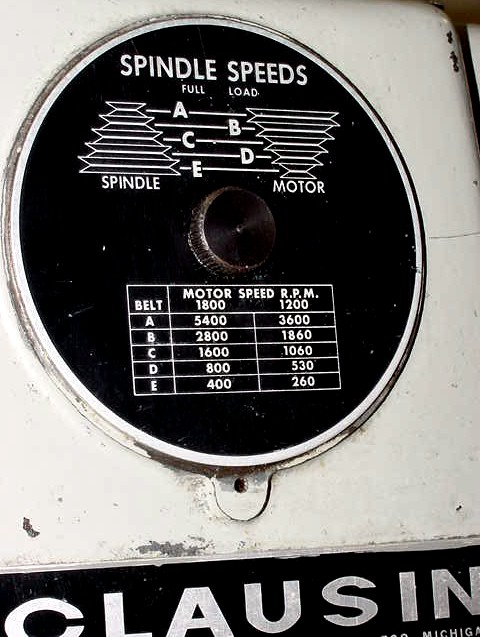

 SPINDLE SPEEDS (5) w/ STEP PULLEY DRIVE
     400, 800, 1,600, 2,800, & 5,400 RPM
 MAX DISTANCE, SPINDLE TO TABLE ......... 23"
 APPROXIMATE WEIGHT ..................... 2,150 LBS.

 EQUIPPED WITH:

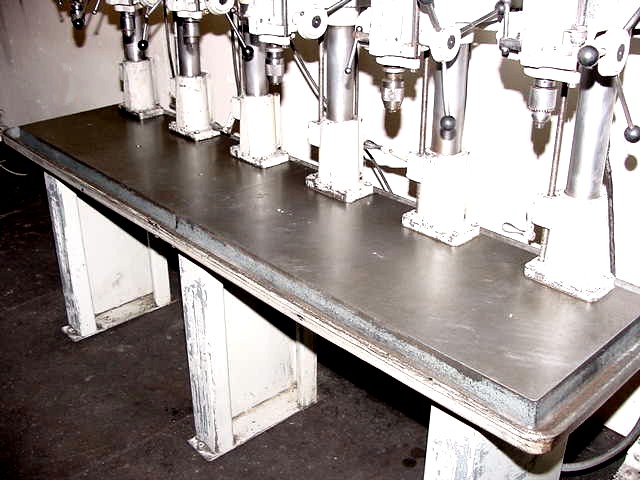

 - 25" X 95" PRODUCTION TABLE w/ TROUGH
 - MANUALLY OPERATED HEAD POSITIONING MECHANISMS FOR RAISING & LOWERING DRILLING
 - HEADS ON ROUND COLUMNS

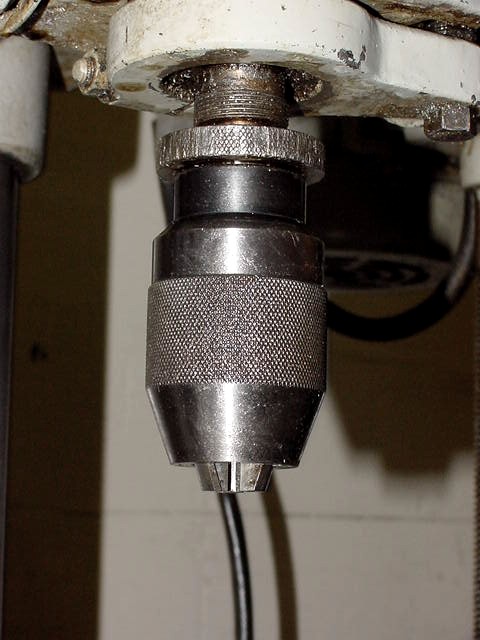

 - (3) 0-1/2" CAPACITY JACOBS DRILL CHUCKS
 - (3) 0-1/2" CAPACITY ALBRECHT DRILL CHUCKS

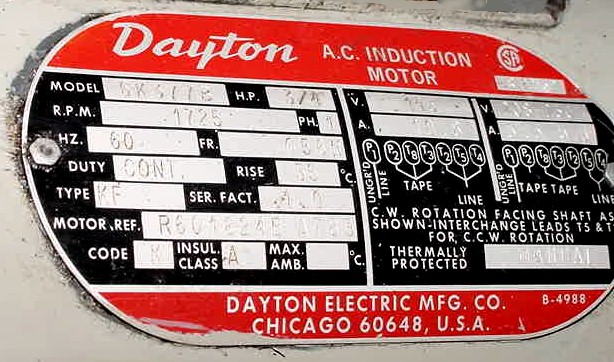

 - (6) 3/4 HP SINGLE PHASE DRIVE MOTORS w/ ELEC. CONTROLS
 - MACHINE IS WIRED FOR 230 VOLT OPERATION.

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
