Reference Number: 137618

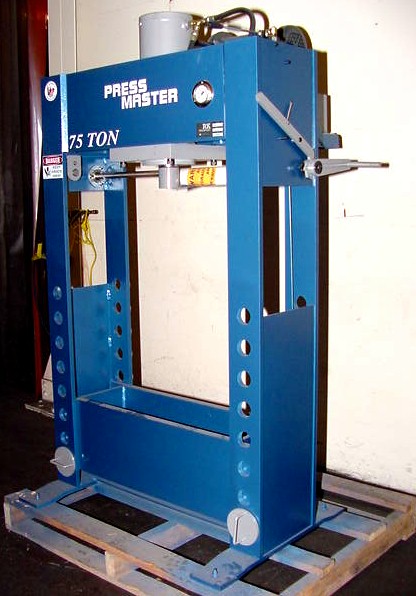

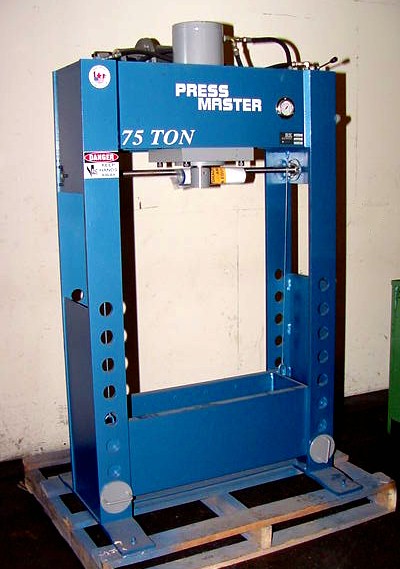

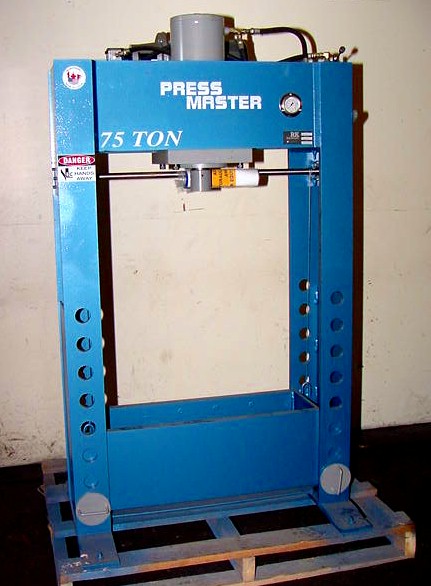

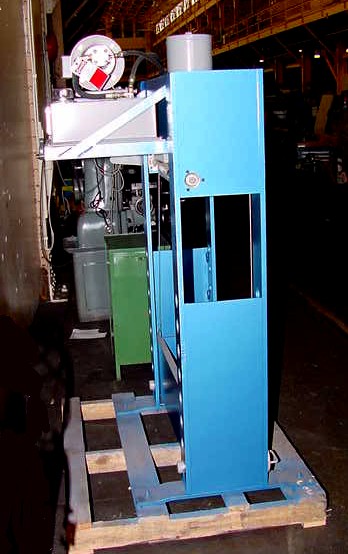

Price: $7,95075 TON PRESSMASTER H-FRAME HYDRAULIC PRESS RATED CAPACITY, TONNAGE........................... 75
MODEL: HFP-75T STANDARD
NEW - IN STOCK FOR IMMEDIATE DELIVERY
STROKE............................................ 12"
BORE.............................................. 7"
RAM SPEED (INCH/MIN.) ADVANCE..................... 8
PRESSING ................... 8
RETURN ..................... 12
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 12"
MAXIMUM DISTANCE FROM BED TO RAM ................. 31"
OVERALL HEIGHT ................................... 75"
OVERALL WIDTH .................................... 54"
OVERALL DEPTH .................................... 30"
WEIGHT ........................................... 2,000#
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS
EQUIPPED WITH:
- DOUBLE ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION
- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
PRESSING ACTION
- HEAVY DUTY STEEL STRUCTURE
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES

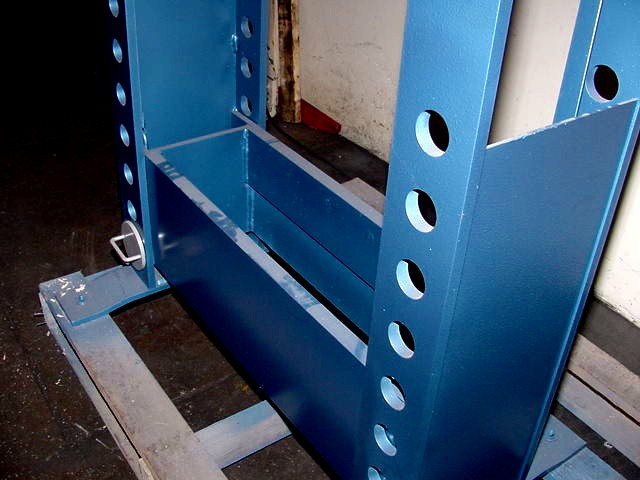

- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

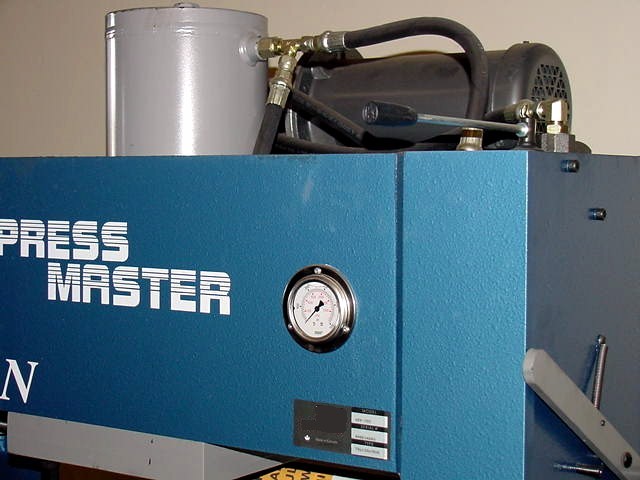

- PANEL MOUNTED PRESSURE GAUGE
- SAFETY VALVE FOR OVERLOAD PROTECTION

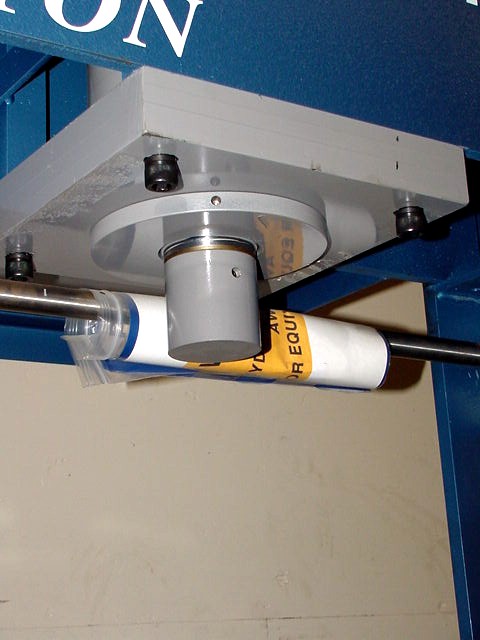

- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB
- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL
TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER
OPERATION

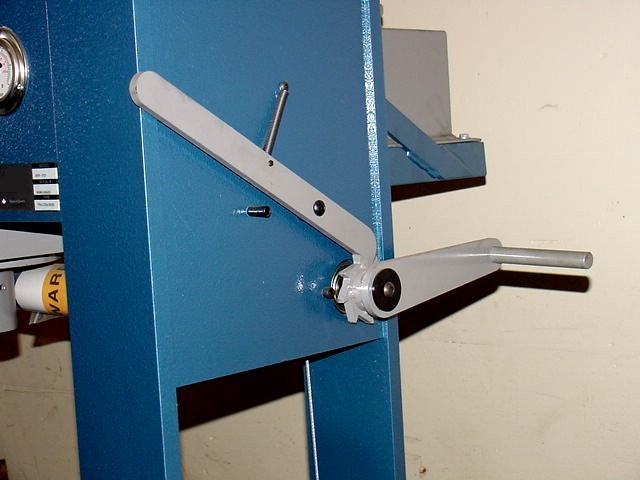

- SINGLE HAND LEVER OPERATION
- ISO-9002 CERTIFIED CYLINDER

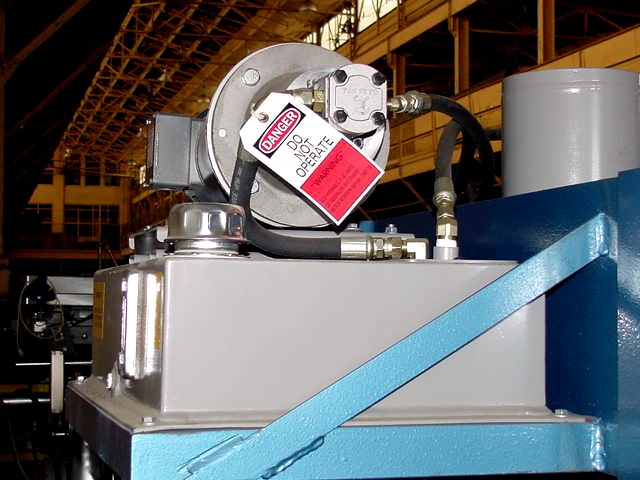

- LOW SPEED PUMP, QUIET AND DEPENDABLE

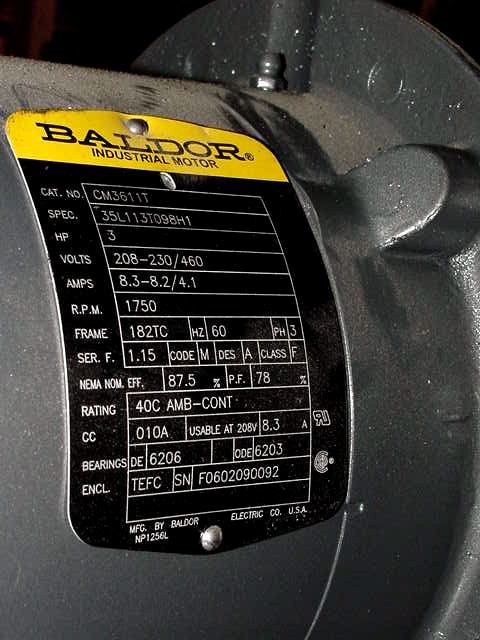

- BALDOR 3 HP, 230/460 VOLT MOTOR, THREE PHASE
- FULL ONE YEAR WARRANTY.
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
MACHINES IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
