Reference Number: 137655

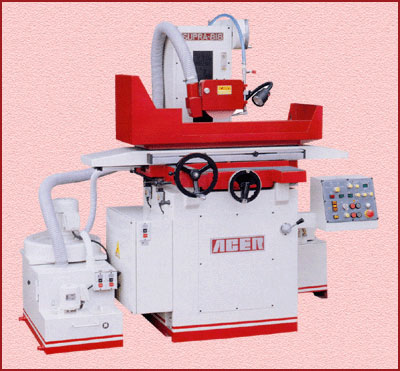

Price: $17,250ACER SUPRA 818AHD SURFACE GRINDER
3 HP, 3 AXIS AUTOMATIC w/IDF
SPECIFICATIONS:
Longitudinal Travel: 20"
Cross Feed Travel: 9-3/4"
Spindle Center to Table: 18"
Table Size: 8" x 18"
Wheel Speed: 3,450 RPM
Auto Increment Downfeed: 0.00005" - 0.002" (40 steps)
Grinding Wheel: 8" x 1/2" x 1-1/4"
Vertical Graduation: 0.0001" (Direct Dial)
Spindle Motor: 3 hp (V3)
T-Slot: 1" x 9/16"
Net Weight: 2,850 lbs.
FEATURES:
Dynamically balanced 3 HP spindle motor.
Front mount spindle with run-out withing 0.00008".
Overall flatness within 0.00012" at 8" x 18" grinding
capacity.
Revolutionary sensor triggering directional control valve.
Safety 24-volt, microprocessor controlled circuit.
Bello-type cover on crossfeed leadscrew.
Fully ribbed machine base and column.
Two speed rapid elevation control.
Precise stepping motor for downfeed increment control -
0.00005~0.002".
Recirculating auto lubrication system for all slideways and
leadscrews.
Auto-lube indicator.
9 position indexible table handwheel.
Special vacuum heat treated slideways at hardness up to HRC
62°.
Double-V lining crossfeed ways at 19.6" apart.
Ball-rolling table ways.
FC 25 high tensile iron weighing at 2,850 lbs.
Maximum work load at 520 lbs
STANDARD ACCESSORIES:
1 PC WHEEL BALANCING BASE 1 PC WHEEL BALANCING ARBOR
1 PC GRINDING WHEEL 1 PC WHEEL FLANGE
1 PC DIAMAOND DRESSER 1 PC HALOGEN WORK LIGHT
1 SET TOOLBOX WITH TOOLS 1 SET SPLASH GUARD
OPTIONAL ACCESSORIES (Call for Pricing):
ACER 8" X 18" PERMANENT MAGNETIC CHUCK
"WALKER" 8" X 18" PERM MAG. CHUCK (FINE POLE)
"WALKER" 8" X 18" ELECTRO FINE POLE CHUCK
W/VAR. CONTROL.
COOLANT SYSTEM W/ PAPER FILTER
COOLANT SYSTEM W/ MAGNETIC SEPERATOR &
PAPER FILTER:
PARALLEL DRESSER (OVERHEAD)
EXTRA WHEEL FLANGE:
NEWALL 2-AXIS DRO (8" X 18" TRAVEL,0.0001"
RESOLUTION):
SONY 2 AXIS DRO (8" X 18" TRAVEL, 0.00002"
RESOLUTION:
Special Package (add $2100) 8" x 18" Permanent Magnetic Chuck
Coolant System with Dust Suction
Parallel Dresser
