Reference Number: 137742

"NEW" SUPERTEC MODEL STP-1022A
 2-AXIS AUTOMATIC HYDRAULIC SURFACE GRINDER
 w/Power Elevation

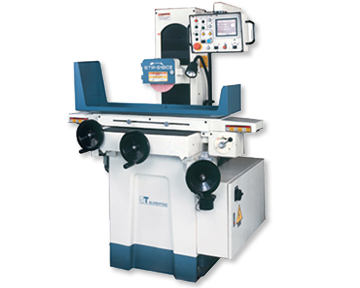

 NOTE:  PHOTO IS OF AN ADCII 3 AXIS AUTOMATIC MODEL

 FEATURES:
 - All essential castings are rib reinforced to provide a rigid machine
 structure for long lasting accuracy and stability.
 - The precision cartridge spindle is equipped with 4 preloaded
 class 7 (p4) super precision angular contact ball bearings to ensure
 high accuracy and superior grinding finish.
 - All guideways are Turcite-B coated and precisely hand scraped to
 provide smooth movement for better accuracy and longer way life.
 - The rigid wheelhead travels on wide-contact hardened and ground
 guideways.
 - Crossfeed mechanism incorporate with a precision leadscrew,
 AC inverter provides smooth, accurate crossfeed and allows criss-cross
 grinding for better workpiece finish.
 - Hydraulics, coolant systems are separated from machine to eliminate
 vibration and dissipate heat.
 - All moving surfaces and rotating parts are continuously lubricated
 by an auto-lube system to ensure long service life and maintain
 maximum accuracy. An alarm light will illuminate if oil pressure drops
 below required pressure.

 SPECIFICATIONS:
 GENERAL CAPACITY
 Table size:                                          8" x 20"
 Max. grinding length:                            21.7"
 Max. grinding width:                               8.3"
 Distance from table to spindle center:       6.3"
 Max. table load (include Chuck):             660 lbs
 Standard magnetic chuck size:               8" x 20"

 LONGITUDINAL MOVEMENT
 Manual traverse:                             24.4"
 Hydraulic traverse:                          22.4"
 Table speed (infinite variable):        10-82 fpm

 CROSS MOVEMENT
 Manual traverse:                            9.8"
 Rapid traverse:                         37.8 in/min.
 Auto increment feeds:               0.02" - 0.32"
 Handwheel
  - per graduation:                         0.001"
  - per revolution:                           0.2"

 VERTICAL DOWNFEED
 Rapid traverse:                          7½ in/min
 Handwheel
  - per graduation:                    0.0001"
  - per revolution:                     0.01"

 GRINDING WHEEL
 Wheel size:                       8"x 7/8"x 1.25" (D x W x Bore)
 Spindle speeds:                     3420 rpm

 MOTOR
 Spindle motor:                       3 HP
 Crossfeed motor:                   1/5 HP
 Elevating motor:                    1/4 HP
 Hydraulic motor:                    1 HP

 MACHINE
 Net weight (approx.):              2860 lbs
 Gross weight (approx.):           3300 lbs
 Packing Dimension:            73" x 58" x 84" (L x W x H)

 STANDARD ACCESSORIES:
 - Grinding wheel w/flange
 - Wheel extractor
 - Balancing arbor
 - Diamond dresser
 - Halogen lamp
 - Hydraulic system w/cooling fan
 - Leveling screws w/ blocks
 - Tool box w/adjusting tools
 - Operator's manual & parts lists
 - Splash guards

 OPTIONS, TOOLING AND ACCESSORIES (call for pricing):
 MAGNETIC CHUCKS AND CONTROL
  - Electromagnetic chuck (8" x 20")
  - Auto demagnetizer (for electric chuck)
  - Permanent magnetic chuck (8" x 20")
  - Manual demagnetizer (for permanent chuck use)
  - O.S. Walker ceramax permanent chuck (fine pole, 8" x 20")
  - O.S. Walker LBP (fine pole, 8" x 20")
  - Control for O.S. Walker chuck

 COOLANT SYSTEMS AND DUST COLLECTOR
  - Coolant system (58L capacity)
  - Coolant system (98L capacity)
  - Coolant system w/mag. sep. & paper filter (20L/min, 80L)
  - Coolant system w/mag. sep. & paper filter (60L/min, 140L)
  - Coolant system w/magnetic separator (20L/min, 58L)
  - Coolant system w/magnetic separator (40L/min, 98L)
  - Coolant system w/paper filter (20L/min, 80L)
  - Coolant system w/paper filter (60L/min, 140L)
  - Combine coolant & dust collector
  - Dust collector

 DRESSING ATTACHMENT
  - Manual parallel dressing attachment
  - Hydraulic parallel dressing attachment
  - Overhead parallel dress. w/auto compensation
  - Radius dressing attachment

 SONY DIGITAL READOUT SYSTEM
  - Two axis (Z & Y axis) digital readout
  - One axis (Elevating) digital readout

 OTHER ACCESSORIES
  - Balancing stand (straight type)
  - Balancing stand (roller type, 20")
  - Grinding wheel
  - Spare wheel flange
  - 460V Transformer
  - Variable spindle speeds for wheelhead by AC frequency control
