Reference Number: 137852

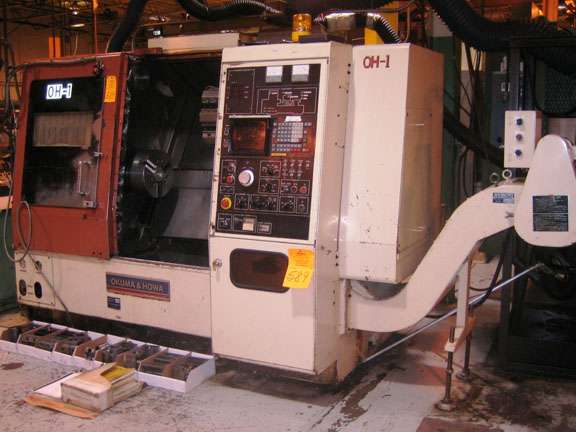

OKUMA & HOWA ACT-4Price: On Request
CNC SLANT BED LATHE
NEW: 1985
SERIAL NUMBER: 01132
Swing Over Bed ........................ 21.25"
Distance Between Centers .............. 29.52"
Maximum Turning Diameter .............. 13.77"
Maximum Turning Length ................ 28.74"
Spindle Speeds ........................ 30-3200 RPM
Spindle Nose .......................... A2-8
Spindle Hole .......................... 3.03"
Spindle Drive Motor ................... 30 HP / 25 HP
X-Axis Travel ......................... 8.85"
Z-Axis Travel ......................... 29.52"
Rapid Traverse ........................ 472.44 IPM
Floor Space ........................... 71" x 125"
Height ................................ 79"
Aproximate Weight ..................... 10,600 Lbs.
EQUIPPED WITH:

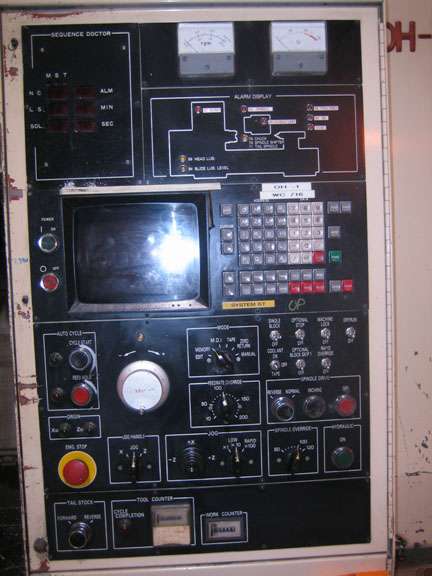

Fanuc 6TB CNC Control w/ CRT & RS-232 Port

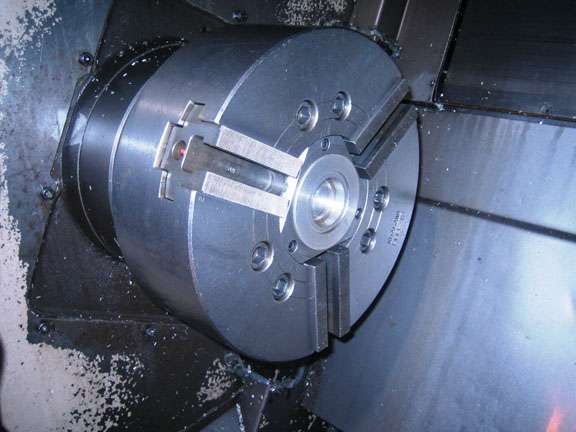

12" 3-Jaw Hydraulic Chuck

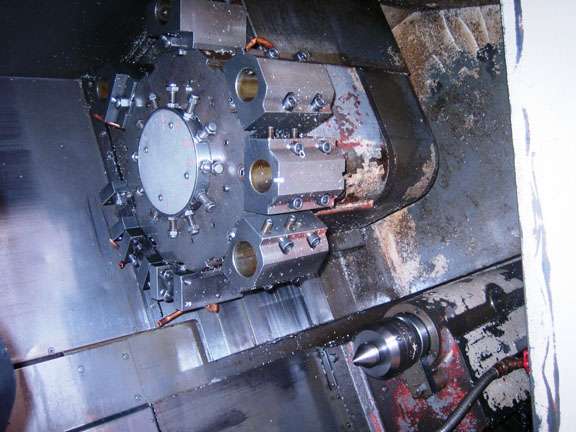

12-Position Turret
Hydraulic Tailstock
Enomoto Chip Conveyor
